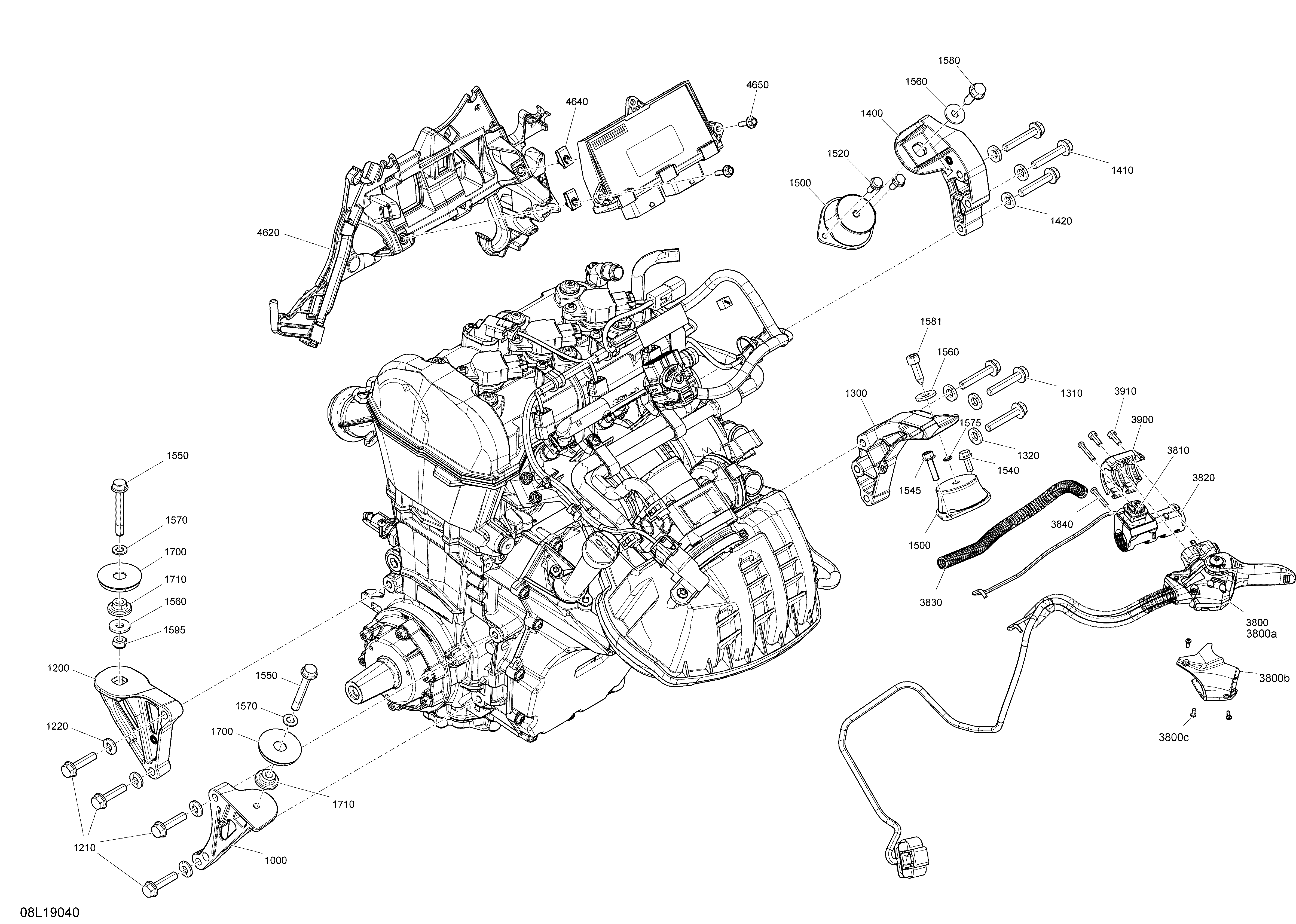

01- Engine для BRP Lynx 002 - 69 Ranger 900 ACE - 2019
-
№АртикулНазвание
-
1000512061139 Rear Support PTORear Support PTO
-
1200512061140 Front Support PTOFront Support PTO
-
1210207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
1220250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1300512061142 Rear Support MAGRear Support MAG
-
1310207584544 Hex. Flanged Screw M8 X 45, Scotch GripHex. Flanged Screw M8 X 45, Scotch Grip
-
1320250200157 Conical Spring Washer M8Conical Spring Washer M8
-
1400512061141 Front Support MAGFront Support MAG
-
1410207584544 Hex. Flanged Screw M8 X 45, Scotch GripHex. Flanged Screw M8 X 45, Scotch Grip
-
1420250200157 Conical Spring Washer M8Conical Spring Washer M8
-
1500512060729 Rubber MountRubber Mount
-
1520207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
1540207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
1545207562544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1550207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
1560503183200 Washer, YellowWasher, Yellow
-
1570250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
1575293300123 O-RingO-Ring
-
1580250000257 Cone Screw, M8 X 30Cone Screw, M8 X 30
-
1581250000639 Cone Screw, M8 X 25Cone Screw, M8 X 25
-
1595232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1700512060826 StopperStopper
-
1710512060285 SpacerSpacer
-
3800512061256 Housing Ass'yHousing Ass'y
-
3800a415130047 Handle Ass'y kitHandle Ass'y kit
-
3800b512060862 CapCap
-
3800c250000623 Torx Screw M2.9 x 9.5Torx Screw M2.9 x 9.5
-
3810515177362 Emergency Stop SwitchEmergency Stop Switch
-
3820512060844 SupportSupport
-
3830515177946 Protector TubeProtector Tube
-
3840250000263 Torx Screw #8-18Torx Screw #8-18
-
3900512060987 Front HousingFront Housing
-
3910250000632 Torx Screw M5 X 14Torx Screw M5 X 14
-
4620512060994 Module SupportModule Support
-
4640250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
4650207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
