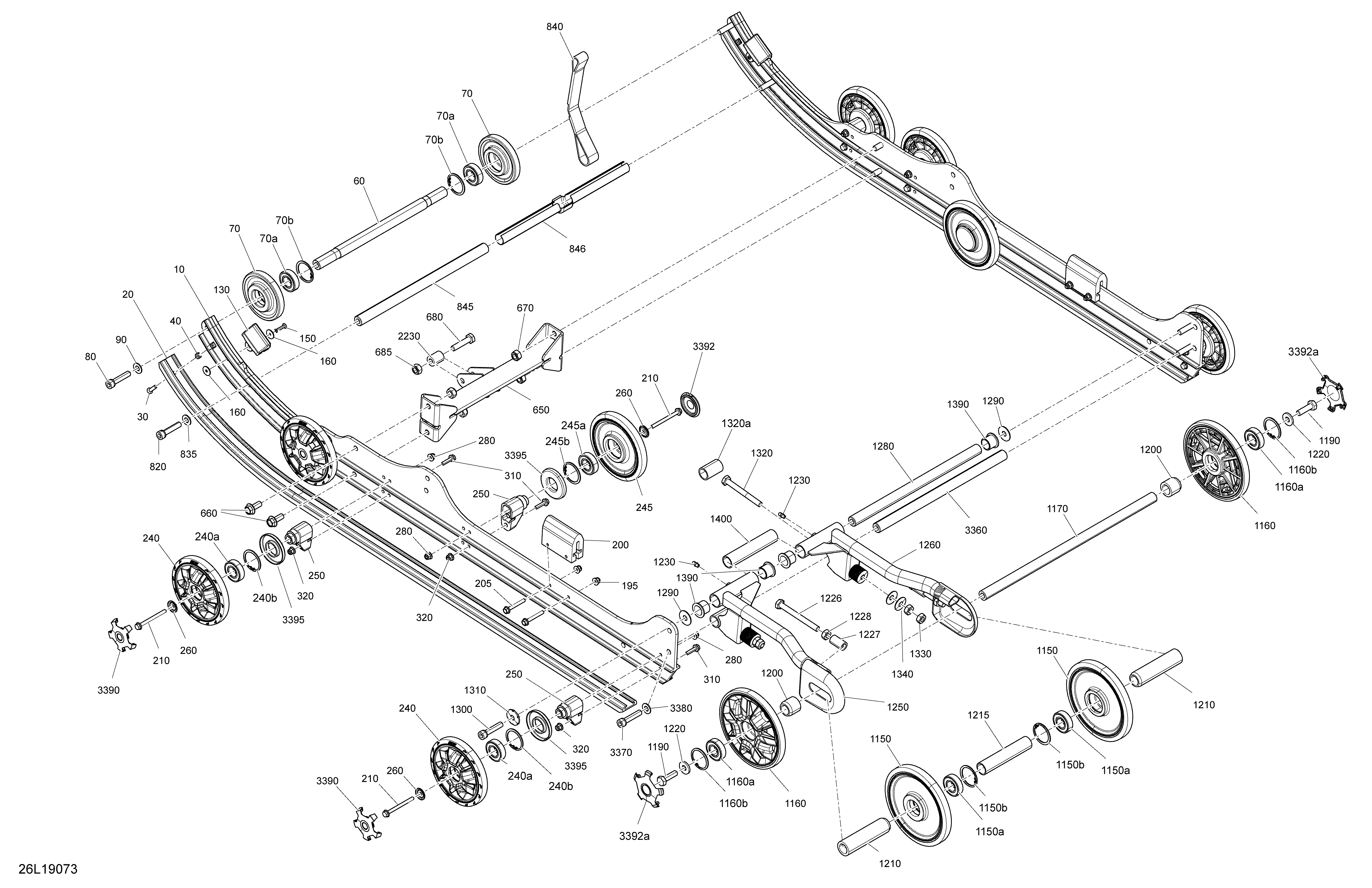

08- Rear Suspension_Lower Parts для BRP Lynx 002 - 69 Ranger 900 ACE - 2019
-
№АртикулНазвание
-
10503192888 Runner. 69RANGER_STDRunner. 69RANGER_STD
-
20503192843 Black, Slider Shoe. 69RANGER_STDBlack, Slider Shoe. 69RANGER_STD
-
30208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
40232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
60503192889 Front Wheel ShaftFront Wheel Shaft
-
70503192611 Black Wheel Ass'y, 100 mm. Includes 70 to 70bBlack Wheel Ass'y, 100 mm. Includes 70 to 70b
-
70a503190396 Ball BearingBall Bearing
-
70b503191311 Black, Wheel Ass'y 147 mmBlack, Wheel Ass'y 147 mm
-
80205504544 Socket ScrewSocket Screw
-
90234001410 Flat Washer 10 mmFlat Washer 10 mm
-
130503193504 Rubber StopperRubber Stopper
-
150293150224 Rivet Pop 3/16Rivet Pop 3/16
-
160503191273 WasherWasher
-
195233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
200570023100 Rubber StopperRubber Stopper
-
205207664554 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
210207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
240503193734 Wheel-141mm. Includes 240 to 240bWheel-141mm. Includes 240 to 240b
-
240a503190396 Ball BearingBall Bearing
-
240b415129371 Retaining RingRetaining Ring
-
245503191316 Black - Wheel Ass'y 141 mm. Includes 245 to 245bBlack - Wheel Ass'y 141 mm. Includes 245 to 245b
-
245a503190396 Ball BearingBall Bearing
-
245b415129371 Retaining RingRetaining Ring
-
250503193894 Casted SupportCasted Support
-
260503191820 Wheel Cup M6Wheel Cup M6
-
280233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
310207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
320233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
650503193182 Lower Support, Center ShockLower Support, Center Shock
-
660250001026 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
670232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
680207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
685232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
820205504544 Socket ScrewSocket Screw
-
835234001410 Flat Washer 10 mmFlat Washer 10 mm
-
840503193780 Limiter Strap. 69RANGER_STDLimiter Strap. 69RANGER_STD
-
845503192927 Shaft PassivatedShaft Passivated
-
846503195144 Limiter Strap HolderLimiter Strap Holder
-
1150503192140 Black, Wheel Ass'y, 165 mm. 69RANGER_STDBlack, Wheel Ass'y, 165 mm. 69RANGER_STD
-
1150a503190396 Ball Bearing. 69RANGER_STDBall Bearing. 69RANGER_STD
-
1150b415129371 Retaining Ring. 69RANGER_STDRetaining Ring. 69RANGER_STD
-
1160503193809 Wheel 165mm. 69RANGER_STDWheel 165mm. 69RANGER_STD
-
1160a503190396 Ball BearingBall Bearing
-
1160b415129371 Retaining RingRetaining Ring
-
1170503193352 Rear Shaft. PPSRear Shaft. PPS
-
1190250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
1200503192048 Spacer. PPS-ASpacer. PPS-A
-
1210503192671 Spacer. PPS-ASpacer. PPS-A
-
1215605448429 Sleeve. PPS-ASleeve. PPS-A
-
1220503190439 WasherWasher
-
1226230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
1227503192696 Spacer. PPS-ASpacer. PPS-A
-
1228232006414 Hex. Nut M10 X 1.5. PPS-AHex. Nut M10 X 1.5. PPS-A
-
1230408200700 Grease Fitting. PPS-AGrease Fitting. PPS-A
-
1250503194592 LH Extension Swing. PPS-A&TUNNEL600LH Extension Swing. PPS-A&TUNNEL600
-
1260503194593 RH Extension Swing. PPS-A&TUNNEL600RH Extension Swing. PPS-A&TUNNEL600
-
12805347713 Lower Shaft, Front Arm. PPS-ALower Shaft, Front Arm. PPS-A
-
129020116 Shim. PPS-AShim. PPS-A
-
1300250001025 Screw-Socket M10 X 50 S.Grip. PPS-AScrew-Socket M10 X 50 S.Grip. PPS-A
-
1310512056700 Lock Washer. PPS-ALock Washer. PPS-A
-
1320503192695 Adjustment Screw. PPS-AAdjustment Screw. PPS-A
-
1320a5447372 SpacerSpacer
-
1330232006414 Hex. Nut M10 X 1.5. PPS-AHex. Nut M10 X 1.5. PPS-A
-
134025004 Cup Spring. PPS-ACup Spring. PPS-A
-
139031024 Cushion. PPS-ACushion. PPS-A
-
1400605448429 Sleeve. PPS-ASleeve. PPS-A
-
22305446652 Bushing. 69RANGERBushing. 69RANGER
-
3360503192927 Shaft PassivatedShaft Passivated
-
3370205504544 Socket Screw. PPSSocket Screw. PPS
-
3370250001025 Screw-Socket M10 X 50 S.Grip. PPS-AScrew-Socket M10 X 50 S.Grip. PPS-A
-
3380234001410 Flat Washer 10 mmFlat Washer 10 mm
-
3390503195345 Black, Wheel Cap. 69RANGERBlack, Wheel Cap. 69RANGER
-
3392503192771 Black, Wheel Cap. 69RANGER_ALPINEBlack, Wheel Cap. 69RANGER_ALPINE
-
3392a503195348 Black, Wheel Cap. 69RANGER_STDBlack, Wheel Cap. 69RANGER_STD
-
3395503190434 Labyrinth SealLabyrinth Seal
