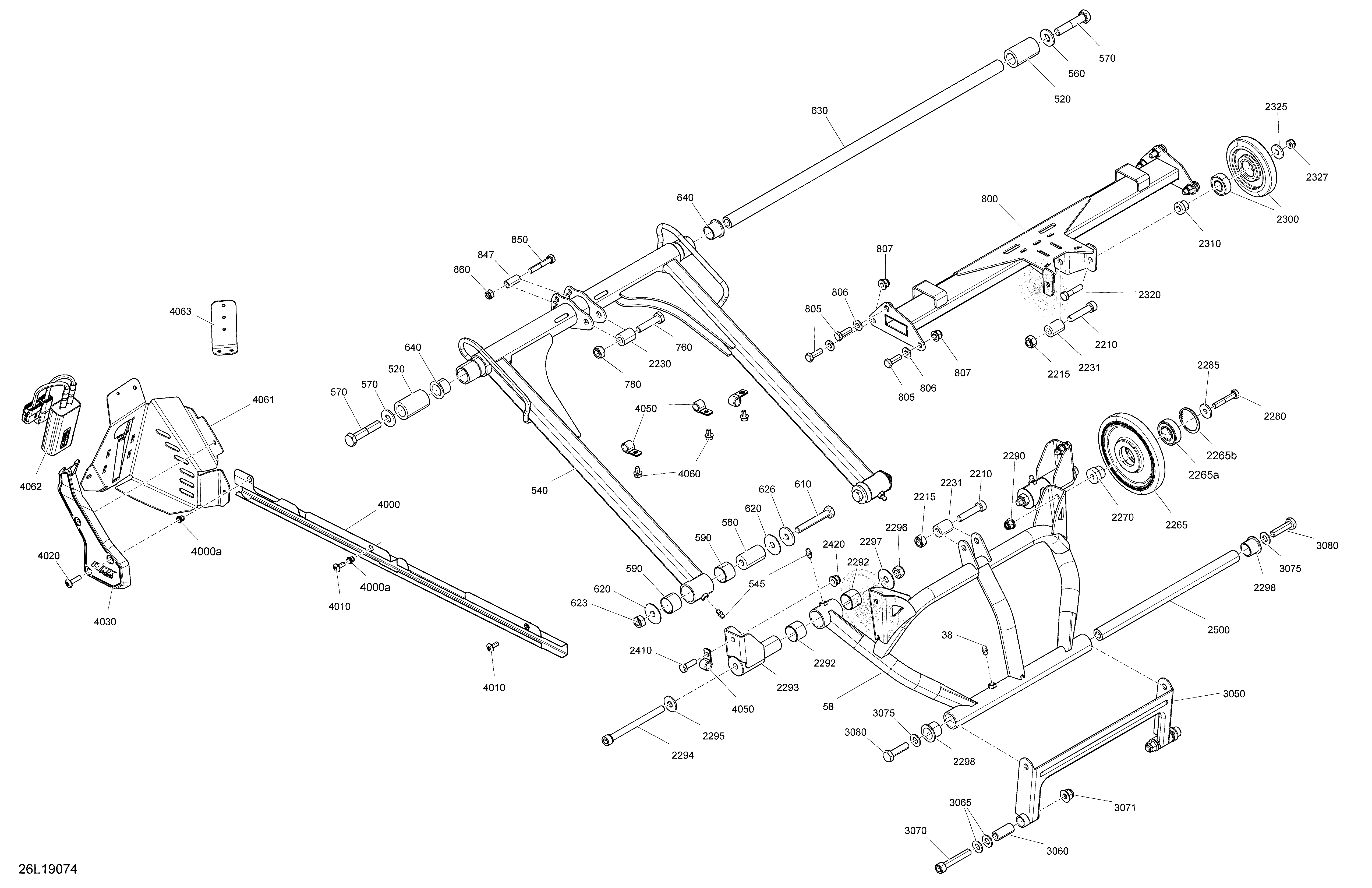

08- Rear Suspension_Upper Parts для BRP Lynx 002 - 69 Ranger 900 ACE - 2019
-
№АртикулНазвание
-
520503193309 Sleeve. 69RANGER_STDSleeve. 69RANGER_STD
-
540503193092 Front Arm. ECS2Front Arm. ECS2
-
545408200700 Grease FittingGrease Fitting
-
560250200131 Washer-spring ConicalWasher-spring Conical
-
570250000555 Hexagonal ScrewHexagonal Screw
-
580605354157 ShaftShaft
-
590503193700 BushingBushing
-
610207007044 Hex. Screw M10 X 70Hex. Screw M10 X 70
-
620605355801 WasherWasher
-
623232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
626503183300 WasherWasher
-
630503193174 Upper Shaft Front Arm. TUNNEL_600Upper Shaft Front Arm. TUNNEL_600
-
64031024 CushionCushion
-
760207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
780232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
800503192687 Middle Beam. 69RANGER_STDMiddle Beam. 69RANGER_STD
-
805250000556 Hexagonal ScrewHexagonal Screw
-
806503192494 WasherWasher
-
807233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
847605455335 SleeveSleeve
-
850207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
860232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
2210205004544 Socket Head Screw DIN 912Socket Head Screw DIN 912
-
2215232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
22315446652 Bushing. STD_SHOCKSBushing. STD_SHOCKS
-
2265503193852 Idler Wheel. Includes 2265 to 2265bIdler Wheel. Includes 2265 to 2265b
-
2265a503190396 Ball BearingBall Bearing
-
2265b415129371 Retaining RingRetaining Ring
-
2270605454461 SleeveSleeve
-
2280207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
228520077 M8 WasherM8 Washer
-
2290233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2292503193700 BushingBushing
-
2293503194384 Rear Arm Support. TUNNEL_600Rear Arm Support. TUNNEL_600
-
2294250000543 Socket Screw M10 X 120. TUNNEL_600Socket Screw M10 X 120. TUNNEL_600
-
2295503191926 WasherWasher
-
2296232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
2297605355801 WasherWasher
-
229831024 CushionCushion
-
2300572043500 Idler WheelIdler Wheel
-
2310503193330 SleeveSleeve
-
2320207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
232520077 M8 WasherM8 Washer
-
2327232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
2410250000556 Hexagonal Screw. TUNNEL_600Hexagonal Screw. TUNNEL_600
-
2420233281414 Hex. Flanged Elastic Nut M8. TUNNEL_600Hex. Flanged Elastic Nut M8. TUNNEL_600
-
2500503192397 ShaftShaft
-
3050503192346 Rear Swing. 69RANGER_STDRear Swing. 69RANGER_STD
-
3060503192341 Shaft, Rear SwingShaft, Rear Swing
-
3065234001410 Flat Washer 10 mmFlat Washer 10 mm
-
3070205006044 Socket Screw M10 X 60Socket Screw M10 X 60
-
3071233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
3075234001410 Flat Washer 10 mmFlat Washer 10 mm
-
3080207204044 Hexagonal ScrewHexagonal Screw
-
4000503194949 Cable Cover. ECS2-1. Includes 4000 to 4000aCable Cover. ECS2-1. Includes 4000 to 4000a
-
4000a605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
4010250000721 Torx Truss Screw M6 X 16. ECS_ALLTorx Truss Screw M6 X 16. ECS_ALL
-
4020250000807 Torx Truss Screw M6 X 25. ECS_ALLTorx Truss Screw M6 X 25. ECS_ALL
-
4030503194033 Cable Cover. ECS_ALLCable Cover. ECS_ALL
-
4050518321570 Open Clamp. ECS2Open Clamp. ECS2
-
4060210261040 Hex. Flanged Screw M6 X 10. TUNNEL600&ECS2Hex. Flanged Screw M6 X 10. TUNNEL600&ECS2
-
4061518330469 Black, LH Toe HookBlack, LH Toe Hook
-
4062515177780 Control BoxControl Box
-
4063515177944 Wire Support PlateWire Support Plate
