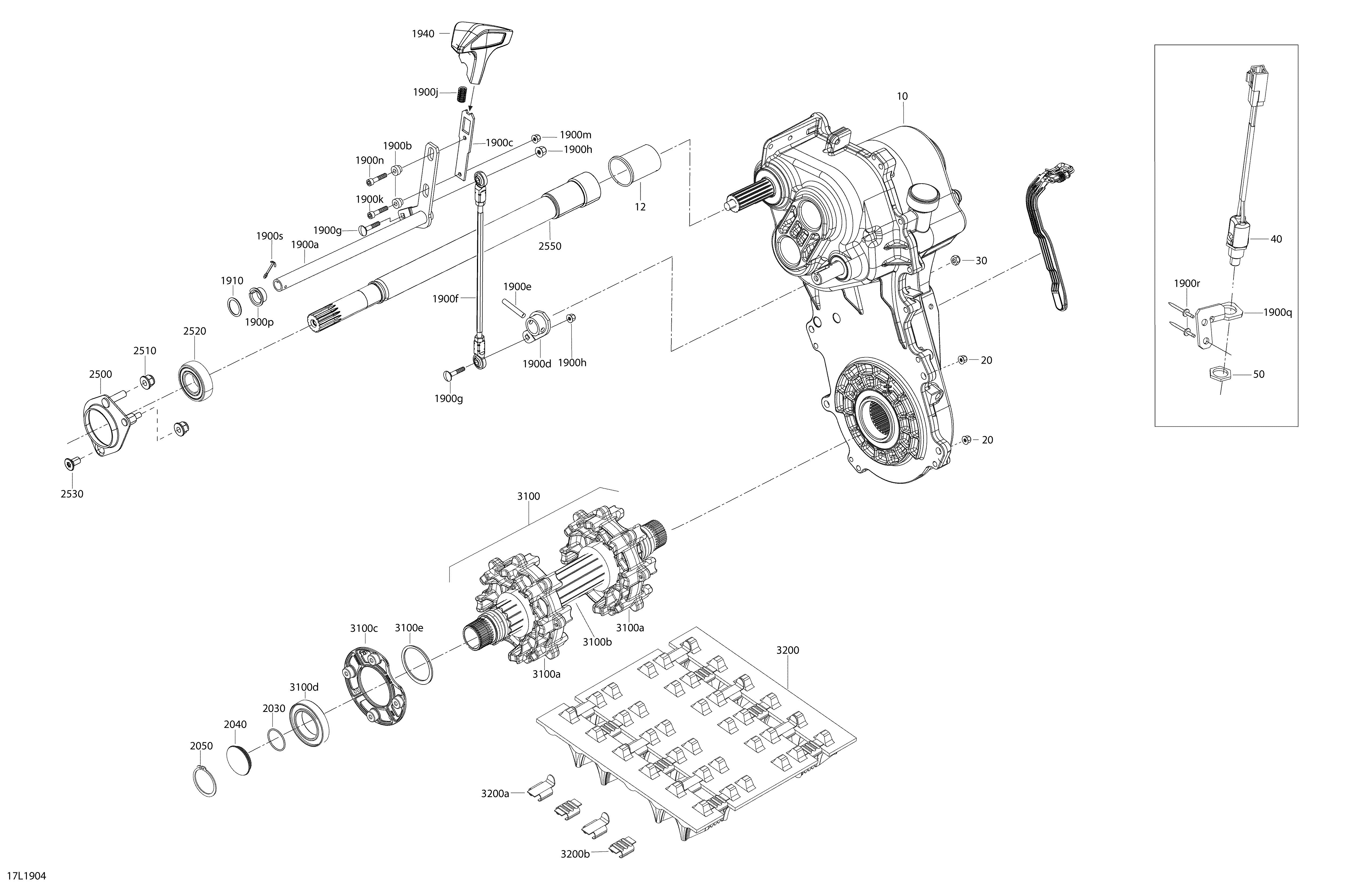

05- Drive Train - Yeti - 600 ACE для BRP Lynx 001 - 59 YETI 600 ACE - 2019
-
№АртикулНазвание
-
10619230077 Transmission Ass'y (Slow Ratio). Includes 10 to 10acTransmission Ass'y (Slow Ratio). Includes 10 to 10ac
-
12504153568 Protective RubberProtective Rubber
-
20233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
30232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
40515176472 Switch Ass'ySwitch Ass'y
-
50250000373 Brass NutBrass Nut
-
1900a504153288 Lever ShifterLever Shifter
-
1900b504152787 SleeveSleeve
-
1900c504153287 Shifter ArmShifter Arm
-
1900d504153280 Welded LeverWelded Lever
-
1900e41012 PinPin
-
1900f504153258 Shifter RodShifter Rod
-
1900g250000677 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
1900h232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
1900j504152882 SpringSpring
-
1900k205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
1900m233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
1900n250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
1900p504152890 BearingBearing
-
1900q504152902 Sensor BracketSensor Bracket
-
1900r293150163 Rivet HucklokRivet Hucklok
-
1900s250400035 Cotter PinCotter Pin
-
1910503189273 WasherWasher
-
1940504152837 HandleHandle
-
2030293300122 O-RingO-Ring
-
2040504152619 Magnetic CapMagnetic Cap
-
2050504152572 CirclipCirclip
-
2500504153187 Bearing HousingBearing Housing
-
2510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2520293350074 Ball BearingBall Bearing
-
2530235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
2550504152963 Counter ShaftCounter Shaft
-
3100504153583 Drive Axle Ass'y. Includes 3100 to 3100eDrive Axle Ass'y. Includes 3100 to 3100e
-
3100a504153087 Sprocket, 7 TeethSprocket, 7 Teeth
-
3100a504153088 Sprocket, 7 TeethSprocket, 7 Teeth
-
3100b504152873 Axle-driveAxle-drive
-
3100c504153426 Retaining RingRetaining Ring
-
3100d293350059 Ball BearingBall Bearing
-
3100e504153207 ShimShim
-
3200504152817 Track Ass'yTrack Ass'y
