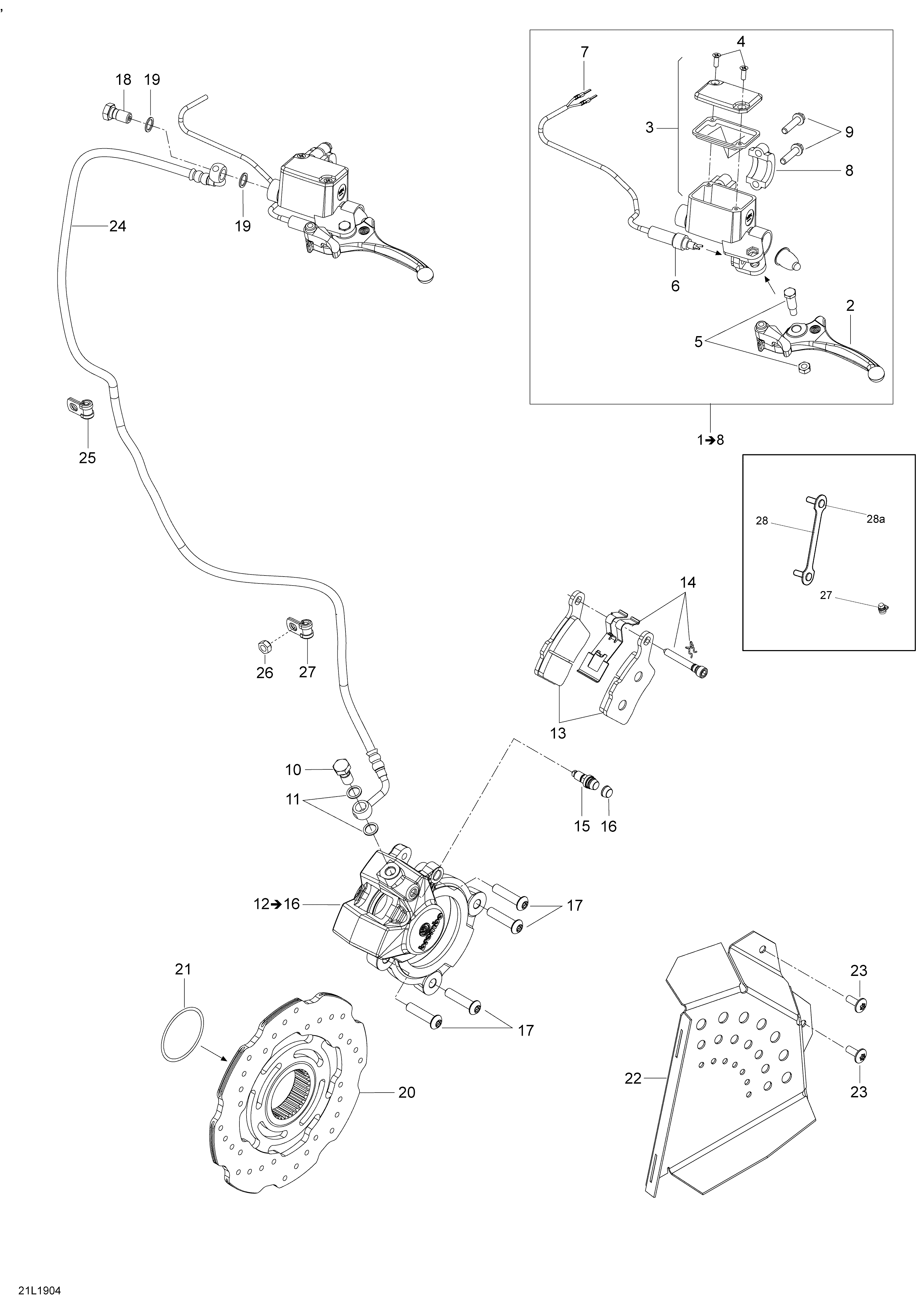

06- Brakes - 59 YETI - 600 ACE для BRP Lynx 001 - 59 YETI 600 ACE - 2019
-
№АртикулНазвание
-
1507032596 Master Cylinder Ass'y. Includes 1 to 6Master Cylinder Ass'y. Includes 1 to 6
-
2507032476 LeverLever
-
60507032477 Clamp And Screw Kit. Includes 60 to 60aClamp And Screw Kit. Includes 60 to 60a
-
60a250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
3507032478 Master Cylinder Reservoir Ass'y. Includes 3 to 4Master Cylinder Reservoir Ass'y. Includes 3 to 4
-
4415129356 Screw M4 X 20Screw M4 X 20
-
5415030000 Pin Ass'yPin Ass'y
-
6507032592 MicroswitchMicroswitch
-
8719000049 Clamps KitClamps Kit
-
9250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
10507032551 Banjo BoltBanjo Bolt
-
11705601628 Copper WasherCopper Washer
-
12507032602 Brake Caliper Assembly. Includes 12 to 15Brake Caliper Assembly. Includes 12 to 15
-
13507032473 Brake Pads KitBrake Pads Kit
-
14507032474 Pin, Clip & Spring KitPin, Clip & Spring Kit
-
15507032475 BleederBleeder
-
17250000764 Hex. Button Head Screw M8 X 1.25 X 35Hex. Button Head Screw M8 X 1.25 X 35
-
18507032551 Banjo BoltBanjo Bolt
-
19705601628 Copper WasherCopper Washer
-
20507032513 DiskDisk
-
21293300209 O-ringO-ring
-
22507032537 Disk ProtectorDisk Protector
-
23233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
24507032548 Hose, Steel BraidedHose, Steel Braided
-
25414108400 Open ClampOpen Clamp
-
26233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
27293900129 Hexagonal CapHexagonal Cap
-
28518328661 Counter Plate. Includes 28 to 28aCounter Plate. Includes 28 to 28a
-
28a250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
