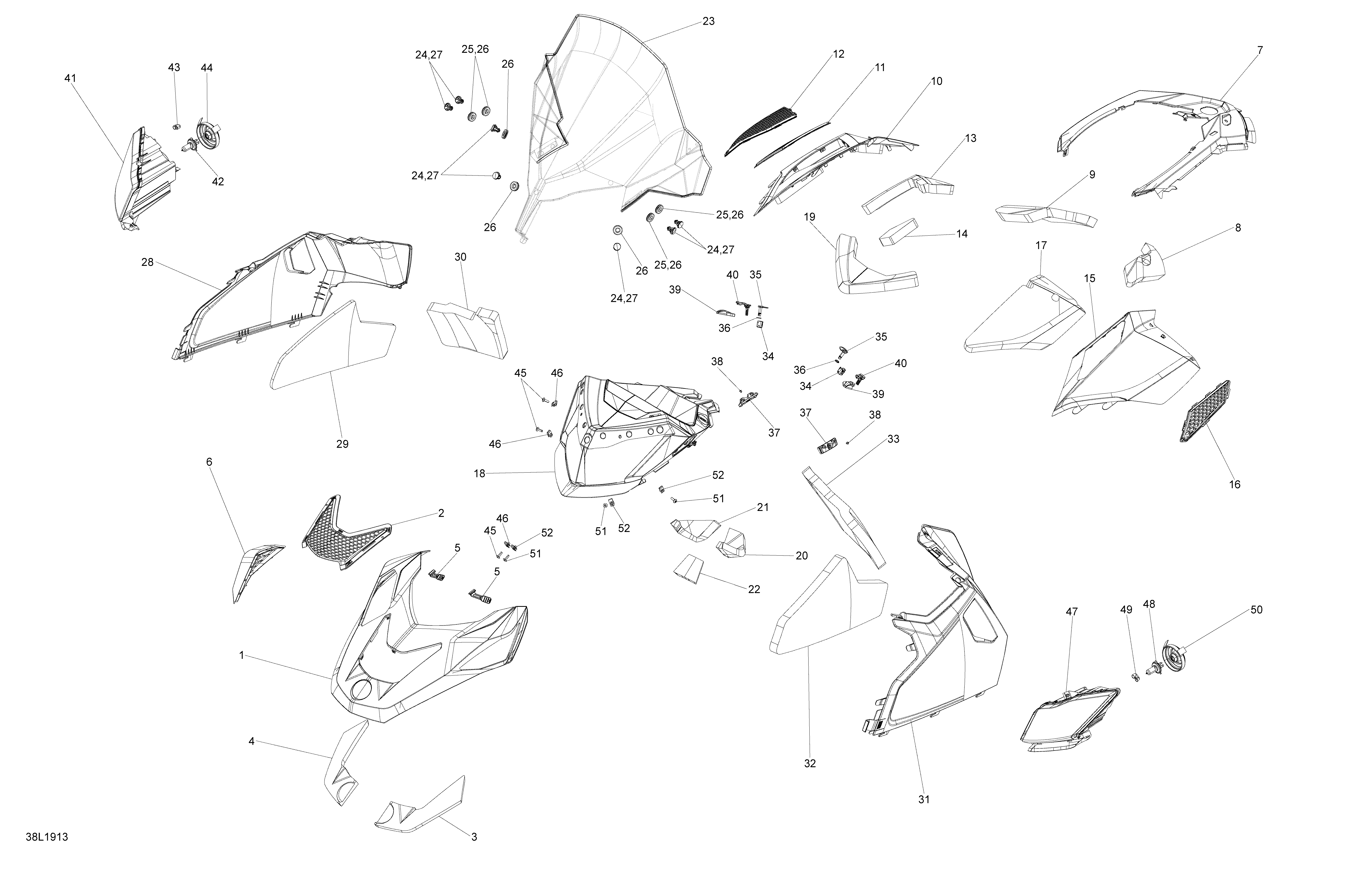

09- Hood - 59 YETI - 600 ACE для BRP Lynx 001 - 59 YETI 600 ACE - 2019
-
№АртикулНазвание
-
1517304810 HoodHood
-
2517304843 Hood GrillHood Grill
-
3517304330 InsulatorInsulator
-
4517304214 InsulatorInsulator
-
5517304289 Latch PannelLatch Pannel
-
6517304855 Intake GrillIntake Grill
-
7517305609 ConsoleConsole
-
8517305644 InsulatorInsulator
-
9517304318 InsulatorInsulator
-
10517304831 RH Side Access PanelRH Side Access Panel
-
11517304015 RH Access Panel GrillRH Access Panel Grill
-
12517304016 RH Lower Acces GrillRH Lower Acces Grill
-
13517304311 InsulatorInsulator
-
14517305987 InsulatorInsulator
-
15517304841 LH Side Access PanelLH Side Access Panel
-
16517303893 LH Access Panel GrillLH Access Panel Grill
-
17517304313 InsulatorInsulator
-
18517304272 Indicator SupportIndicator Support
-
19517304314 InsulatorInsulator
-
20517304315 InsulatorInsulator
-
21517304316 InsulatorInsulator
-
22517304319 InsulatorInsulator
-
23860201000 Windshield Ass'y. Includes 23 to 25Windshield Ass'y. Includes 23 to 25
-
24517304744 ButtonButton
-
25517303756 GrommetGrommet
-
26517303756 GrommetGrommet
-
27517304744 ButtonButton
-
28517304328 Black Side Panel-RhBlack Side Panel-Rh
-
29517304709 Foam RightFoam Right
-
30517304310 RH Rear FoamRH Rear Foam
-
31517304329 Black Side Panel-LHBlack Side Panel-LH
-
32517304707 Foam LHFoam LH
-
33517304309 LH Rear FoamLH Rear Foam
-
34517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
35517304296 Quarter-Turn HandleQuarter-Turn Handle
-
36517304538 Locking PlateLocking Plate
-
37517304497 Side Panel SupportSide Panel Support
-
38293150211 RivetRivet
-
39517304075 End Piece LatchEnd Piece Latch
-
40517306057 Latch-PanelLatch-Panel
-
41517304194 RH Headlamp Ass'y. Includes 41 to 44RH Headlamp Ass'y. Includes 41 to 44
-
42515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )Halogen Bulb, 60/55 W, 12 V ( H4 )
-
43515176498 CapCap
-
44515176499 CoverCover
-
45250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
46250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
47517304195 LH Headlamp Ass'y. Includes 47 to 50LH Headlamp Ass'y. Includes 47 to 50
-
48515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )Halogen Bulb, 60/55 W, 12 V ( H4 )
-
49515176498 CapCap
-
50515176499 CoverCover
-
51250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
52250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
