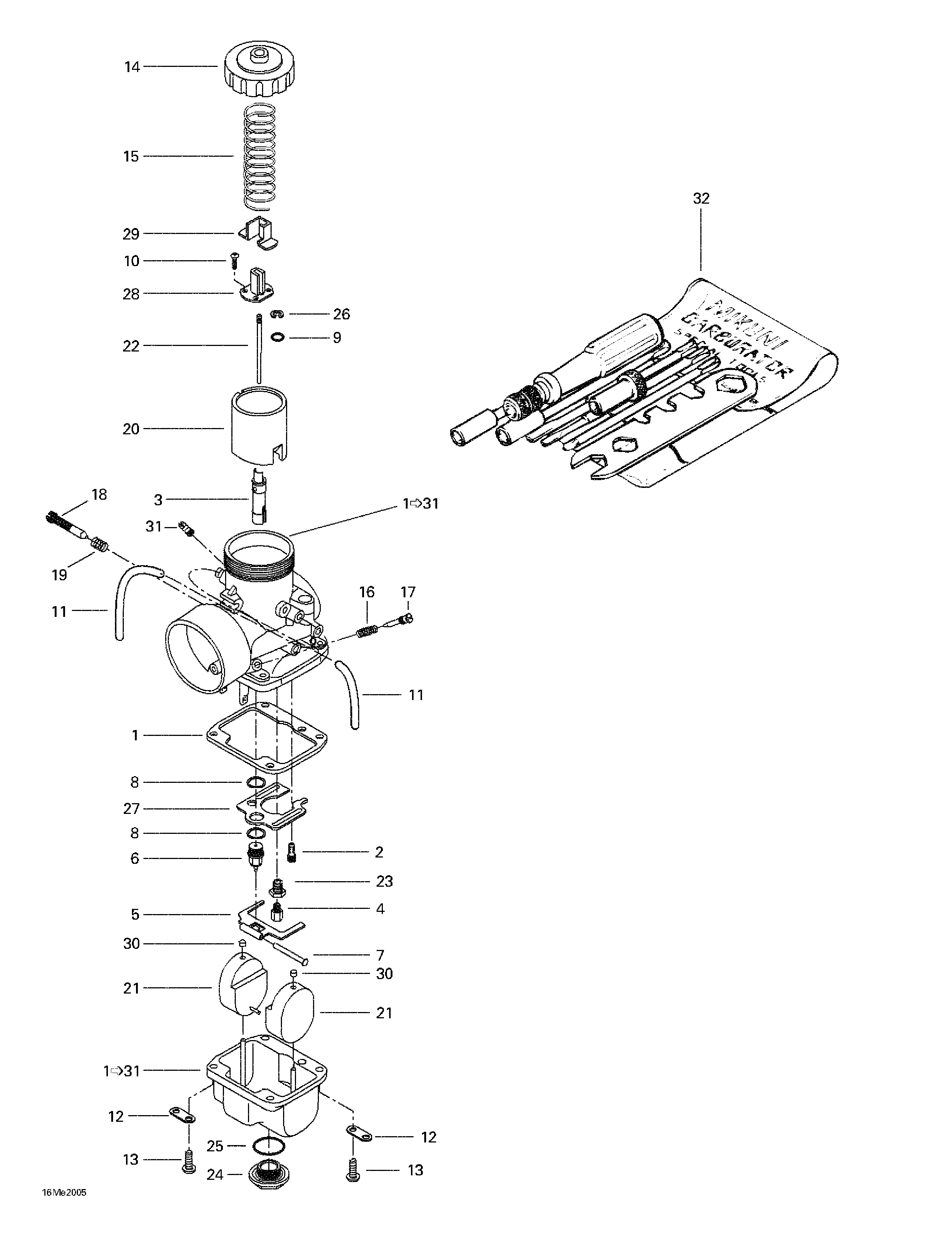

02- Carburetors для BRP Ski-Doo Formula 500 LC - 2000
-
№АртикулНазвание
-
1403138608 Carburetor VM 38-431 (PTO). Includes 1 - 31.Carburetor VM 38-431 (PTO). Includes 1 - 31.
-
403138609 Carburetor VM 38-432 (MAG)Carburetor VM 38-432 (MAG)
-
1404104700 GasketGasket
-
2404109500 Pilot Jet PJ 50Pilot Jet PJ 50
-
3404160900 Needle Jet NJ-480-Q3Needle Jet NJ-480-Q3
-
4404101200 Main Jet MJ 300 (PTO)Main Jet MJ 300 (PTO)
-
404100500 Main Jet MJ 280 (MAG)Main Jet MJ 280 (MAG)
-
5404105000 Float ArmFloat Arm
-
6404147400 Needle Valve 1.5Needle Valve 1.5
-
7404103300 Float Arm PinFloat Arm Pin
-
8404101600 Gasket WasherGasket Washer
-
9404117000 PackingPacking
-
10404121300 Screw with Lock WasherScrew with Lock Washer
-
11404161802 Vent TubeVent Tube
-
12404103000 Tube Retainer PlateTube Retainer Plate
-
13404102000 Screw with Lock WasherScrew with Lock Washer
-
14404105100 CoverCover
-
15404154800 Throttle Valve SpringThrottle Valve Spring
-
16404139800 Spring, (Idle Adjusting Screw)Spring, (Idle Adjusting Screw)
-
17404149000 Idle Adjusting ScrewIdle Adjusting Screw
-
18404102800 Throttle Stop ScrewThrottle Stop Screw
-
19404101700 Spring, (Throttle Stop Screw)Spring, (Throttle Stop Screw)
-
20404131300 Throttle Valve 2.5Throttle Valve 2.5
-
21404105400 FloatFloat
-
22404161820 Jet Needle J8 6DGY09Jet Needle J8 6DGY09
-
23404105500 Screw GuideScrew Guide
-
24404105600 Drain Plug ScrewDrain Plug Screw
-
25404101500 WasherWasher
-
26404152400 E RingE Ring
-
28404160800 ConnectorConnector
-
29404122100 CoverCover
-
30404105800 CapCap
-
31404153400 NippleNipple
-
32404112000 Tool KitTool Kit
