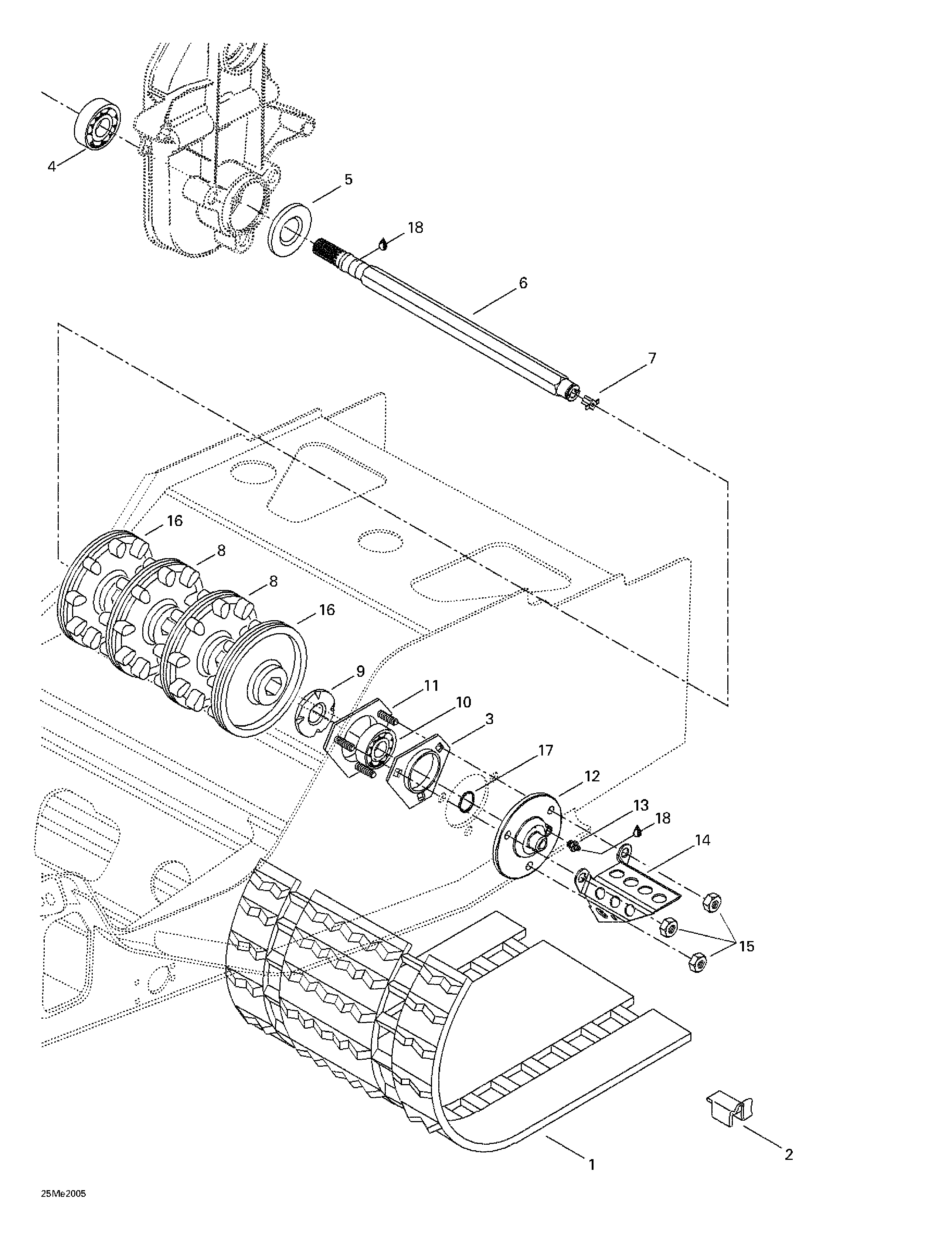

05- Drive Axle And Track для BRP Ski-Doo Formula 500 LC - 2000
-
№АртикулНазвание
-
1504151779 Track. Includes 1 - 2.Track. Includes 1 - 2.
-
2500003400 Guide CleatGuide Cleat
-
3501025000 FlangeFlange
-
4405403900 Ball Bearing, 6206Ball Bearing, 6206
-
5504151925 Oil Seal Ass'yOil Seal Ass'y
-
6501026500 Drive AxleDrive Axle
-
7572010100 Speedometer Drive InsertSpeedometer Drive Insert
-
8414663900 9 Tooth Sprocket9 Tooth Sprocket
-
9501017400 Ball Bearing ProtectorBall Bearing Protector
-
10405408600 Ball BearingBall Bearing
-
11504151860 Bearing HousingBearing Housing
-
12504151836 Flange (Speedo Drive Insert)Flange (Speedo Drive Insert)
-
13408200700 Grease FittingGrease Fitting
-
14517290100 Cable ProtectorCable Protector
-
15232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
16414990800 9 Tooth Half Sprocket9 Tooth Half Sprocket
-
17371910200 CirclipCirclip
-
18219700417 Synthetic Grease, 400gSynthetic Grease, 400g
