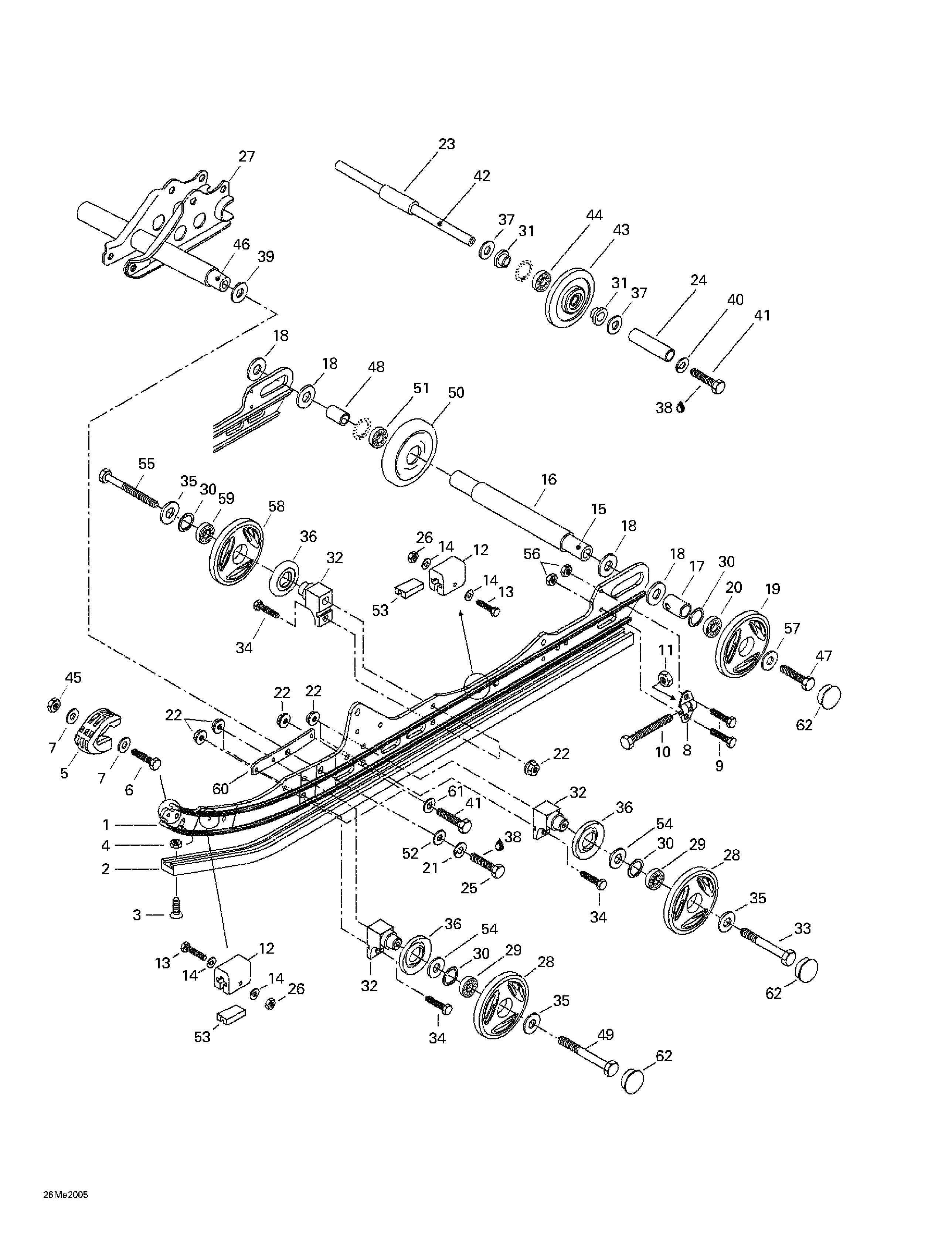

08- Rear Suspension для BRP Ski-Doo Formula 500 LC - 2000
-
№АртикулНазвание
-
1503188960 Runner (121'')Runner (121'')
-
2560103300 Runner Shoe (121'')Runner Shoe (121'')
-
3208562560 Countersunk Head Screw M6 x 25Countersunk Head Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
7391301600 WasherWasher
-
8503155300 TensionerTensioner
-
9207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
10230100044 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
11233601416 Elastic Stop Nut M10Elastic Stop Nut M10
-
12570063000 Rubber StopperRubber Stopper
-
13207054044 Hex. Screw M5 x 40Hex. Screw M5 x 40
-
14391301700 Flat WasherFlat Washer
-
15503160700 Rear AxleRear Axle
-
16503183000 Spacer (long)Spacer (long)
-
17503189075 Outer SpacerOuter Spacer
-
18503180400 WasherWasher
-
19503189475 Wheel 165 (Black). Includes 19 - 20.Wheel 165 (Black). Includes 19 - 20.
-
20405404500 Ball Bearing 6205Ball Bearing 6205
-
21234120062 Lock Washer 12 mmLock Washer 12 mm
-
22233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
23503153100 Center SpacerCenter Spacer
-
24503188951 External SpacerExternal Spacer
-
25207124044 Hex. Screw M12 x 40Hex. Screw M12 x 40
-
26232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
27503188976 Welded Shock SupportWelded Shock Support
-
28572097602 Wheel 135 (Black). Includes 28 - 29.Wheel 135 (Black). Includes 28 - 29.
-
29405404500 Ball Bearing 6205Ball Bearing 6205
-
30371901700 CirclipCirclip
-
31415112700 CushionCushion
-
32503174600 SupportSupport
-
33207088544 Hex. Screw M8 x 85Hex. Screw M8 x 85
-
34207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
35503183100 WasherWasher
-
36572089000 Labyrinth SealLabyrinth Seal
-
37503154000 WasherWasher
-
38293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
39503175400 Hard WasherHard Washer
-
40234181401 Lock Washer 8 mmLock Washer 8 mm
-
41207183044 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
42503160000 Wheel Support AxleWheel Support Axle
-
43572018900 Idler Wheel. Includes 43 - 44.Idler Wheel. Includes 43 - 44.
-
44405404500 Ball Bearing 6205Ball Bearing 6205
-
45232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
46503174900 Lower AxleLower Axle
-
47250000019 Hex. ScrewHex. Screw
-
48503182900 Interior Spacer (Short)Interior Spacer (Short)
-
49207089044 Hex. Screw M8 x 90Hex. Screw M8 x 90
-
50503189476 Wheel 165. Includes 50 - 51.Wheel 165. Includes 50 - 51.
-
51405404500 Ball Bearing 6205Ball Bearing 6205
-
52234021410 Flat Washer 12 mmFlat Washer 12 mm
-
53572084800 Reinforcement StopperReinforcement Stopper
-
54503173700 WasherWasher
-
55207088044 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
56233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
57503183300 WasherWasher
-
58503188997 Wheel 135. Includes 58 - 59.Wheel 135. Includes 58 - 59.
-
59405404500 Ball Bearing 6205Ball Bearing 6205
-
60503189060 Reinforcement PlateReinforcement Plate
-
61234081410 Flat Washer 8 mmFlat Washer 8 mm
-
62570063600 Wheel CapWheel Cap
