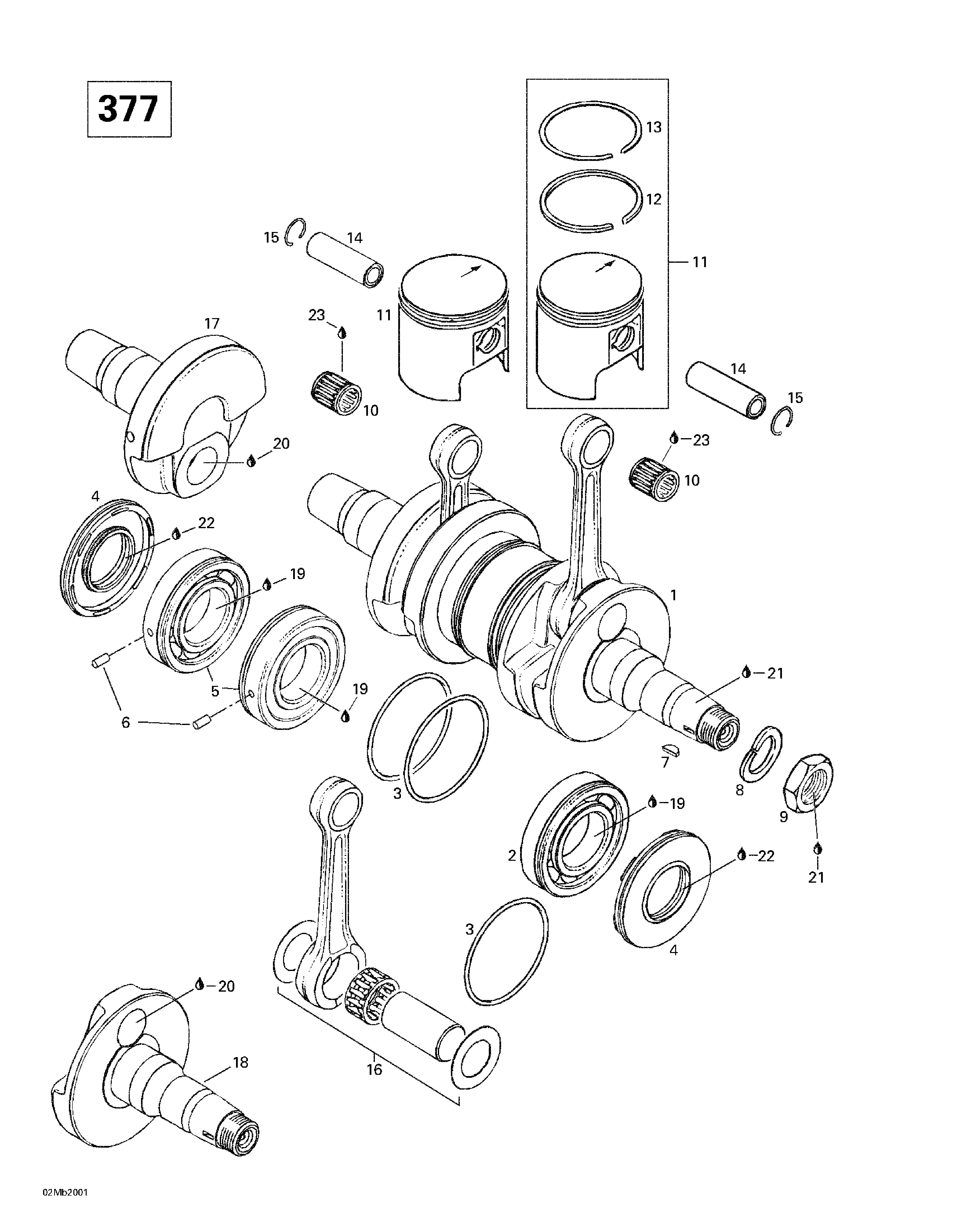

01- Crankshaft And Pistons (377) для BRP Ski-Doo Formula Deluxe 380/500 - 2000
-
№АртикулНазвание
-
1420887249 Crankshaft Ass'y. Includes 1 - 7. Formula S. Formula DLX 380.Crankshaft Ass'y. Includes 1 - 7. Formula S. Formula DLX 380.
-
2420832570 Ball Bearing 6207. Formula S. Formula DLX 380.Ball Bearing 6207. Formula S. Formula DLX 380.
-
3420250165 O-Ring 64 mm. Formula S. Formula DLX 380.O-Ring 64 mm. Formula S. Formula DLX 380.
-
4420831952 Oil Seal. Formula S. Formula DLX 380.Oil Seal. Formula S. Formula DLX 380.
-
5420832574 Ball Bearing 6207. Includes 5 - 6. Formula S. Formula DLX 380.Ball Bearing 6207. Includes 5 - 6. Formula S. Formula DLX 380.
-
6420929972 Dowel Pin. Formula S. Formula DLX 380.Dowel Pin. Formula S. Formula DLX 380.
-
7420246055 Woodruff Key. Formula S. Formula DLX 380.Woodruff Key. Formula S. Formula DLX 380.
-
8420945759 Lock Washer 22 mm. Formula S. Formula DLX 380.Lock Washer 22 mm. Formula S. Formula DLX 380.
-
9420842230 Nut M 22. Formula S. Formula DLX 380.Nut M 22. Formula S. Formula DLX 380.
-
10420932904 Needle Bearing. Formula S. Formula DLX 380.Needle Bearing. Formula S. Formula DLX 380.
-
11420887475 Piston Ass'y 61.94 mm. Includes 11 - 13. Formula S. Formula DLX 380.Piston Ass'y 61.94 mm. Includes 11 - 13. Formula S. Formula DLX 380.
-
420887476 Oversize Piston Ass'y 62.19 mm. Formula S.Oversize Piston Ass'y 62.19 mm. Formula S.
-
420887471 Oversize Piston Ass'y 62.19 mm. Formula DLX 380.Oversize Piston Ass'y 62.19 mm. Formula DLX 380.
-
420887477 Oversize Piston Ass'y 62.44 mm. Formula S.Oversize Piston Ass'y 62.44 mm. Formula S.
-
420887472 Oversize Piston Ass'y 62.44 mm. Formula DLX 380.Oversize Piston Ass'y 62.44 mm. Formula DLX 380.
-
12420915895 Rectangular Ring 62.0 mm. Formula S. Formula DLX 380.Rectangular Ring 62.0 mm. Formula S. Formula DLX 380.
-
420915896 Rectangular Ring 62.25 mm. Formula S.Rectangular Ring 62.25 mm. Formula S.
-
420915891 Rectangular Ring 62.25 mm. Formula DLX 380.Rectangular Ring 62.25 mm. Formula DLX 380.
-
420915897 Rectangular Ring 62.5 mm. Formula S.Rectangular Ring 62.5 mm. Formula S.
-
420915892 Rectangular Ring 62.5 mm. Formula DLX 380.Rectangular Ring 62.5 mm. Formula DLX 380.
-
13420215215 Semi-Trapez Ring 62.0 mm. Formula S. Formula DLX 380.Semi-Trapez Ring 62.0 mm. Formula S. Formula DLX 380.
-
420215216 Semi-Trapez Ring 62.25 mm. Formula S. Formula DLX 380.Semi-Trapez Ring 62.25 mm. Formula S. Formula DLX 380.
-
420215217 Semi-Trapez Ring 62.5 mm. Formula S.Semi-Trapez Ring 62.5 mm. Formula S.
-
420215212 Semi-Trapez Ring 62.5 mm. Formula DLX 380.Semi-Trapez Ring 62.5 mm. Formula DLX 380.
-
14420916260 Piston Pin. Formula S. Formula DLX 380.Piston Pin. Formula S. Formula DLX 380.
-
15420945735 Circlip. Formula S. Formula DLX 380.Circlip. Formula S. Formula DLX 380.
-
16420996334 Rod Repair Kit. Formula S. Formula DLX 380.Rod Repair Kit. Formula S. Formula DLX 380.
-
17420818203 Crankshaft half P.T.O. Formula S. Formula DLX 380.Crankshaft half P.T.O. Formula S. Formula DLX 380.
-
18420919979 Crankshaft half MAG. Formula S. Formula DLX 380.Crankshaft half MAG. Formula S. Formula DLX 380.
-
19293800023 Loctite 767, Antiseize Lubricant, 454g. Formula S. Formula DLX 380.Loctite 767, Antiseize Lubricant, 454g. Formula S. Formula DLX 380.
-
20413711400 Loctite 648, 10ml. Formula S. Formula DLX 380.Loctite 648, 10ml. Formula S. Formula DLX 380.
-
21293800060 Loctite 243, 10ml. Formula S. Formula DLX 380.Loctite 243, 10ml. Formula S. Formula DLX 380.
-
22413707000 Molykote 111. Formula S. Formula DLX 380.Molykote 111. Formula S. Formula DLX 380.
-
23413802900 Injection Oil (12 x 1 Liter). Formula S. Formula DLX 380.Injection Oil (12 x 1 Liter). Formula S. Formula DLX 380.
