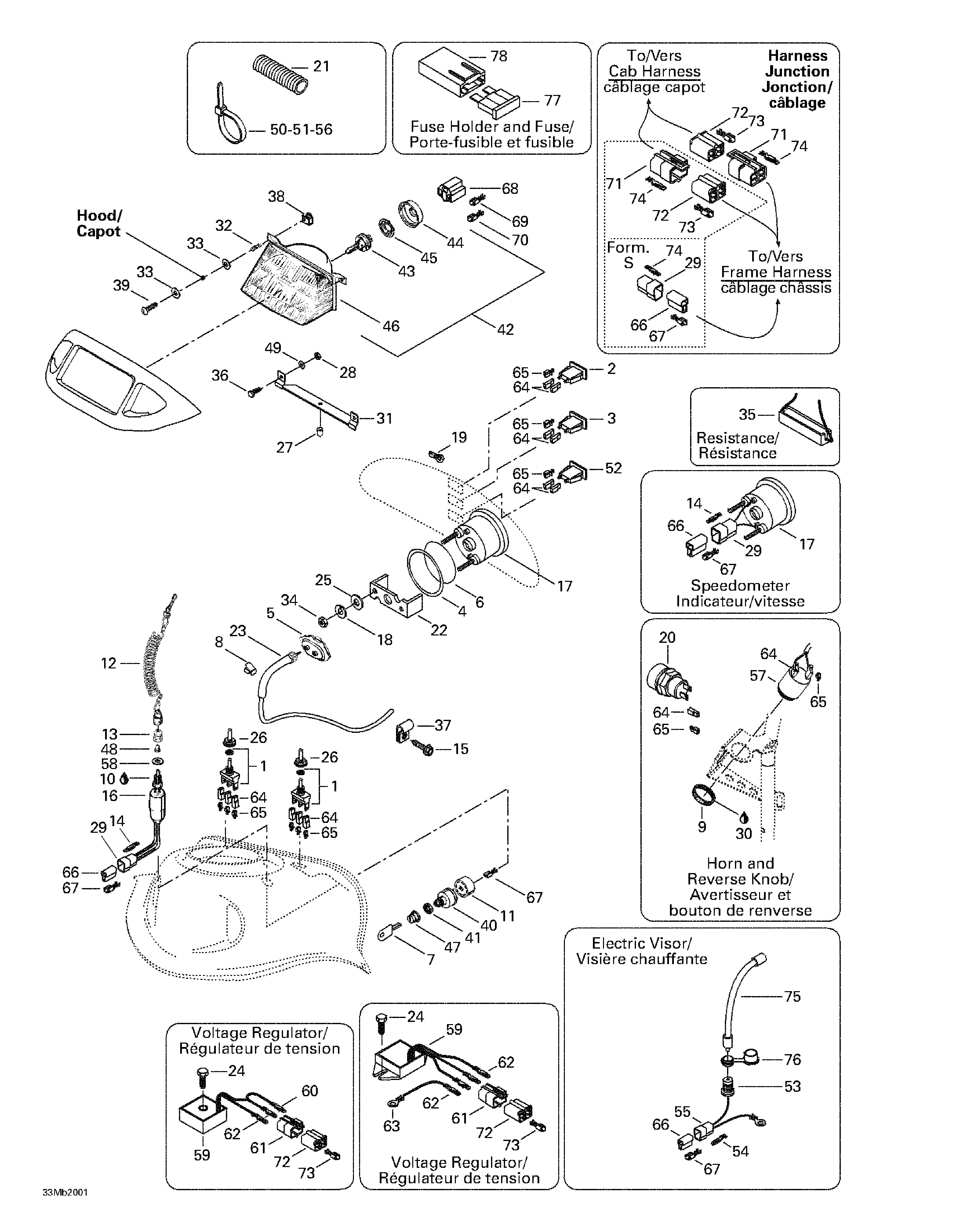

10- Electrical System для BRP Ski-Doo Formula Deluxe 380/500 - 2000
-
№АртикулНазвание
-
1410107300 Switch (Heating Grip)Switch (Heating Grip)
-
2410109500 Pilot Lamp (Oil Level)Pilot Lamp (Oil Level)
-
3410109600 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
4414187300 Plate. Formula S.Plate. Formula S.
-
517258500 Washer. Formula DLX 380. Formula DLX 500.Washer. Formula DLX 380. Formula DLX 500.
-
5572022300 Drive Angle. Formula S.Drive Angle. Formula S.
-
515175400 Drive Angle. Formula DLX 380. Formula DLX 500.Drive Angle. Formula DLX 380. Formula DLX 500.
-
6414187200 O-Ring. Formula S.O-Ring. Formula S.
-
414807100 O-Ring. Formula DLX 380. Formula DLX 500.O-Ring. Formula DLX 380. Formula DLX 500.
-
7414991700 Blank Key (Plastic, PQG/5)Blank Key (Plastic, PQG/5)
-
8414227300 ClipClip
-
9414805101 Plastic Nut. Formula DLX 380. Formula DLX 500.Plastic Nut. Formula DLX 380. Formula DLX 500.
-
10293550004 Dielectric Grease, 150gDielectric Grease, 150g
-
11572150700 Ignition Switch BlockIgnition Switch Block
-
12515151500 Switch Cap Ass'ySwitch Cap Ass'y
-
13515145900 Switch NutSwitch Nut
-
14409210000 Male TerminalMale Terminal
-
15365901100 Hex. Tapping ScrewHex. Tapping Screw
-
16515175369 SwitchSwitch
-
17515175339 Speedometer (KMH). Formula S.Speedometer (KMH). Formula S.
-
515175337 Speedometer (KMH). Formula DLX 380. Formula DLX 500.Speedometer (KMH). Formula DLX 380. Formula DLX 500.
-
515175338 Speedometer (MPH). Formula DLX 380. Formula DLX 500.Speedometer (MPH). Formula DLX 380. Formula DLX 500.
-
18414806700 Lock WasherLock Washer
-
19410504200 Instrumentation BulbInstrumentation Bulb
-
20415101200 Reverse Knob. Formula DLX 380. Formula DLX 500.Reverse Knob. Formula DLX 380. Formula DLX 500.
-
21415079900 TubingTubing
-
22414187400 Case Holder. Formula S.Case Holder. Formula S.
-
414806500 Case Holder. Formula DLX 380. Formula DLX 500.Case Holder. Formula DLX 380. Formula DLX 500.
-
23414761400 Speedometer CableSpeedometer Cable
-
24210261680 Hex. Tapping Screw M6 x 16. Formula DLX 380. Formula DLX 500.Hex. Tapping Screw M6 x 16. Formula DLX 380. Formula DLX 500.
-
210263580 Screw M6 x 35. Formula S.Screw M6 x 35. Formula S.
-
25414806800 WasherWasher
-
26515175281 Switch CoverSwitch Cover
-
27410608200 Rubber StopperRubber Stopper
-
28232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
29409204500 Male ConnectorMale Connector
-
30296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
31517218500 Headlamp SupportHeadlamp Support
-
32517168600 SpringSpring
-
33234051410 Washer 5 mmWasher 5 mm
-
34414806900 NutNut
-
35515175241 Resistance 50 OhmsResistance 50 Ohms
-
36207151244 Hex. Screw M5 x 12Hex. Screw M5 x 12
-
37414176000 ClipClip
-
38572078600 Projector NutProjector Nut
-
39243244040 Screw M4 x 40Screw M4 x 40
-
40410111200 Ignition Switch. Formula S.Ignition Switch. Formula S.
-
410111300 Ignition Switch. Formula DLX 380. Formula DLX 500.Ignition Switch. Formula DLX 380. Formula DLX 500.
-
41410112100 Face NutFace Nut
-
42410609100 Headlamp Ass'y. Includes 42 - 46.Headlamp Ass'y. Includes 42 - 46.
-
43410503700 Halogen Bulb 60/55 WHalogen Bulb 60/55 W
-
44410607100 Protector CapProtector Cap
-
45410608300 Bulb HolderBulb Holder
-
46410609300 HeadlampHeadlamp
-
47570013700 Switch BootSwitch Boot
-
48570151100 Plunger CapPlunger Cap
-
49391301700 WasherWasher
-
50414115200 Tie RapTie Rap
-
51293750008 Tie Rap 350 mmTie Rap 350 mm
-
52410113400 Pilot Lamp (Reverse). Formula DLX 380. Formula DLX 500.Pilot Lamp (Reverse). Formula DLX 380. Formula DLX 500.
-
53515175111 Visor Plug Harness. Formula DLX 380. Formula DLX 500.Visor Plug Harness. Formula DLX 380. Formula DLX 500.
-
54409210000 Male Terminal. Formula DLX 380. Formula DLX 500.Male Terminal. Formula DLX 380. Formula DLX 500.
-
55409204500 Male Terminal Housing (2 Circuits). Formula DLX 380. Formula DLX 500.Male Terminal Housing (2 Circuits). Formula DLX 380. Formula DLX 500.
-
56515175220 Tie RapTie Rap
-
57415060900 Horn. Formula DLX 380. Formula DLX 500.Horn. Formula DLX 380. Formula DLX 500.
-
59515163800 Voltage Regulator. Includes 59 - 62. Formula S.Voltage Regulator. Includes 59 - 62. Formula S.
-
59515163900 Voltage Regulator. Includes 59 - 63. Formula DLX 380. Formula DLX 500.Voltage Regulator. Includes 59 - 63. Formula DLX 380. Formula DLX 500.
-
61409209300 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
63409003200 Ring Terminal. Formula DLX 380. Formula DLX 500.Ring Terminal. Formula DLX 380. Formula DLX 500.
-
64409010400 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
65409010100 Female TerminalFemale Terminal
-
66409204600 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
67561503100 Female TerminalFemale Terminal
-
68409202700 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
69515175320 Female TerminalFemale Terminal
-
70409011500 Female TerminalFemale Terminal
-
71409209300 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
72409204900 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
73561503200 Female TerminalFemale Terminal
-
74409206100 Male TerminalMale Terminal
-
75515175161 Extension-Visor Plug. Formula DLX 380. Formula DLX 500.Extension-Visor Plug. Formula DLX 380. Formula DLX 500.
-
76572103300 Plug. Formula DLX 380. Formula DLX 500.Plug. Formula DLX 380. Formula DLX 500.
-
77410917200 Fuse 30 AmpFuse 30 Amp
-
78409004000 Fuse HolderFuse Holder
