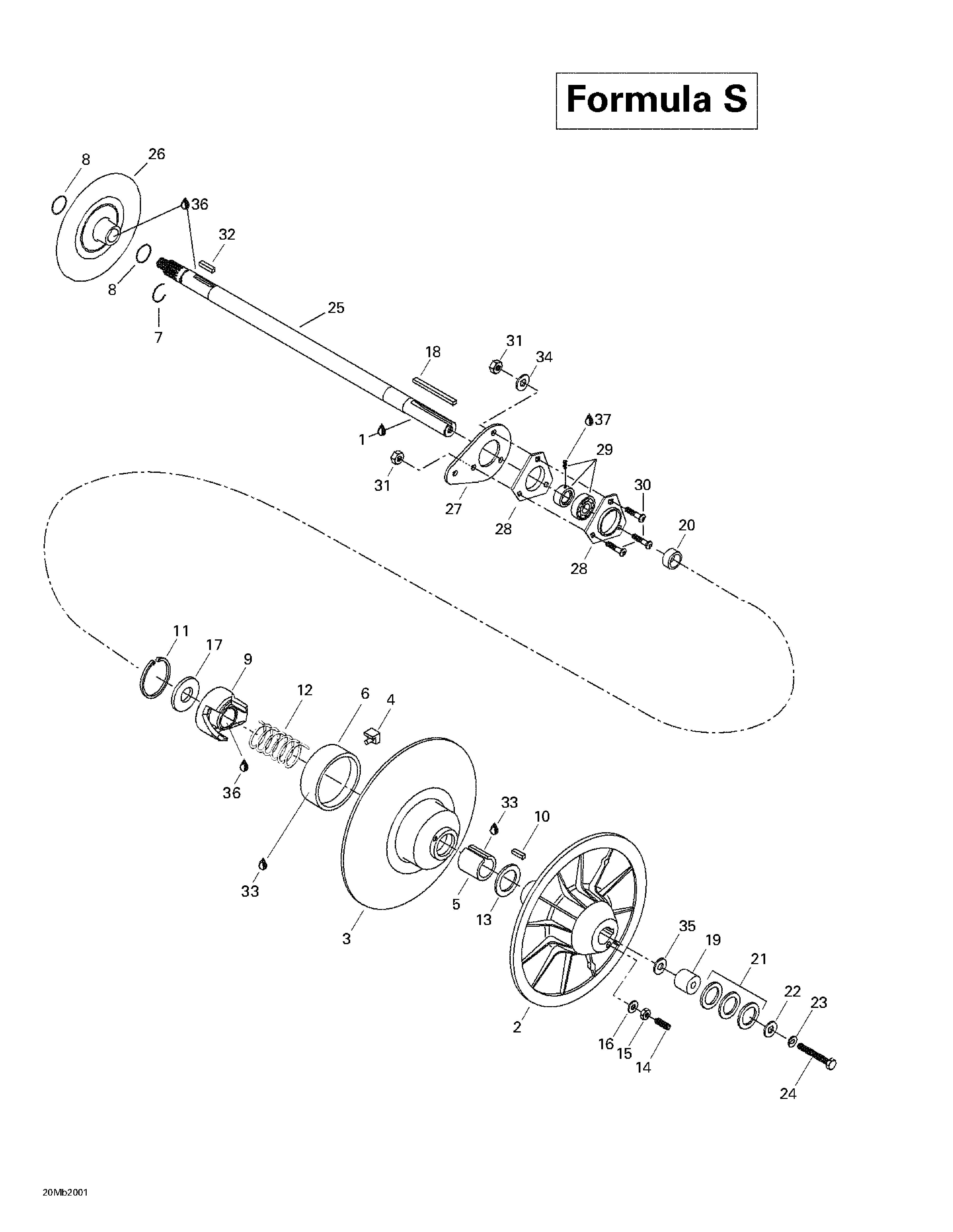

05- Driven Pulley (Formula S) для BRP Ski-Doo Formula Deluxe 380/500 - 2000
‹-+›
-
№АртикулНазвание
-
1293800023 Loctite 767, Antiseize Lubricant, 454 g. Formula S.Loctite 767, Antiseize Lubricant, 454 g. Formula S.
-
2504141600 Fixed Flange. Formula S.Fixed Flange. Formula S.
-
3504143400 Sliding Flange Ass'y. Includes 3 - 8. Formula S.Sliding Flange Ass'y. Includes 3 - 8. Formula S.
-
4414918000 Cam Slider Shoe. Formula S.Cam Slider Shoe. Formula S.
-
5415011200 Bushing-Garlock. Formula S.Bushing-Garlock. Formula S.
-
6414876600 Bushing-Garlock. Formula S.Bushing-Garlock. Formula S.
-
7371910000 Circlip. Formula S.Circlip. Formula S.
-
8414928900 O-Ring. Formula S.O-Ring. Formula S.
-
9417126333 Cam 44 Deg. Formula S.Cam 44 Deg. Formula S.
-
10414820800 Key. Formula S.Key. Formula S.
-
11371903100 Circlip. Formula S.Circlip. Formula S.
-
12414505800 Release Spring (Orange). Formula S.Release Spring (Orange). Formula S.
-
13504141900 Thrust Washer. Formula S.Thrust Washer. Formula S.
-
14206263044 Set Screw M6 x 30. Formula S.Set Screw M6 x 30. Formula S.
-
15232061414 Nut M6. Formula S.Nut M6. Formula S.
-
16420245370 Washer. Formula S.Washer. Formula S.
-
17504141800 Washer. Formula S.Washer. Formula S.
-
18414581300 Key. Formula S.Key. Formula S.
-
19504260700 Countershaft Extension. Formula S.Countershaft Extension. Formula S.
-
20504094000 Shim. Formula S.Shim. Formula S.
-
21504108200 Shim. Formula S.Shim. Formula S.
-
22517078700 Washer. Formula S.Washer. Formula S.
-
23234181401 Lock Washer 8 mm. Formula S.Lock Washer 8 mm. Formula S.
-
24207086544 Hex. Screw M8 x 65. Formula S.Hex. Screw M8 x 65. Formula S.
-
25504149200 Countershaft. Formula S.Countershaft. Formula S.
-
26507029000 Disk. Formula S.Disk. Formula S.
-
27501022300 Spacer. Formula S.Spacer. Formula S.
-
28501025000 Flange. Formula S.Flange. Formula S.
-
29405408300 Ball Bearing. Formula S.Ball Bearing. Formula S.
-
30205482546 Socket Head Screw M8 x 25. Formula S.Socket Head Screw M8 x 25. Formula S.
-
31232581414 Elastic Stop Nut M8. Formula S.Elastic Stop Nut M8. Formula S.
-
32507021300 Key. Formula S.Key. Formula S.
-
33413703100 Loctite 609, 10 c.c. Formula S.Loctite 609, 10 c.c. Formula S.
-
34224081410 Washer 8 mm. Formula S.Washer 8 mm. Formula S.
-
35224081201 Flat Washer. Formula S.Flat Washer. Formula S.
-
36413701000 Loctite 767, Antiseize Lube, 12 oz. Formula S.Loctite 767, Antiseize Lube, 12 oz. Formula S.
-
37293800060 Loctite 243, 10ml. Formula S.Loctite 243, 10ml. Formula S.
