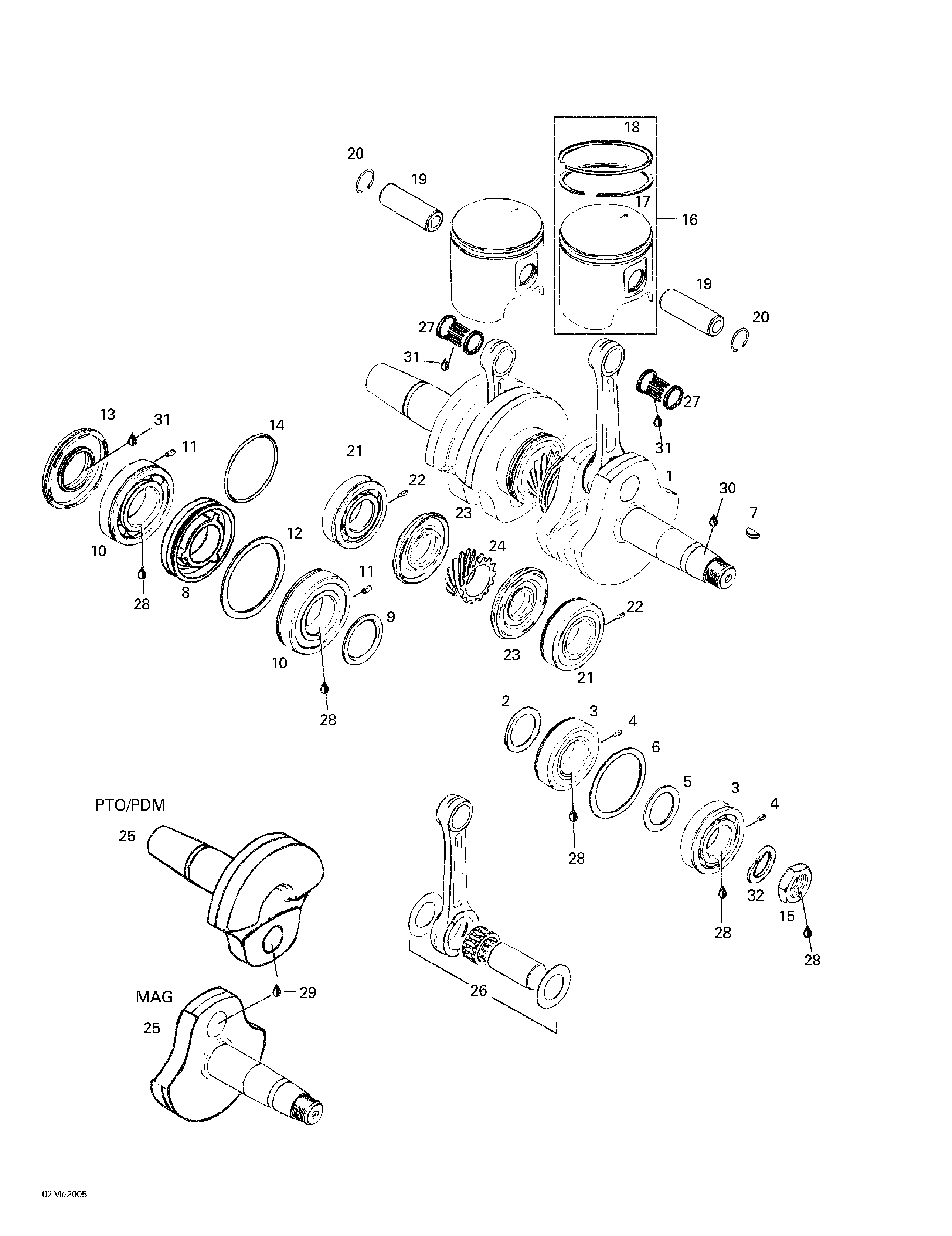

01- Crankshaft And Pistons для BRP Ski-Doo Formula Deluxe 500 LC - 2000
-
№АртикулНазвание
-
1420886933 Crankshaft Ass'y. Includes 1 - 14.Crankshaft Ass'y. Includes 1 - 14.
-
2420827445 Distance RingDistance Ring
-
3420832538 Ball Bearing 6206 Ass'y. Includes 3 - 4.Ball Bearing 6206 Ass'y. Includes 3 - 4.
-
4420929972 Dowel PinDowel Pin
-
5420427684 Adjusting WasherAdjusting Washer
-
6420827050 Retaining DiskRetaining Disk
-
7420246015 Woodruff KeyWoodruff Key
-
8420830294 Labyrinth BushingLabyrinth Bushing
-
9420827760 Distance RingDistance Ring
-
10420832574 Ball Bearing 6207 Ass'y. Includes 10 - 11.Ball Bearing 6207 Ass'y. Includes 10 - 11.
-
11420929972 Dowel PinDowel Pin
-
12420927710 Retaining DiskRetaining Disk
-
13420831950 Oil SealOil Seal
-
14420830370 O-RingO-Ring
-
15420842230 Hex. Nut M22Hex. Nut M22
-
16420887553 Piston Ass'y (2 rings 69.39 mm). Includes 16 - 18.Piston Ass'y (2 rings 69.39 mm). Includes 16 - 18.
-
420887554 Oversize Pist. Ass'y (2 rings 69.64 mm)Oversize Pist. Ass'y (2 rings 69.64 mm)
-
17420915985 Rectangular Ring 69.5 mmRectangular Ring 69.5 mm
-
420915986 Oversize Rectangular Ring 69.75 mmOversize Rectangular Ring 69.75 mm
-
18420815045 Semi-trapez Ring 69.5 mmSemi-trapez Ring 69.5 mm
-
420815046 Oversize Semi-trapez Ring 69.75 mmOversize Semi-trapez Ring 69.75 mm
-
19420916186 Gudgeon PinGudgeon Pin
-
20420945735 Piston CirclipPiston Circlip
-
21420832538 Ball Bearing 6206 Ass'y. Includes 21 - 22.Ball Bearing 6206 Ass'y. Includes 21 - 22.
-
22420929972 Dowel PinDowel Pin
-
23420831990 Oil SealOil Seal
-
24420935748 Central Gear 14 TeethCentral Gear 14 Teeth
-
25420818660 Crankshaft (PTO side)Crankshaft (PTO side)
-
420818690 Crankshaft (MAG side)Crankshaft (MAG side)
-
26420886955 Crankshaft Repair Kit (PTO side)Crankshaft Repair Kit (PTO side)
-
420886956 Crankshaft Repair Kit (MAG side)Crankshaft Repair Kit (MAG side)
-
27420832438 Needle BearingNeedle Bearing
-
28293800023 Loctite 767, Antiseize Lubricant, 454 grLoctite 767, Antiseize Lubricant, 454 gr
-
29413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
32420945759 Lock WasherLock Washer
