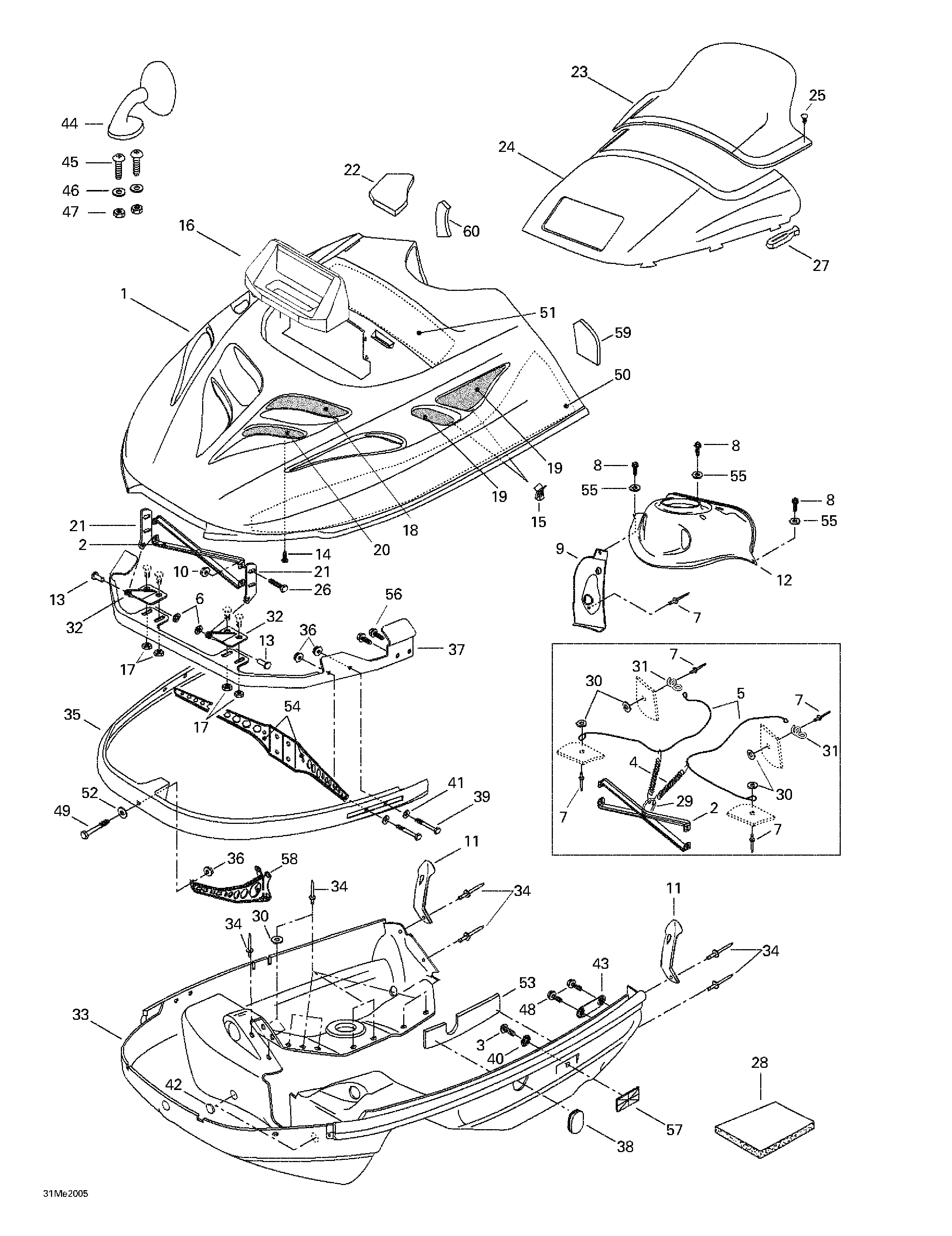

09- Cab, Console для BRP Ski-Doo Formula Deluxe 500 LC - 2000
-
№АртикулНазвание
-
1517302196 Hood (Purple). Formula 500 LC.Hood (Purple). Formula 500 LC.
-
517302318 Hood (Cloud). Formula DLX 500 LC.Hood (Cloud). Formula DLX 500 LC.
-
2517278100 Hood ReinfocerHood Reinfocer
-
3208651041 Screw M5 x 10Screw M5 x 10
-
4414763300 SpringSpring
-
5415093900 Cab Retainer CableCab Retainer Cable
-
6389804300 Push NutPush Nut
-
7390409600 Rivet (Black)Rivet (Black)
-
8732600030 Hex. Tapping ScrewHex. Tapping Screw
-
9572052101 Dash-Handle. Formula 500 LC.Dash-Handle. Formula 500 LC.
-
572052100 Dash-Handle. Formula DLX 500 LC.Dash-Handle. Formula DLX 500 LC.
-
10233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
11570027100 Hood LatchHood Latch
-
12517302105 Dash-Switch. Formula 500 LC.Dash-Switch. Formula 500 LC.
-
517302100 Dash-Switch. Formula DLX 500 LC.Dash-Switch. Formula DLX 500 LC.
-
13390906200 Rivet-Flat Head 3/16Rivet-Flat Head 3/16
-
14732601210 Self Tapping Screw #8 x 3/8Self Tapping Screw #8 x 3/8
-
15517302183 ClipClip
-
16415044800 Foam SealingFoam Sealing
-
17233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
18517298400 R.H. Upper Grill Ass'yR.H. Upper Grill Ass'y
-
517298500 L.H. Upper Grill Ass'yL.H. Upper Grill Ass'y
-
19517280200 Side GrillSide Grill
-
20517298600 R.H. Lower GrillR.H. Lower Grill
-
517298700 L.H. Lower GrillL.H. Lower Grill
-
21517261100 Upper HingeUpper Hinge
-
22414975000 Upper foamUpper foam
-
23415050500 Medium WindshieldMedium Windshield
-
24572101800 Windshield SupportWindshield Support
-
25414939500 Windshield DartWindshield Dart
-
26207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
27570023800 Windshield LatchWindshield Latch
-
28414632400 Foam-Acoustic (74''x 34''x 1/2'' Thk.)Foam-Acoustic (74''x 34''x 1/2'' Thk.)
-
414631900 Foam-Acoustic (74''x 34''x 1'' Thk.)Foam-Acoustic (74''x 34''x 1'' Thk.)
-
29415058300 RingRing
-
30517124300 WasherWasher
-
31517262800 BracketBracket
-
32517289900 Lower HingeLower Hinge
-
33502006572 Bottom Pan (Black)Bottom Pan (Black)
-
34390906800 Rivet (Black)Rivet (Black)
-
35517265400 Front BumperFront Bumper
-
36233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
37517296600 Hinge BracketHinge Bracket
-
38570053702 Pan Bottom Cap (Black)Pan Bottom Cap (Black)
-
39207063044 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
40234451418 External Tooth Lock Washer 5 mmExternal Tooth Lock Washer 5 mm
-
41224061121 WasherWasher
-
42572072100 CapCap
-
43517267100 Side BracketSide Bracket
-
44414971910 R.H. Mirror. Formula DLX 500 LC.R.H. Mirror. Formula DLX 500 LC.
-
414972010 L.H. Mirror. Formula DLX 500 LC.L.H. Mirror. Formula DLX 500 LC.
-
45222842065 Machined Screw M4 x 20. Formula DLX 500 LC.Machined Screw M4 x 20. Formula DLX 500 LC.
-
46517124300 Washer. Formula DLX 500 LC.Washer. Formula DLX 500 LC.
-
47232541414 Elastic Stop Nut M4. Formula DLX 500 LC.Elastic Stop Nut M4. Formula DLX 500 LC.
-
48210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
49207064044 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
50414883500 L.H. Lower FoamL.H. Lower Foam
-
415048700 R.H. Lower FoamR.H. Lower Foam
-
51414985100 Foam CenterFoam Center
-
52224061201 WasherWasher
-
53414931600 Foam # 6Foam # 6
-
54517295000 L.H. SupportL.H. Support
-
517295100 R.H.SupportR.H.Support
-
55391301600 WasherWasher
-
56365901100 Self Tapping ScrewSelf Tapping Screw
-
57414510200 Reflector (amber)Reflector (amber)
-
58517294500 Front Weld SupportFront Weld Support
-
59414883700 L.H. Rear FoamL.H. Rear Foam
-
60414883800 R.H. Rear FoamR.H. Rear Foam
