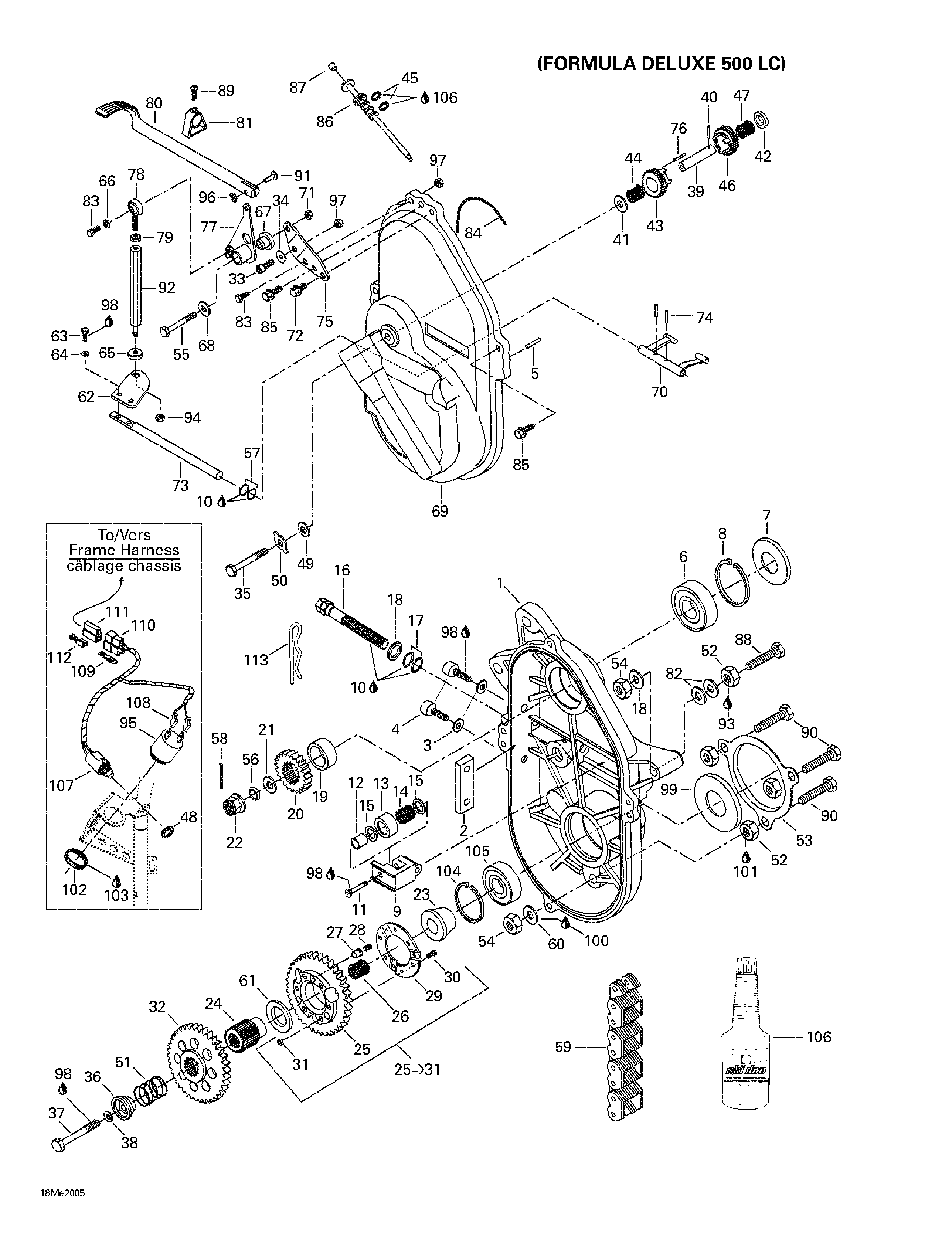

05- Transmission (Formula Deluxe 500 LC) для BRP Ski-Doo Formula Deluxe 500 LC - 2000
-
№АртикулНазвание
-
1504151777 Chaincase. Formula DLX 500 LC.Chaincase. Formula DLX 500 LC.
-
2232210414 Chain Slider. Formula DLX 500 LC.Chain Slider. Formula DLX 500 LC.
-
3732900040 Copper Washer. Formula DLX 500 LC.Copper Washer. Formula DLX 500 LC.
-
4207161644 Hex. Screw M6 x 16. Formula DLX 500 LC.Hex. Screw M6 x 16. Formula DLX 500 LC.
-
5732620001 Cylinder Pin. Formula DLX 500 LC.Cylinder Pin. Formula DLX 500 LC.
-
6405404400 Ball Bearing 6205. Formula DLX 500 LC.Ball Bearing 6205. Formula DLX 500 LC.
-
7414882800 Seal. Formula DLX 500 LC.Seal. Formula DLX 500 LC.
-
8371901700 Retaining Ring. Formula DLX 500 LC.Retaining Ring. Formula DLX 500 LC.
-
9504081000 Chain Tensioner. Formula DLX 500 LC.Chain Tensioner. Formula DLX 500 LC.
-
10219700417 Synthetic Grease, 400g. Formula DLX 500 LC.Synthetic Grease, 400g. Formula DLX 500 LC.
-
11732601144 Screw. Formula DLX 500 LC.Screw. Formula DLX 500 LC.
-
12504080200 Spacer. Formula DLX 500 LC.Spacer. Formula DLX 500 LC.
-
13414531300 Roller. Formula DLX 500 LC.Roller. Formula DLX 500 LC.
-
14405403000 Needle Bearing. Formula DLX 500 LC.Needle Bearing. Formula DLX 500 LC.
-
15504080300 Washer. Formula DLX 500 LC.Washer. Formula DLX 500 LC.
-
16732601311 Tensioner Adjustment Screw. Formula DLX 500 LC.Tensioner Adjustment Screw. Formula DLX 500 LC.
-
17414484400 O-Ring. Formula DLX 500 LC.O-Ring. Formula DLX 500 LC.
-
18234001410 Flat Washer 10 mm. Formula DLX 500 LC.Flat Washer 10 mm. Formula DLX 500 LC.
-
19504093400 Shim. Formula DLX 500 LC.Shim. Formula DLX 500 LC.
-
20504078400 Sprocket (23 Tooth-Narrow). Formula DLX 500 LC.Sprocket (23 Tooth-Narrow). Formula DLX 500 LC.
-
21504087100 Washer. Formula DLX 500 LC.Washer. Formula DLX 500 LC.
-
22232210414 Castellated Nut M16. Formula DLX 500 LC.Castellated Nut M16. Formula DLX 500 LC.
-
23504076300 Retaining Ring. Formula DLX 500 LC.Retaining Ring. Formula DLX 500 LC.
-
24504097700 Coupling Shaft. Formula DLX 500 LC.Coupling Shaft. Formula DLX 500 LC.
-
25581095900 Sprocket Ass'y (44 Tooth-Narrow). Includes 25 - 31. Formula DLX 500 LC.Sprocket Ass'y (44 Tooth-Narrow). Includes 25 - 31. Formula DLX 500 LC.
-
25504088200 Sprocket (44 Tooth-Narrow). Formula DLX 500 LC.Sprocket (44 Tooth-Narrow). Formula DLX 500 LC.
-
26414772600 Needle Bearing. Formula DLX 500 LC.Needle Bearing. Formula DLX 500 LC.
-
27504076800 Drive Pin. Formula DLX 500 LC.Drive Pin. Formula DLX 500 LC.
-
28414772700 Spring. Formula DLX 500 LC.Spring. Formula DLX 500 LC.
-
29504076100 Retaining Ring. Formula DLX 500 LC.Retaining Ring. Formula DLX 500 LC.
-
30207152044 Hex. Screw M5 x 20. Formula DLX 500 LC.Hex. Screw M5 x 20. Formula DLX 500 LC.
-
31233551416 Nut Lock Hex. M5. Formula DLX 500 LC.Nut Lock Hex. M5. Formula DLX 500 LC.
-
32504096800 Gear Slidding (56 Tooth). Formula DLX 500 LC.Gear Slidding (56 Tooth). Formula DLX 500 LC.
-
33205061644 Socket Head Screw M6 x 16. Formula DLX 500 LC.Socket Head Screw M6 x 16. Formula DLX 500 LC.
-
34234061410 Flat Washer 6 mm. Formula DLX 500 LC.Flat Washer 6 mm. Formula DLX 500 LC.
-
35207089044 Hex. Screw M8 x 90. Formula DLX 500 LC.Hex. Screw M8 x 90. Formula DLX 500 LC.
-
36504099100 Cap. Formula DLX 500 LC.Cap. Formula DLX 500 LC.
-
37207005044 Hex Screw M10 x 50. Formula DLX 500 LC.Hex Screw M10 x 50. Formula DLX 500 LC.
-
38234100602 Lock Washer 10 mm. Formula DLX 500 LC.Lock Washer 10 mm. Formula DLX 500 LC.
-
39504083100 Reverse Shaft. Formula DLX 500 LC.Reverse Shaft. Formula DLX 500 LC.
-
40732804003 Spring Pin. Formula DLX 500 LC.Spring Pin. Formula DLX 500 LC.
-
41504077300 Spacer. Formula DLX 500 LC.Spacer. Formula DLX 500 LC.
-
42504078700 Trust Ring. Formula DLX 500 LC.Trust Ring. Formula DLX 500 LC.
-
43581122200 Sprocket Ass'y (19 Tooth). Includes 43 - 44. Formula DLX 500 LC.Sprocket Ass'y (19 Tooth). Includes 43 - 44. Formula DLX 500 LC.
-
44414805000 Needle Bearing. Formula DLX 500 LC.Needle Bearing. Formula DLX 500 LC.
-
45414969400 O-Ring. Formula DLX 500 LC.O-Ring. Formula DLX 500 LC.
-
46581098200 Sprocket Ass'y (19 Tooth). Includes 46 - 47. Formula DLX 500 LC.Sprocket Ass'y (19 Tooth). Includes 46 - 47. Formula DLX 500 LC.
-
47414773100 Needle Bearing. Formula DLX 500 LC.Needle Bearing. Formula DLX 500 LC.
-
48732610075 Nut. Formula DLX 500 LC.Nut. Formula DLX 500 LC.
-
49504082900 Washer. Formula DLX 500 LC.Washer. Formula DLX 500 LC.
-
50504087700 Lock Tab. Formula DLX 500 LC.Lock Tab. Formula DLX 500 LC.
-
51504099200 Release Spring. Formula DLX 500 LC.Release Spring. Formula DLX 500 LC.
-
52504083800 Spacer. Formula DLX 500 LC.Spacer. Formula DLX 500 LC.
-
53501022100 Protector. Formula DLX 500 LC.Protector. Formula DLX 500 LC.
-
54233601416 Elastic Stop Nut M10. Formula DLX 500 LC.Elastic Stop Nut M10. Formula DLX 500 LC.
-
55207084544 Hex. Screw M8 x 45. Formula DLX 500 LC.Hex. Screw M8 x 45. Formula DLX 500 LC.
-
56417000900 Spring Washer. Formula DLX 500 LC.Spring Washer. Formula DLX 500 LC.
-
57414773200 O-Ring. Formula DLX 500 LC.O-Ring. Formula DLX 500 LC.
-
58371801300 Cotter Pin. Formula DLX 500 LC.Cotter Pin. Formula DLX 500 LC.
-
59504151883 Drive Chain (72 Links). Formula DLX 500 LC.Drive Chain (72 Links). Formula DLX 500 LC.
-
60234001460 Flat Washer 10 mm. Formula DLX 500 LC.Flat Washer 10 mm. Formula DLX 500 LC.
-
61504094300 Washer. Formula DLX 500 LC.Washer. Formula DLX 500 LC.
-
62504094602 Plate. Formula DLX 500 LC.Plate. Formula DLX 500 LC.
-
63207151444 Hex. Screw M5 x 14. Formula DLX 500 LC.Hex. Screw M5 x 14. Formula DLX 500 LC.
-
64234151401 Lock Washer 5 mm. Formula DLX 500 LC.Lock Washer 5 mm. Formula DLX 500 LC.
-
65570045700 Rubber Washer. Formula DLX 500 LC.Rubber Washer. Formula DLX 500 LC.
-
66234161471 Lock Washer 6 mm. Formula DLX 500 LC.Lock Washer 6 mm. Formula DLX 500 LC.
-
67414927600 Flanged Bushing. Formula DLX 500 LC.Flanged Bushing. Formula DLX 500 LC.
-
68224081201 Washer. Formula DLX 500 LC.Washer. Formula DLX 500 LC.
-
69504098500 Cover Chaincase. Formula DLX 500 LC.Cover Chaincase. Formula DLX 500 LC.
-
70504075800 Fork. Formula DLX 500 LC.Fork. Formula DLX 500 LC.
-
71232581414 Elastic Stop Nut M8. Formula DLX 500 LC.Elastic Stop Nut M8. Formula DLX 500 LC.
-
72210261680 Screw Taptite M6 x 16. Formula DLX 500 LC.Screw Taptite M6 x 16. Formula DLX 500 LC.
-
73504142900 Shaft. Formula DLX 500 LC.Shaft. Formula DLX 500 LC.
-
74414772500 Spring Pin M5 x 20. Formula DLX 500 LC.Spring Pin M5 x 20. Formula DLX 500 LC.
-
75504095000 Support-Pivot. Formula DLX 500 LC.Support-Pivot. Formula DLX 500 LC.
-
76570048600 Alignement Rod. Formula DLX 500 LC.Alignement Rod. Formula DLX 500 LC.
-
77504094900 Weld Plate Pivoting. Formula DLX 500 LC.Weld Plate Pivoting. Formula DLX 500 LC.
-
78414773400 Ball Joint R.H. Formula DLX 500 LC.Ball Joint R.H. Formula DLX 500 LC.
-
79232061414 Nut M6. Formula DLX 500 LC.Nut M6. Formula DLX 500 LC.
-
80570044600 Grip. Formula DLX 500 LC.Grip. Formula DLX 500 LC.
-
81572071100 Stopper-Switch. Formula DLX 500 LC.Stopper-Switch. Formula DLX 500 LC.
-
82504073700 Shim. Formula DLX 500 LC.Shim. Formula DLX 500 LC.
-
83207162044 Hex. Screw M6 x 20. Formula DLX 500 LC.Hex. Screw M6 x 20. Formula DLX 500 LC.
-
84414362300 Seal. Formula DLX 500 LC.Seal. Formula DLX 500 LC.
-
85210263080 Hex. Flanged Screw M6 x 30. Formula DLX 500 LC.Hex. Flanged Screw M6 x 30. Formula DLX 500 LC.
-
86572092700 Filler Cap. Includes 86 - 87. Formula DLX 500 LC.Filler Cap. Includes 86 - 87. Formula DLX 500 LC.
-
87206540490 Socket Head Set Screw M4 x 4. Formula DLX 500 LC.Socket Head Set Screw M4 x 4. Formula DLX 500 LC.
-
88207107044 Hex. Screw M10 x 70. Formula DLX 500 LC.Hex. Screw M10 x 70. Formula DLX 500 LC.
-
89364901600 Screw. Formula DLX 500 LC.Screw. Formula DLX 500 LC.
-
90207104544 Hex. Screw M10 x 45. Formula DLX 500 LC.Hex. Screw M10 x 45. Formula DLX 500 LC.
-
91390008900 Rivet. Formula DLX 500 LC.Rivet. Formula DLX 500 LC.
-
92504094700 Tie Rod (Bar). Formula DLX 500 LC.Tie Rod (Bar). Formula DLX 500 LC.
-
93293800060 Loctite 243, 10 ml. Formula DLX 500 LC.Loctite 243, 10 ml. Formula DLX 500 LC.
-
94232551414 Elastic Stop Nut M5. Formula DLX 500 LC.Elastic Stop Nut M5. Formula DLX 500 LC.
-
95414805102 Back-Up Alarm. Formula DLX 500 LC.Back-Up Alarm. Formula DLX 500 LC.
-
96389804300 Push Nut. Formula DLX 500 LC.Push Nut. Formula DLX 500 LC.
-
97232561414 Elastic Stop Nut M6. Formula DLX 500 LC.Elastic Stop Nut M6. Formula DLX 500 LC.
-
98293800005 Loctite 271, 10 ml. Formula DLX 500 LC.Loctite 271, 10 ml. Formula DLX 500 LC.
-
99504151925 Oil Seal Ass'y. Formula DLX 500 LC.Oil Seal Ass'y. Formula DLX 500 LC.
-
100413702700 Loctite 515, Paste Gasket, 50 ml. Formula DLX 500 LC.Loctite 515, Paste Gasket, 50 ml. Formula DLX 500 LC.
-
101293800023 Loctite 767, Antiseize Lubricant, 454 g. Formula DLX 500 LC.Loctite 767, Antiseize Lubricant, 454 g. Formula DLX 500 LC.
-
102414805101 Plastic Nut. Formula DLX 500 LC.Plastic Nut. Formula DLX 500 LC.
-
103296000309 Sealant Silicone, Clear. Formula DLX 500 LC.Sealant Silicone, Clear. Formula DLX 500 LC.
-
104414784900 Circlip (Interior). Formula DLX 500 LC.Circlip (Interior). Formula DLX 500 LC.
-
105405403900 Ball Bearing 6206. Formula DLX 500 LC.Ball Bearing 6206. Formula DLX 500 LC.
-
106413803300 Synthetic Chaincase Oil. (12 x 355 ml) Formula DLX 500 LC.Synthetic Chaincase Oil. (12 x 355 ml) Formula DLX 500 LC.
-
107515175152 Switch Ass'y. Includes 107 - 110. Formula DLX 500 LC.Switch Ass'y. Includes 107 - 110. Formula DLX 500 LC.
-
108409010300 Female Terminal (18 Ga.). Formula DLX 500 LC.Female Terminal (18 Ga.). Formula DLX 500 LC.
-
109409206100 Male Terminal (20/18 Ga.). Formula DLX 500 LC.Male Terminal (20/18 Ga.). Formula DLX 500 LC.
-
110409008200 Male Connector Housing (2 Circuits). Formula DLX 500 LC.Male Connector Housing (2 Circuits). Formula DLX 500 LC.
-
111409204600 Female Connector Housing (2 Circuits). Formula DLX 500 LC.Female Connector Housing (2 Circuits). Formula DLX 500 LC.
-
112561503100 Female Terminal. Formula DLX 500 LC.Female Terminal. Formula DLX 500 LC.
-
113414575600 Hair Pin. Formula DLX 500 LC.Hair Pin. Formula DLX 500 LC.
