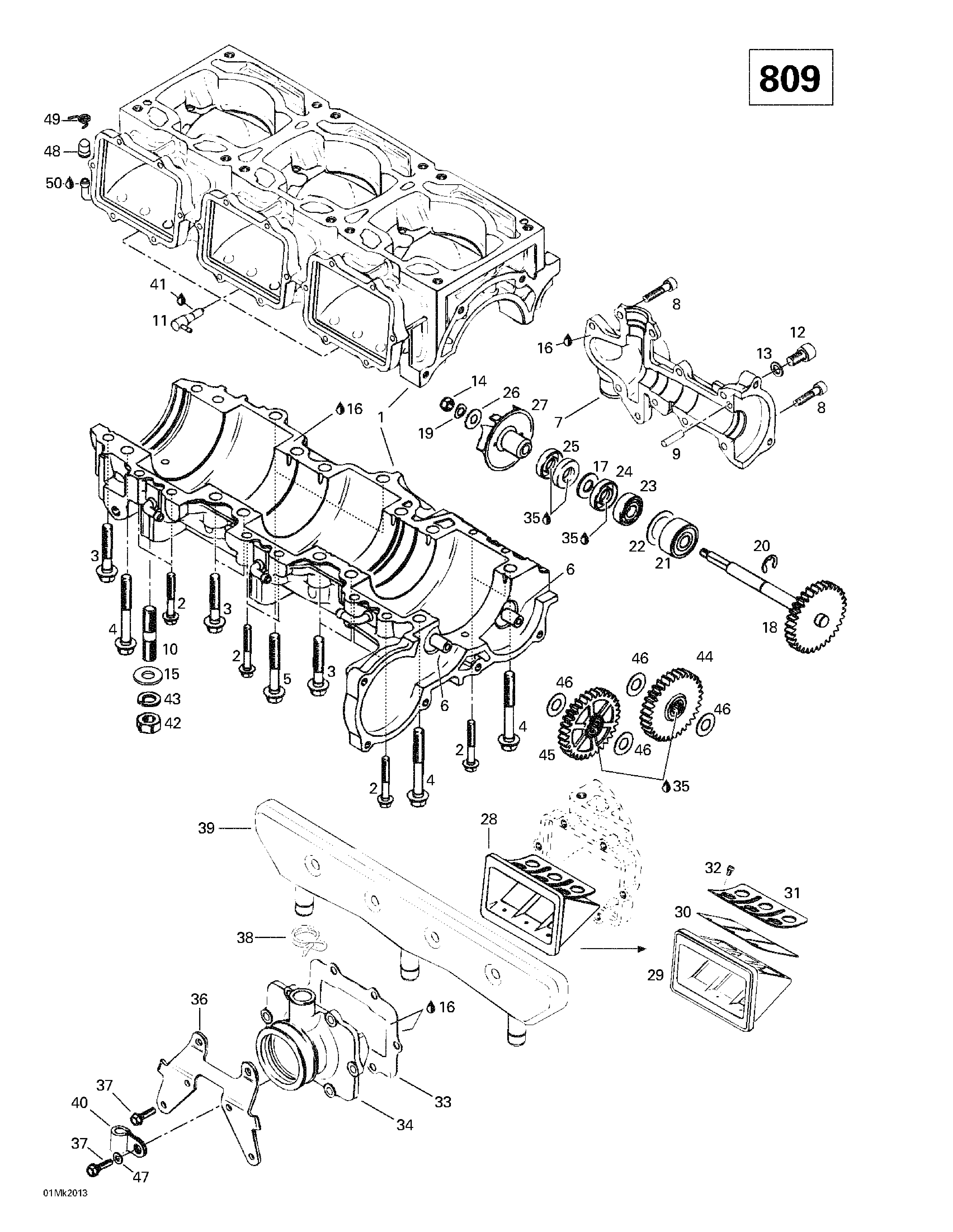

01- Crankcase, Reed Valve, Water Pump 2 для BRP Ski-Doo Formula III 700 R - 2000
-
№АртикулНазвание
-
1420888523 Crankcase Water Pump Cover Ass'y. Includes 1 - 13. Formula III 800.Crankcase Water Pump Cover Ass'y. Includes 1 - 13. Formula III 800.
-
2420941451 Collar Hex. Screw M6 x 40. Formula III 800.Collar Hex. Screw M6 x 40. Formula III 800.
-
3420940636 Collar Hex. Screw M8 x 45. Formula III 800.Collar Hex. Screw M8 x 45. Formula III 800.
-
4420841996 Collar Hex. Screw M8 x 68.5. Formula III 800.Collar Hex. Screw M8 x 68.5. Formula III 800.
-
5420240326 Collar Hex. Screw M8 x 53.5. Formula III 800.Collar Hex. Screw M8 x 53.5. Formula III 800.
-
6420929935 Intermediate Gear Shaft. Formula III 800.Intermediate Gear Shaft. Formula III 800.
-
8205062544 Socket Head Screw M6 x 25. Formula III 800.Socket Head Screw M6 x 25. Formula III 800.
-
9420429230 Dowel Pin. Formula III 800.Dowel Pin. Formula III 800.
-
10420940400 Stud M10 x 25. Formula III 800.Stud M10 x 25. Formula III 800.
-
11420956510 Check Valve. Formula III 800.Check Valve. Formula III 800.
-
12205081644 Socket Head Screw M8 x 16. Formula III 800.Socket Head Screw M8 x 16. Formula III 800.
-
13420950141 Sealing Ring. Formula III 800.Sealing Ring. Formula III 800.
-
14420842042 Locking Nut M6. Formula III 800.Locking Nut M6. Formula III 800.
-
15234401410 Flat Washer 10 mm. Formula III 800.Flat Washer 10 mm. Formula III 800.
-
16413702700 Loctite 515, 50 ml. Formula III 800.Loctite 515, 50 ml. Formula III 800.
-
17420927410 Washer 10.3. Formula III 800.Washer 10.3. Formula III 800.
-
18420837435 Waterpump - Shaft/Gear Ass'y. Formula III 800.Waterpump - Shaft/Gear Ass'y. Formula III 800.
-
19420845020 Spring Washer. Formula III 800.Spring Washer. Formula III 800.
-
20420845390 Retaining Ring. Formula III 800.Retaining Ring. Formula III 800.
-
21420832490 Ball Bearing. Formula III 800.Ball Bearing. Formula III 800.
-
22420944466 Shim 1 mm. Formula III 800.Shim 1 mm. Formula III 800.
-
23420232100 Ball Bearing. Formula III 800.Ball Bearing. Formula III 800.
-
24420230195 Oil Seal. Formula III 800.Oil Seal. Formula III 800.
-
25420950400 Oil Seal. Formula III 800.Oil Seal. Formula III 800.
-
26420227155 Washer. Formula III 800.Washer. Formula III 800.
-
27420922445 Impeller Water. Formula III 800.Impeller Water. Formula III 800.
-
28420924519 Reed Valve Ass'y. Includes 28 - 32. Formula III 800.Reed Valve Ass'y. Includes 28 - 32. Formula III 800.
-
30420924532 Reed Pedal. Formula III 800.Reed Pedal. Formula III 800.
-
31420924539 Reed Pedal Stop. Formula III 800.Reed Pedal Stop. Formula III 800.
-
32420941215 Oval-Head Screw M3 x 5. Formula III 800.Oval-Head Screw M3 x 5. Formula III 800.
-
33420950292 Gasket 1mm. Formula III 800.Gasket 1mm. Formula III 800.
-
34420867849 Intake Socket. Formula III 800.Intake Socket. Formula III 800.
-
35413707000 Molykote 111. Formula III 800.Molykote 111. Formula III 800.
-
36420851351 Carrier. Formula III 800.Carrier. Formula III 800.
-
37420841555 Taptite Screw M5 x 20. Formula III 800.Taptite Screw M5 x 20. Formula III 800.
-
38420851360 Clamp. Formula III 800.Clamp. Formula III 800.
-
39420867797 Intake Resonator. Formula III 800.Intake Resonator. Formula III 800.
-
40414176000 Cable Clip. Formula III 800.Cable Clip. Formula III 800.
-
41413711400 Loctite 648, 10 ml. Formula III 800.Loctite 648, 10 ml. Formula III 800.
-
42232006414 Hex. Nut M10. Formula III 800.Hex. Nut M10. Formula III 800.
-
43234100602 Lock Washer 10 mm. Formula III 800.Lock Washer 10 mm. Formula III 800.
-
44420834266 Sprocket 32 T. Formula III 800.Sprocket 32 T. Formula III 800.
-
45420834267 Sprocket 32 T. Formula III 800.Sprocket 32 T. Formula III 800.
-
46420927952 Thrust Washer. Formula III 800.Thrust Washer. Formula III 800.
-
47420827800 Washer 5.5. Formula III 800.Washer 5.5. Formula III 800.
-
48420960770 Cap. Formula III 800.Cap. Formula III 800.
-
49420938190 Clamp. Formula III 800.Clamp. Formula III 800.
-
50420297906 Sealing Compound. Formula III 800.Sealing Compound. Formula III 800.
