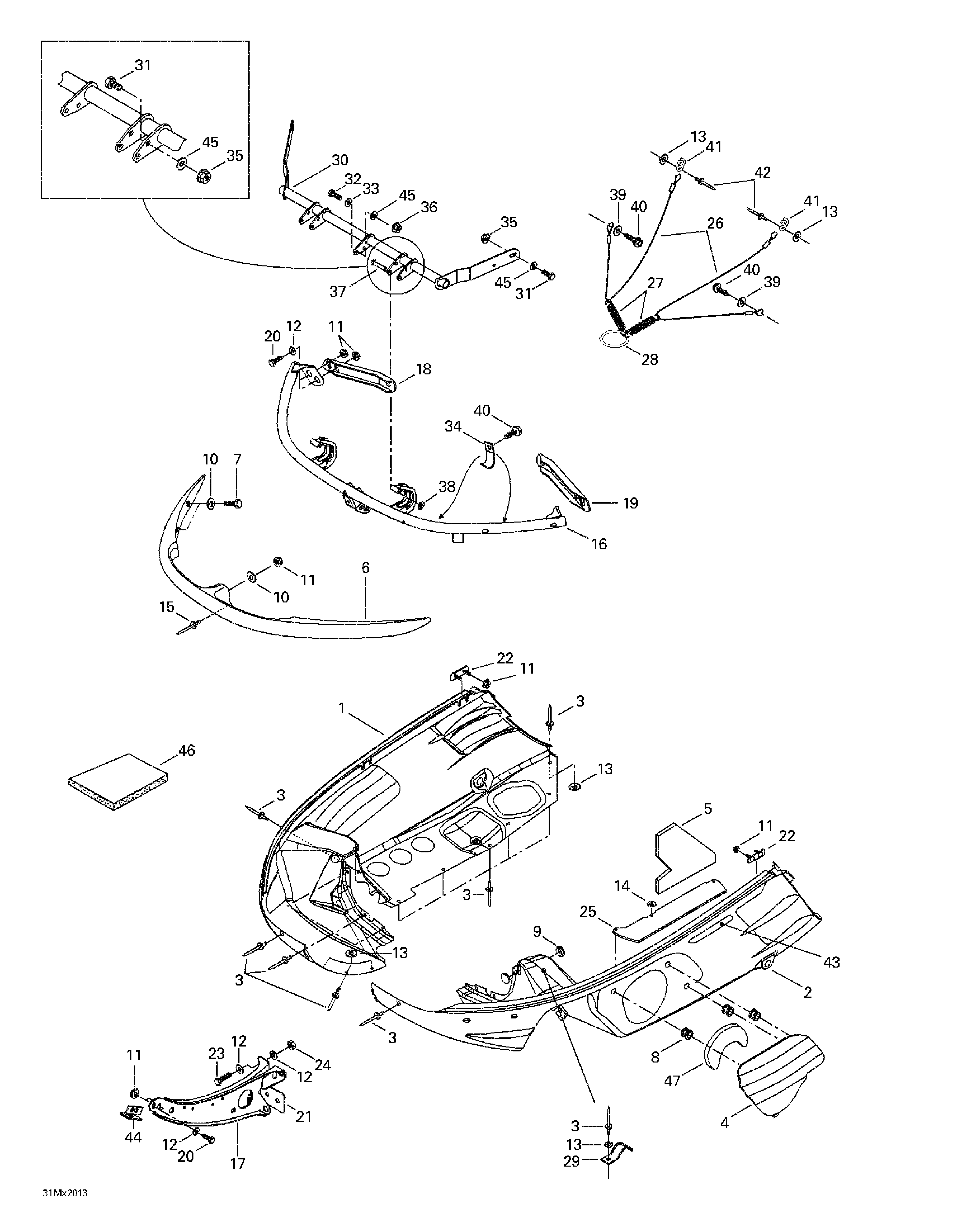

09- Bottom Pan для BRP Ski-Doo Formula III 700 R - 2000
-
№АртикулНазвание
-
1502006528 R.H. Bottom Pan (Solid Purple)R.H. Bottom Pan (Solid Purple)
-
2502006529 L.H. Bottom Pan (Solid Purple)L.H. Bottom Pan (Solid Purple)
-
3390409600 Pop Rivet (Black)Pop Rivet (Black)
-
4502006530 Bottom Pan Door (Solid Purple)Bottom Pan Door (Solid Purple)
-
5415111300 Bottom Pan FoamBottom Pan Foam
-
6572087200 Front BumperFront Bumper
-
7207063044 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
8414036300 GrommetGrommet
-
9414916600 PlugPlug
-
10224061201 Flat WasherFlat Washer
-
11233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
12224061121 Flat washerFlat washer
-
13517124300 WasherWasher
-
14517225900 Flat WasherFlat Washer
-
15390906800 Pop RivetPop Rivet
-
16502006523 Hinge BracketHinge Bracket
-
17502006549 Center SupportCenter Support
-
18517288400 R.H. SupportR.H. Support
-
19517288500 L.H. SupportL.H. Support
-
20207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
21517288600 PlatePlate
-
22517294300 BracketBracket
-
23207066044 Hex. Screw M6 x 60Hex. Screw M6 x 60
-
24232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
25517299500 ProtectorProtector
-
26415093900 Retainer CableRetainer Cable
-
27414185600 SpringSpring
-
28415058300 RingRing
-
29517274400 BracketBracket
-
30517302187 HingeHinge
-
31207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
32207141644 Hex. Screw M4 x 16Hex. Screw M4 x 16
-
33391301000 Flat WasherFlat Washer
-
34515175160 Cable BracketCable Bracket
-
35233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
36233241414 Elastic Flanged Nut M4Elastic Flanged Nut M4
-
37390004800 RivetRivet
-
38389804300 Push NutPush Nut
-
39391301600 Flat WasherFlat Washer
-
40365901100 Hex. Tapping ScrewHex. Tapping Screw
-
41517262800 BracketBracket
-
42390406500 Pop RivetPop Rivet
-
43415064400 R.H. Reflector (Yellow)R.H. Reflector (Yellow)
-
415064401 L.H. Reflector (Yellow)L.H. Reflector (Yellow)
-
44517302009 Front SupportFront Support
-
45420845270 WasherWasher
-
46414632400 Foam-Acoustic (74 x 34 x 1/2 Thk)Foam-Acoustic (74 x 34 x 1/2 Thk)
-
414631900 Foam-Acoustic (74 x 34 x 1 Thk)Foam-Acoustic (74 x 34 x 1 Thk)
-
47415112800 Door FoamDoor Foam
