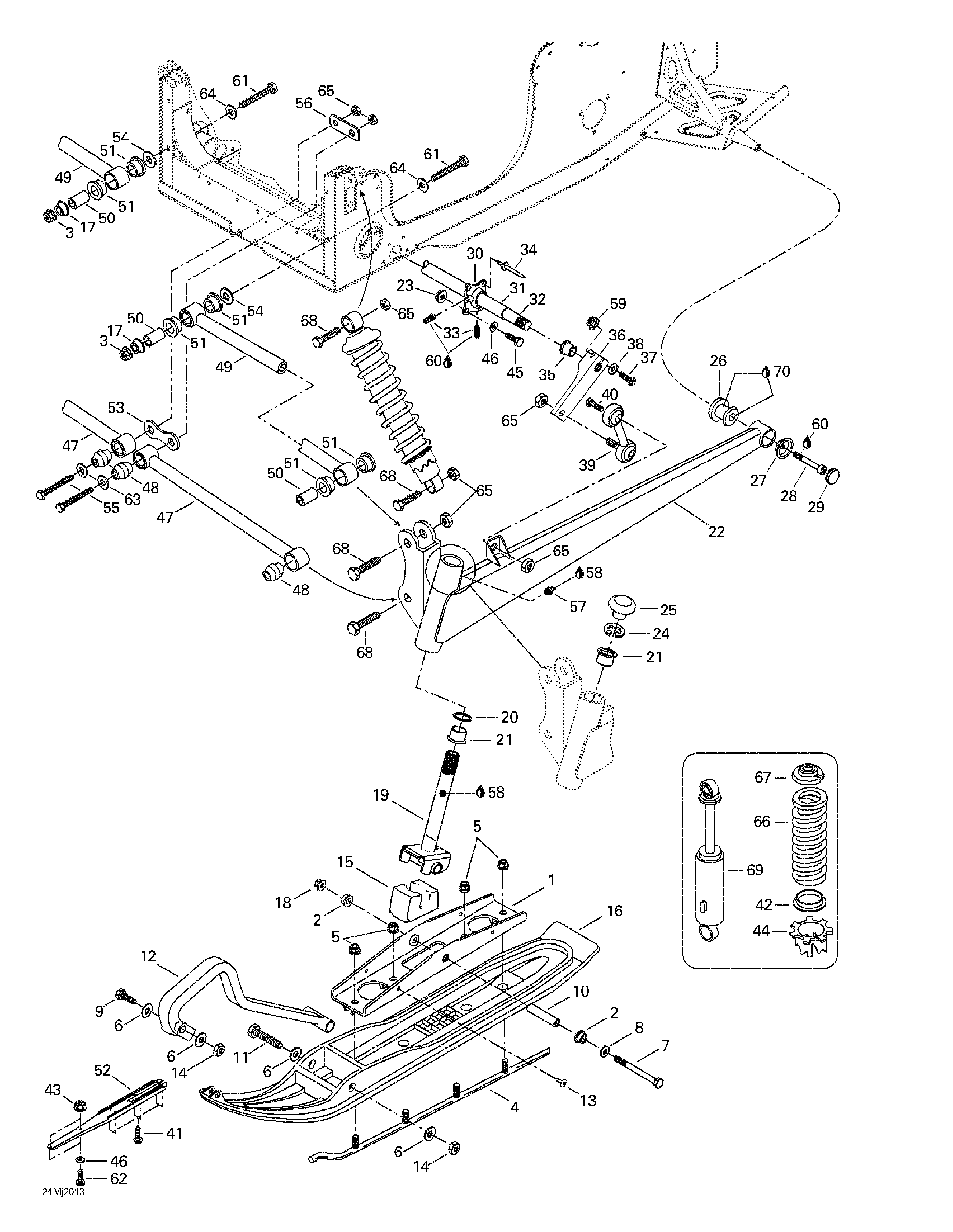

07- Front Suspension для BRP Ski-Doo Formula III 700 R - 2000
-
№АртикулНазвание
-
1505070055 Bridge Ass'y. Includes 1 - 2.Bridge Ass'y. Includes 1 - 2.
-
505070479 Bridge Ass'yBridge Ass'y
-
2505070001 BushingBushing
-
3233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
4860501900 Carbide Runner Kit. Includes 4 - 5.Carbide Runner Kit. Includes 4 - 5.
-
5233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
6234081410 Flat Washer 8 mmFlat Washer 8 mm
-
7250000001 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
8732900049 WasherWasher
-
9207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
10506133300 SpacerSpacer
-
11230080044 Hex. Screw M8 x 100Hex. Screw M8 x 100
-
12572101000 Plastic HandlePlastic Handle
-
13390911100 Pop RivetPop Rivet
-
14232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
15506151233 Ski StopperSki Stopper
-
16505070189 Flexible Ski Liner (Black)Flexible Ski Liner (Black)
-
17506148400 SpacerSpacer
-
18233201414 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
19506151234 Ski LegSki Leg
-
20505070004 WasherWasher
-
21505070003 CushionCushion
-
22505070386 R.H. Swing ArmR.H. Swing Arm
-
505070387 L.H. Swing ArmL.H. Swing Arm
-
23233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
24371910400 CirclipCirclip
-
25572091300 CapCap
-
26570062700 DamperDamper
-
27506128500 CupCup
-
28205002544 Socket Head Screw M10 x 25Socket Head Screw M10 x 25
-
29572045900 CapCap
-
30505070276 R.H. HousingR.H. Housing
-
506138900 L.H. HousingL.H. Housing
-
31506136200 Main TubeMain Tube
-
32506134300 StabilizatorStabilizator
-
33414440800 Set Screw M8 x 10Set Screw M8 x 10
-
34390404900 Pop RivetPop Rivet
-
35415039500 CushionCushion
-
36506134402 Stabilizer LeverStabilizer Lever
-
37207084544 Hex. Screw M8 x 45Hex. Screw M8 x 45
-
38224081410 Flat Washer 8 mmFlat Washer 8 mm
-
39415101400 Double Ball JointDouble Ball Joint
-
40207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
41250000016 Screw 10-14 x 5/8''Screw 10-14 x 5/8''
-
42503165100 Spring GuideSpring Guide
-
43233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
44503169000 CamCam
-
45207162544 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
46234061410 Flat Washer 6 mmFlat Washer 6 mm
-
47505070140 Lower Arm Ass'y. Includes 47 - 48.Lower Arm Ass'y. Includes 47 - 48.
-
48505070025 BushingBushing
-
49505070405 Adjustable Arm Ass'y. Includes 49 - 51.Adjustable Arm Ass'y. Includes 49 - 51.
-
50505070143 BushingBushing
-
51506149100 CushionCushion
-
52505070232 Proactif ControlProactif Control
-
53506147900 PlatePlate
-
54506148100 WasherWasher
-
55207008544 Hex. Screw M10 x 85Hex. Screw M10 x 85
-
56506148300 PlatePlate
-
57408200700 Grease FittingGrease Fitting
-
58219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
59233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
60293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
61230001044 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
62250000015 Socket Head Screw M5 x 25Socket Head Screw M5 x 25
-
63503175800 WasherWasher
-
64399910100 Flat WasherFlat Washer
-
65233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
66505070153 SpringSpring
-
67503140600 Spring StopperSpring Stopper
-
68207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
69505070171 Front ShockFront Shock
-
70293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
