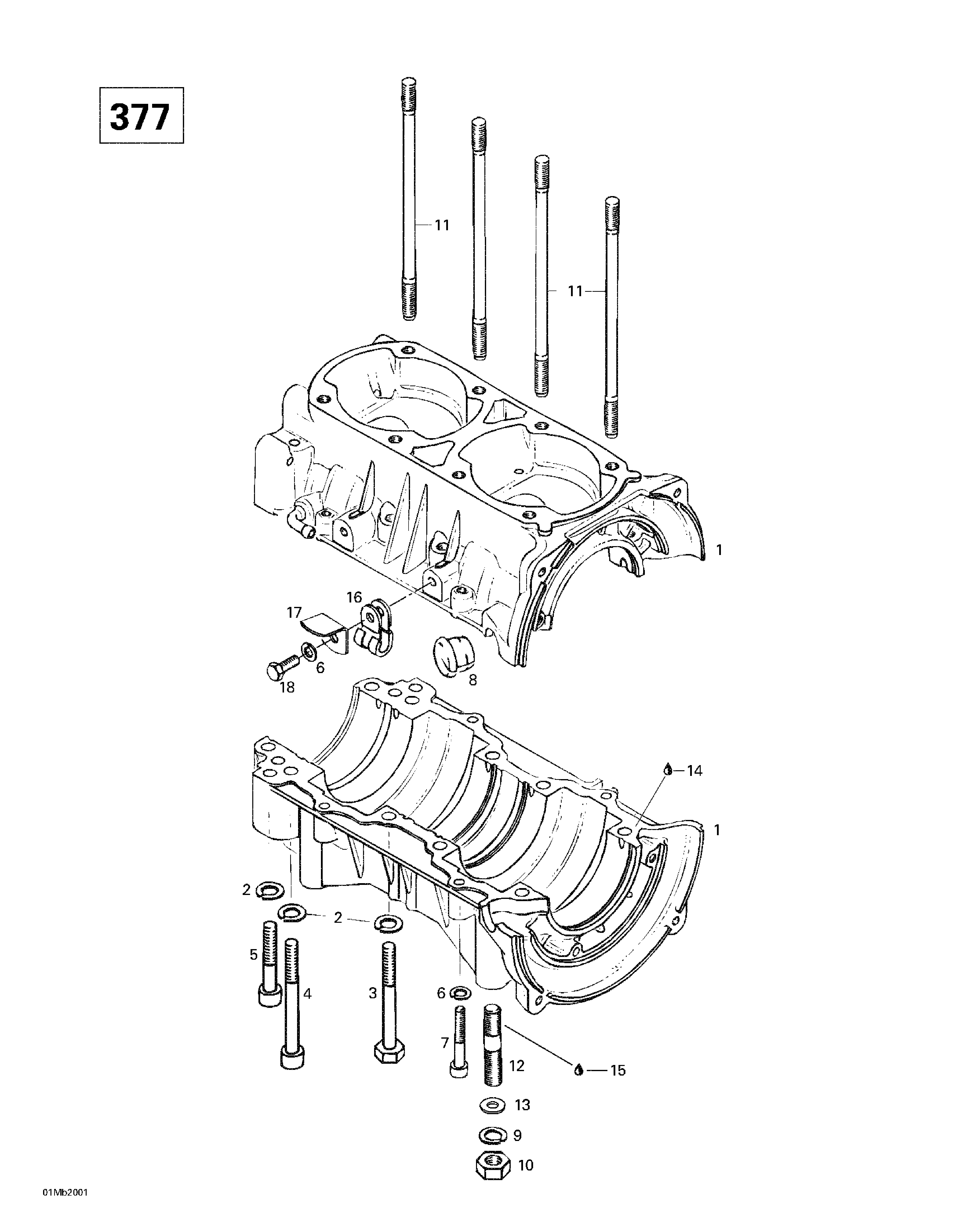

01- Crankcase (377) для BRP Ski-Doo Formula S - 2000
-
№АртикулНазвание
-
1420887784 Crankcase Ass'y. Includes 1 - 8. Formula S. Formula DLX 380.Crankcase Ass'y. Includes 1 - 8. Formula S. Formula DLX 380.
-
2420945752 Lock Washer 8 mm. Formula S. Formula DLX 380.Lock Washer 8 mm. Formula S. Formula DLX 380.
-
3420841201 Hex. Screw M8 x 70. Formula S. Formula DLX 380.Hex. Screw M8 x 70. Formula S. Formula DLX 380.
-
4420841831 Socket Head Screw M8 x 75. Formula S. Formula DLX 380.Socket Head Screw M8 x 75. Formula S. Formula DLX 380.
-
5420841566 Socket Head Screw M8 x 50. Formula S. Formula DLX 380.Socket Head Screw M8 x 50. Formula S. Formula DLX 380.
-
6420945751 Lock Washer 6 mm. Formula S. Formula DLX 380.Lock Washer 6 mm. Formula S. Formula DLX 380.
-
7420241816 Socket Head Screw M6 x 40. Formula S. Formula DLX 380.Socket Head Screw M6 x 40. Formula S. Formula DLX 380.
-
8420860962 Cable Grommet. Formula S. Formula DLX 380.Cable Grommet. Formula S. Formula DLX 380.
-
9234100602 Lock Washer 10 mm. Formula S. Formula DLX 380.Lock Washer 10 mm. Formula S. Formula DLX 380.
-
10232006414 Nut M10. Formula S. Formula DLX 380.Nut M10. Formula S. Formula DLX 380.
-
11420841149 Stud M8 x 167. Formula S. Formula DLX 380.Stud M8 x 167. Formula S. Formula DLX 380.
-
12420640140 Stud M10. Formula S. Formula DLX 380.Stud M10. Formula S. Formula DLX 380.
-
13234001410 Flat Washer 10 mm. Formula S. Formula DLX 380.Flat Washer 10 mm. Formula S. Formula DLX 380.
-
14413702700 Loctite 515, 50 ml. Formula S. Formula DLX 380.Loctite 515, 50 ml. Formula S. Formula DLX 380.
-
15293800060 Loctite 243, 10ml. Formula S. Formula DLX 380.Loctite 243, 10ml. Formula S. Formula DLX 380.
-
16414176000 Cable Clip. Formula S.Cable Clip. Formula S.
-
17420953310 Support. Formula S.Support. Formula S.
-
18207161644 Hex. Screw M6 x 16. Formula S.Hex. Screw M6 x 16. Formula S.
