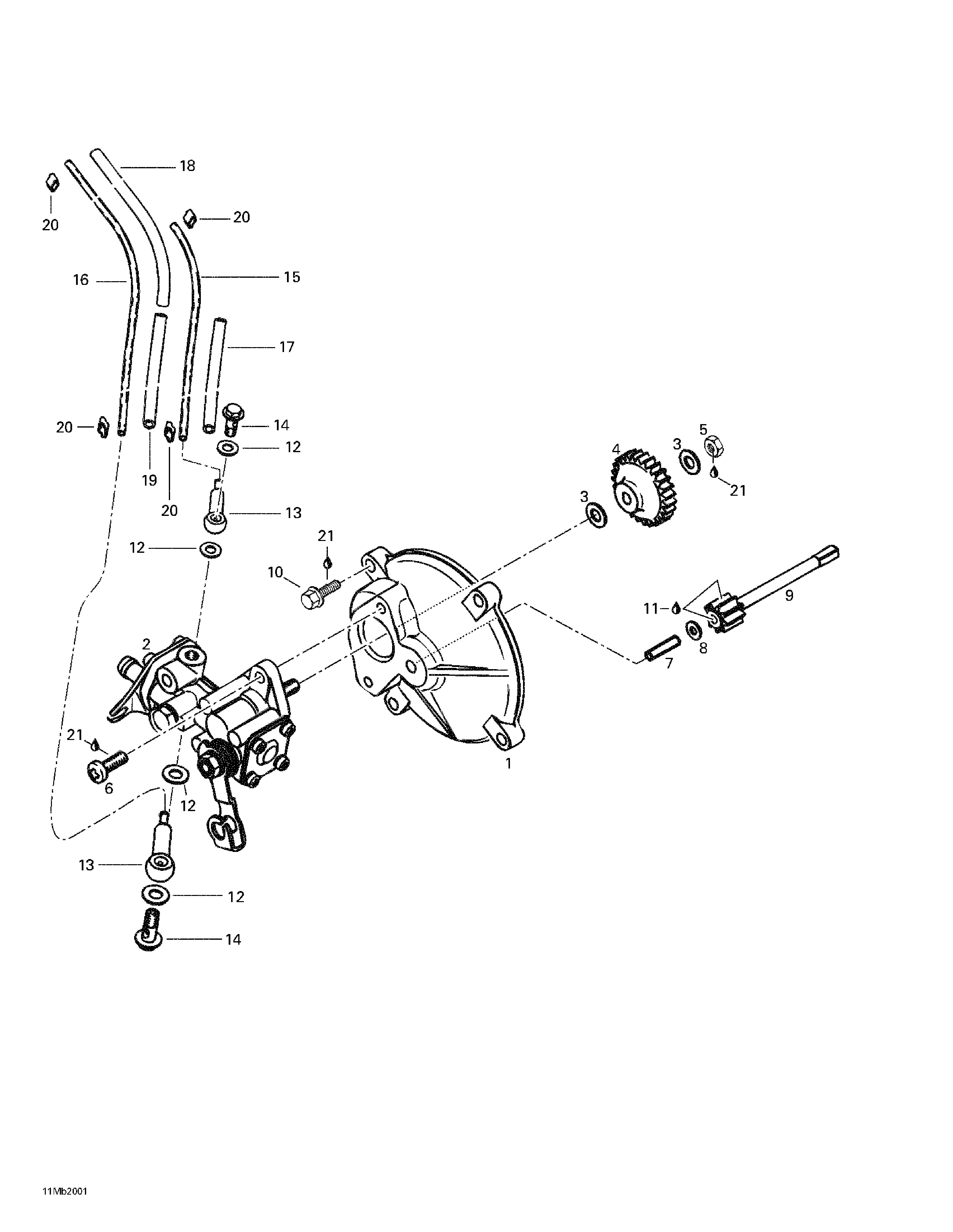

02- Oil Injection System для BRP Ski-Doo Formula S - 2000
-
№АртикулНазвание
-
1420910160 Oil Pump Mounting FlangeOil Pump Mounting Flange
-
2420887991 Oil Pump Ass'y. Formula S.Oil Pump Ass'y. Formula S.
-
420887997 Oil Pump Ass'y. Formula DLX 380.Oil Pump Ass'y. Formula DLX 380.
-
420887996 Oil Pump Ass'y. Formula DLX 500.Oil Pump Ass'y. Formula DLX 500.
-
3420927945 WasherWasher
-
4420935930 Oil Pump Gear (27 Tooth)Oil Pump Gear (27 Tooth)
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6420841970 Plastite Screw M5.5 x 16Plastite Screw M5.5 x 16
-
7420832260 Needle Pin B4 x 17.8Needle Pin B4 x 17.8
-
8420244073 Washer 4.3 mmWasher 4.3 mm
-
9420935970 Gear (9 Tooth)Gear (9 Tooth)
-
10420841970 ScrewScrew
-
11413707000 Molykote 111Molykote 111
-
12404146600 Gasket RingGasket Ring
-
13420956010 Check Valve Ass'yCheck Valve Ass'y
-
14404146800 Banjo Bolt M6 x 16Banjo Bolt M6 x 16
-
15414413800 MAG Side Oil Line 210 mmMAG Side Oil Line 210 mm
-
16414413800 P.T.O Side Oil Line 360 mmP.T.O Side Oil Line 360 mm
-
17420960750 Isolating Hose 90 mmIsolating Hose 90 mm
-
18420960729 Isolating Hose 150 mmIsolating Hose 150 mm
-
19420960728 Isolating Hose 120 mmIsolating Hose 120 mm
-
20420853840 ClampClamp
-
21293800060 Loctite 243, 10mlLoctite 243, 10ml
