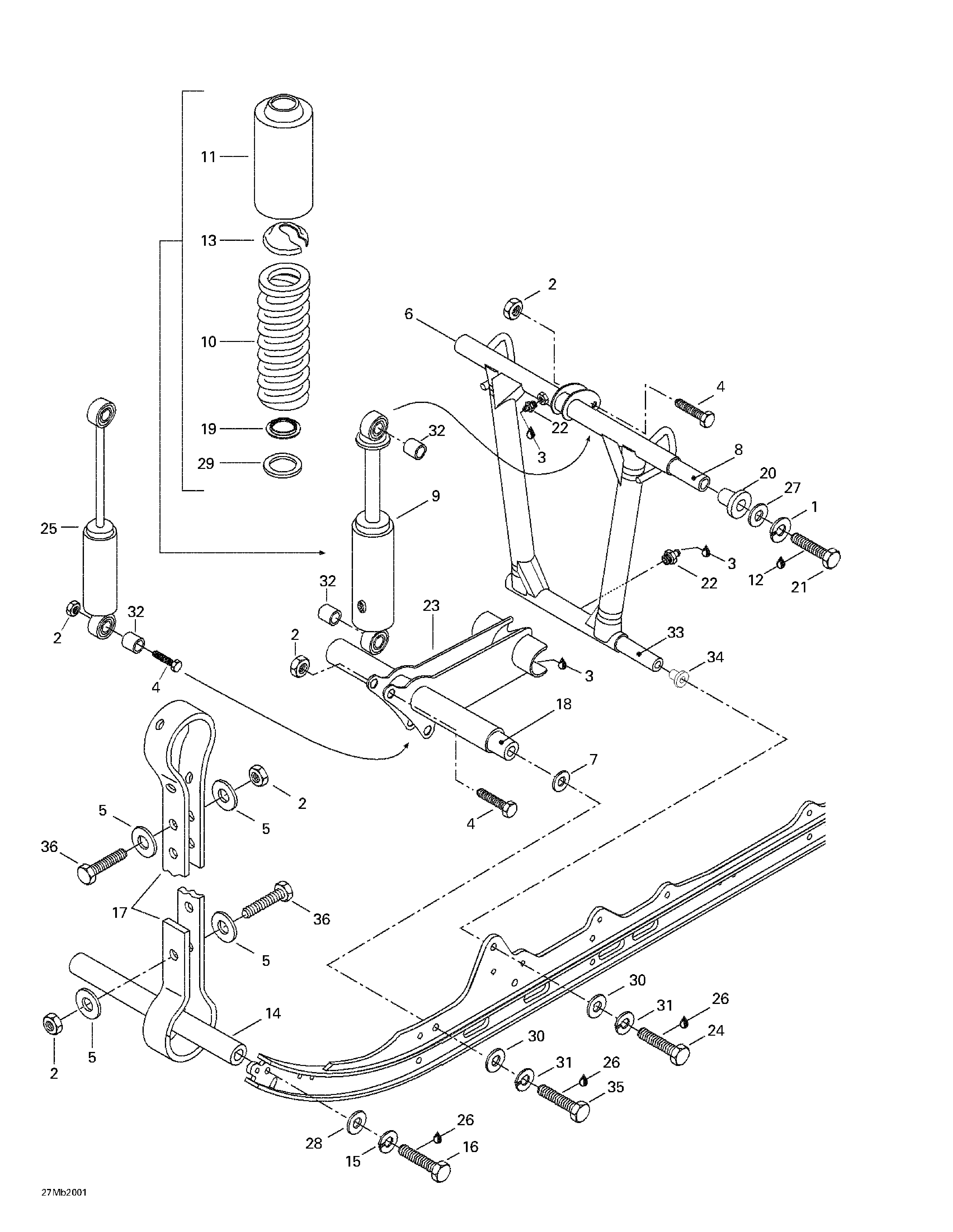

08- Front Arm для BRP Ski-Doo Formula S - 2000
-
№АртикулНазвание
-
1234101601 Lock Washer 10 mmLock Washer 10 mm
-
2232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
3219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
4207084044 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
5517078700 WasherWasher
-
6503189311 Welded Front ArmWelded Front Arm
-
7503175400 Hard WasherHard Washer
-
8503188938 Upper AxleUpper Axle
-
9503189174 Shock. Formula S.Shock. Formula S.
-
503189331 Shock. Formula DLX 380.Shock. Formula DLX 380.
-
10415069900 SpringSpring
-
11503188930 Protector. Formula S.Protector. Formula S.
-
12293800060 Loctite 243, 10mlLoctite 243, 10ml
-
13503140600 Spring StopperSpring Stopper
-
14503151600 AxleAxle
-
15234181401 Lock Washer 8 mmLock Washer 8 mm
-
16207183044 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
17503189362 Stopper StrapStopper Strap
-
18503174800 Lower AxleLower Axle
-
19503165100 Spring Guide. Formula S.Spring Guide. Formula S.
-
503187500 Spring Guide. Formula DLX 380. Formula DLX 500.Spring Guide. Formula DLX 380. Formula DLX 500.
-
20503189324 CushionCushion
-
21207006044 Screw Hex. M10 x 60Screw Hex. M10 x 60
-
22408200700 Grease Fitting M6Grease Fitting M6
-
23503182100 Welded Shock SupportWelded Shock Support
-
24207026044 Hex. Screw M12 x 60Hex. Screw M12 x 60
-
25503188905 Shock. Formula S.Shock. Formula S.
-
503188973 Shock. Formula DLX 380. Formula DLX 500.Shock. Formula DLX 380. Formula DLX 500.
-
26293800005 Loctite 271, 10mlLoctite 271, 10ml
-
27234001410 Flat Washer 10 mmFlat Washer 10 mm
-
28234081410 Flat Washer 8 mmFlat Washer 8 mm
-
29503184400 Washer. Formula S.Washer. Formula S.
-
505070401 Washer. Formula DLX 380. Formula DLX 500.Washer. Formula DLX 380. Formula DLX 500.
-
30234021410 Flat Washer 12 mmFlat Washer 12 mm
-
31234120602 Lock Washer 12 mmLock Washer 12 mm
-
32414936000 CushionCushion
-
414802600 Cushion (Europe). Formula S.Cushion (Europe). Formula S.
-
33503189313 ShaftShaft
-
34503189323 CushionCushion
-
35207123544 Hex. Screw M12 x 35Hex. Screw M12 x 35
-
36207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
