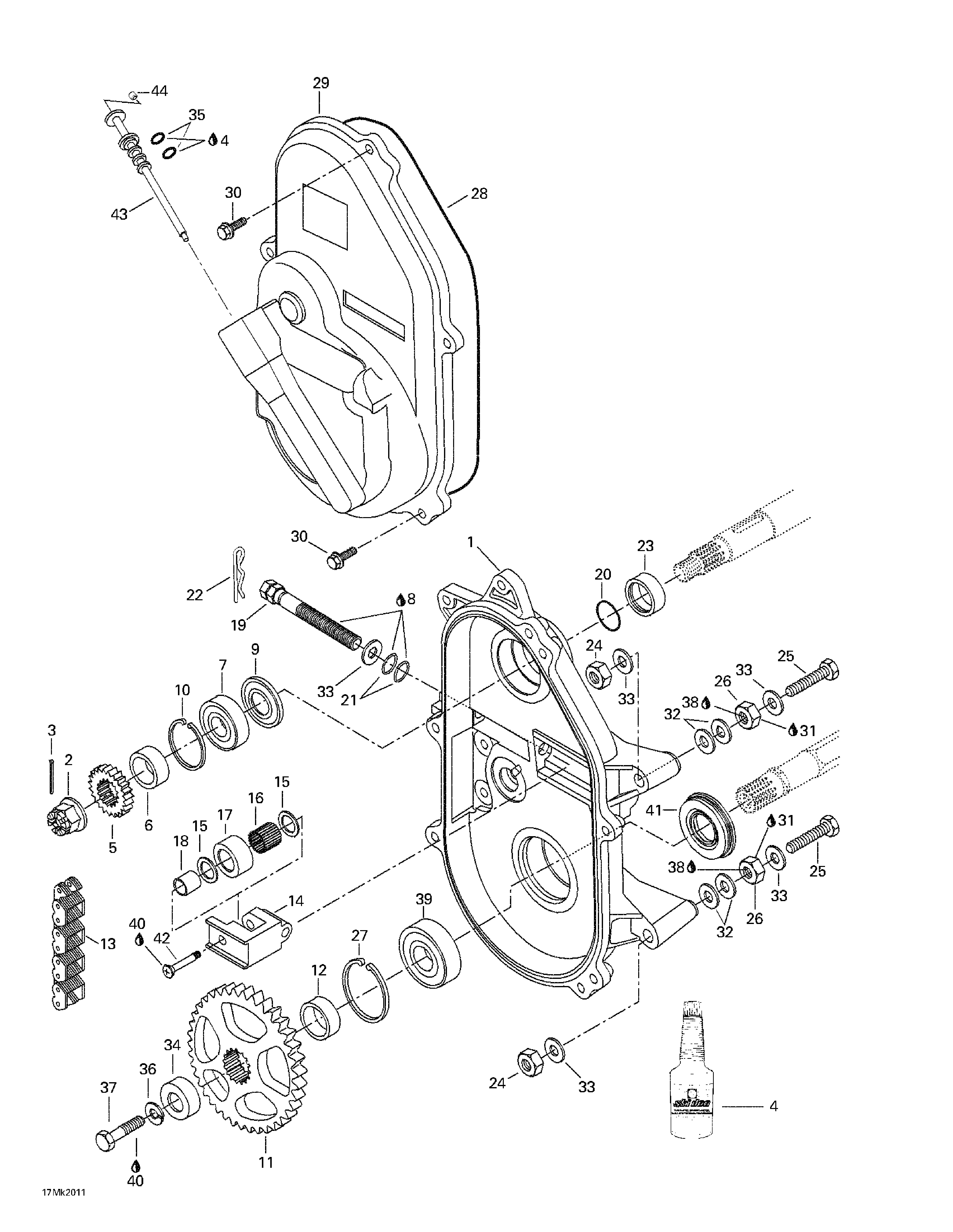

05- Chaincase для BRP Ski-Doo Mach Z R Millennium Edition - 2000
-
№АртикулНазвание
-
1504146600 ChaincaseChaincase
-
2250000012 Castellated Nut M20Castellated Nut M20
-
3371006300 Cotter PinCotter Pin
-
4413803300 Synthetic Chaincase Oil,. 12 x 355 mlSynthetic Chaincase Oil,. 12 x 355 ml
-
5504085300 Sprocket (26 Tooth, Large)Sprocket (26 Tooth, Large)
-
6504147200 ShimShim
-
7405404400 Ball Bearing 6205Ball Bearing 6205
-
8219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
9415049300 SealSeal
-
10371901700 Circlip (Interior)Circlip (Interior)
-
11504148500 Sprocket Large (43 Tooth)Sprocket Large (43 Tooth)
-
12501021800 Inner ShimInner Shim
-
13504151830 Drive Chain Large (72 Links)Drive Chain Large (72 Links)
-
14504081000 Chain TensionerChain Tensioner
-
15504080300 WasherWasher
-
16405403000 Needle BearingNeedle Bearing
-
17414531300 RollerRoller
-
18504080200 SpacerSpacer
-
19732601311 Adjustment ScrewAdjustment Screw
-
20414876700 O-RingO-Ring
-
21414484400 O-RingO-Ring
-
22414575600 Hair PinHair Pin
-
23507031500 SpacerSpacer
-
24233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
25207107544 Hex. Screw M10 x 75Hex. Screw M10 x 75
-
26504083800 SpacerSpacer
-
27414784900 Circlip (Int-rior)Circlip (Int-rior)
-
28414362300 O-RingO-Ring
-
29080039500 Chaincase CoverChaincase Cover
-
30210263080 Hex. Forming Screw M6 x 30Hex. Forming Screw M6 x 30
-
31293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
32504073700 WasherWasher
-
33234001410 Flat Washer 10 mmFlat Washer 10 mm
-
34501022400 CapCap
-
35414969400 O-RingO-Ring
-
36234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
37207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
38293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
39405403900 Ball Bearing 6206Ball Bearing 6206
-
40293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
41504151925 Oil SealOil Seal
-
42732601144 ScrewScrew
-
43572092700 Filler Cap Ass'y. Includes 43 - 44.Filler Cap Ass'y. Includes 43 - 44.
-
44206540490 Set Socket Screw M4Set Socket Screw M4
