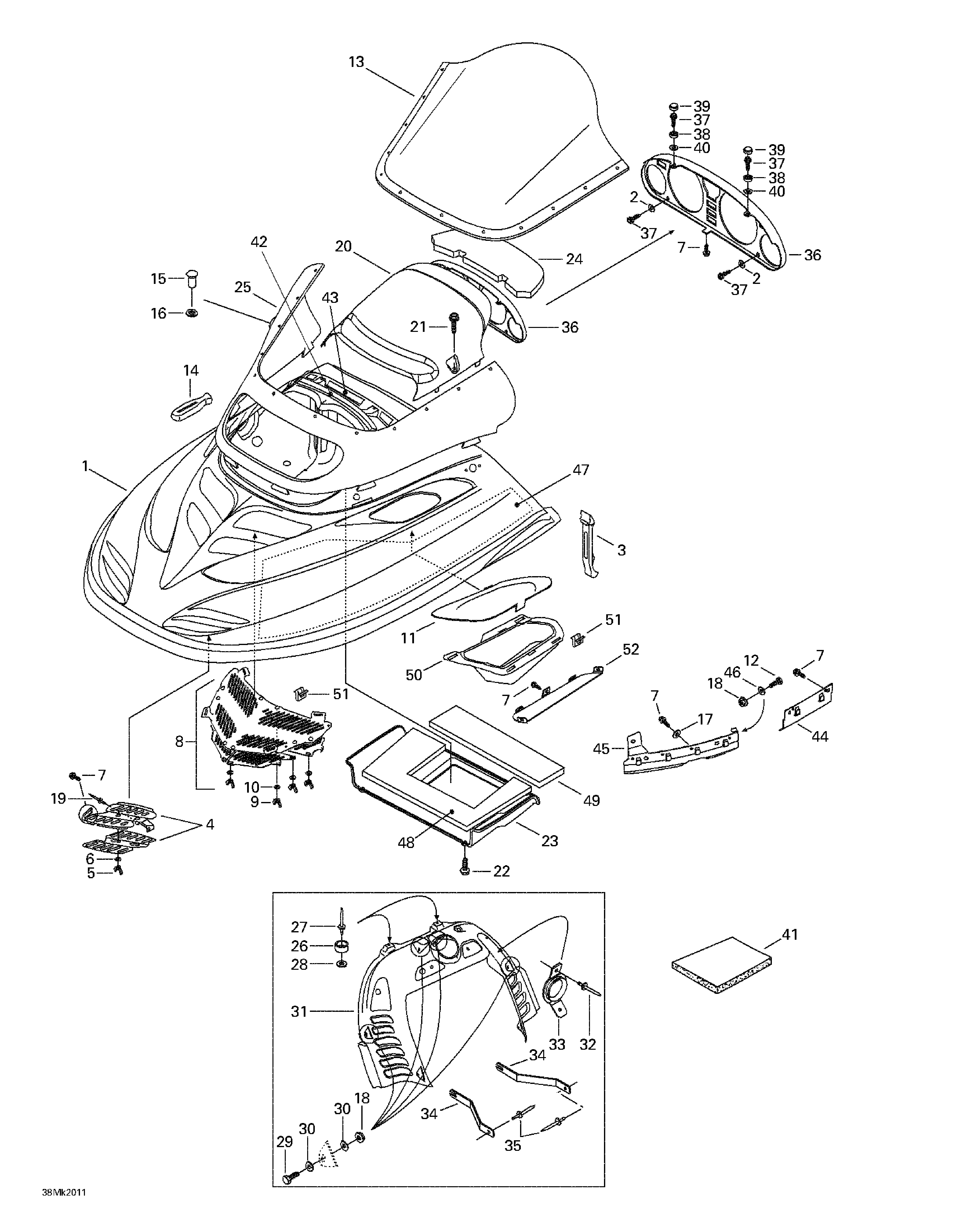

09- Cab, Console для BRP Ski-Doo Mach Z R Millennium Edition - 2000
-
№АртикулНазвание
-
1517302170 Hood (Black)Hood (Black)
-
2517124300 WasherWasher
-
3517302152 Hood LatchHood Latch
-
4517302205 R.H. Front Grill Ass'y. Includes 4 - 6. Mach Z. Mach Z R.R.H. Front Grill Ass'y. Includes 4 - 6. Mach Z. Mach Z R.
-
517302406 R.H. Front Grill Ass'y. Mach Z R Millennium Edition.R.H. Front Grill Ass'y. Mach Z R Millennium Edition.
-
517302208 L.H. Front Grill Ass'y. Mach Z. Mach Z R.L.H. Front Grill Ass'y. Mach Z. Mach Z R.
-
517302407 L.H. Front Grill Ass'y. Mach Z R Millennium Edition.L.H. Front Grill Ass'y. Mach Z R Millennium Edition.
-
5414070300 Wing Nut M5Wing Nut M5
-
6234451418 Serrated Lock Washer 5 mmSerrated Lock Washer 5 mm
-
7732601210 Hex. Tapping ScrewHex. Tapping Screw
-
8517302073 Center Grill Ass'y. Includes 8 - 10. Mach Z. Mach Z R.Center Grill Ass'y. Includes 8 - 10. Mach Z. Mach Z R.
-
517302408 Center Grill Ass'y. Mach Z R Millennium Edition.Center Grill Ass'y. Mach Z R Millennium Edition.
-
9414070300 Wing Nut M5Wing Nut M5
-
10234451418 Serrated Lock Washer 5 mmSerrated Lock Washer 5 mm
-
11517302156 R.H. Grill. Mach Z. Mach Z R.R.H. Grill. Mach Z. Mach Z R.
-
517302390 R.H. Grill (Chrome). Mach Z R Millennium Edition.R.H. Grill (Chrome). Mach Z R Millennium Edition.
-
517302167 L.H. Grill. Mach Z. Mach Z R.L.H. Grill. Mach Z. Mach Z R.
-
517302389 L.H. Grill (Chrome). Mach Z R Millennium Edition.L.H. Grill (Chrome). Mach Z R Millennium Edition.
-
12207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
13415045800 Low WindshieldLow Windshield
-
14570023800 Windshield LatchWindshield Latch
-
15572103500 StudStud
-
16732610072 Push NutPush Nut
-
17391301700 Flat WasherFlat Washer
-
18233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
19390402400 Pop Rivet 3/16Pop Rivet 3/16
-
20572107300 Air Intake DeflectorAir Intake Deflector
-
21414745900 Phillips ScrewPhillips Screw
-
22243141640 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
23572087800 Plate (Air Intake Deflector)Plate (Air Intake Deflector)
-
24415123100 Foam, FilterFoam, Filter
-
25517302076 Windshield SupportWindshield Support
-
26415018100 Rubber StopperRubber Stopper
-
27390401600 Pop Rivet 1/8Pop Rivet 1/8
-
28293150007 WasherWasher
-
29207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
30391301600 Flat WasherFlat Washer
-
31517302249 ConsoleConsole
-
32390409400 Pop Rivet 5/32Pop Rivet 5/32
-
33517296800 Rope GuideRope Guide
-
34517296900 BracketBracket
-
35390910000 Pop Rivet 3/16Pop Rivet 3/16
-
36572098600 Gauge SupportGauge Support
-
37241140060 Hex. Screw K40 x 10Hex. Screw K40 x 10
-
38414436800 Cap RetainerCap Retainer
-
39414436900 Snap CapSnap Cap
-
40234042600 Flat Washer 4 mmFlat Washer 4 mm
-
41414632400 Foam, Acoustic (74'' x 34'' x 1/2'')Foam, Acoustic (74'' x 34'' x 1/2'')
-
414631900 Foam, Acoustic (74'' x 34'' x 1'')Foam, Acoustic (74'' x 34'' x 1'')
-
42415045500 Deflector FoamDeflector Foam
-
43415110900 Velcro 1/2''Velcro 1/2''
-
44517302108 GuideGuide
-
45517301200 R.H. Hood GuideR.H. Hood Guide
-
517301300 L.H. Hood GuideL.H. Hood Guide
-
46420845270 Flat WasherFlat Washer
-
47517302184 Side Foam L.HSide Foam L.H
-
415045100 Side Foam R.HSide Foam R.H
-
48415045300 Center FoamCenter Foam
-
49415045400 Rear FoamRear Foam
-
50517302155 Inlet Duct (Left Side)Inlet Duct (Left Side)
-
51517302183 ClipClip
-
52517302414 PlatePlate
