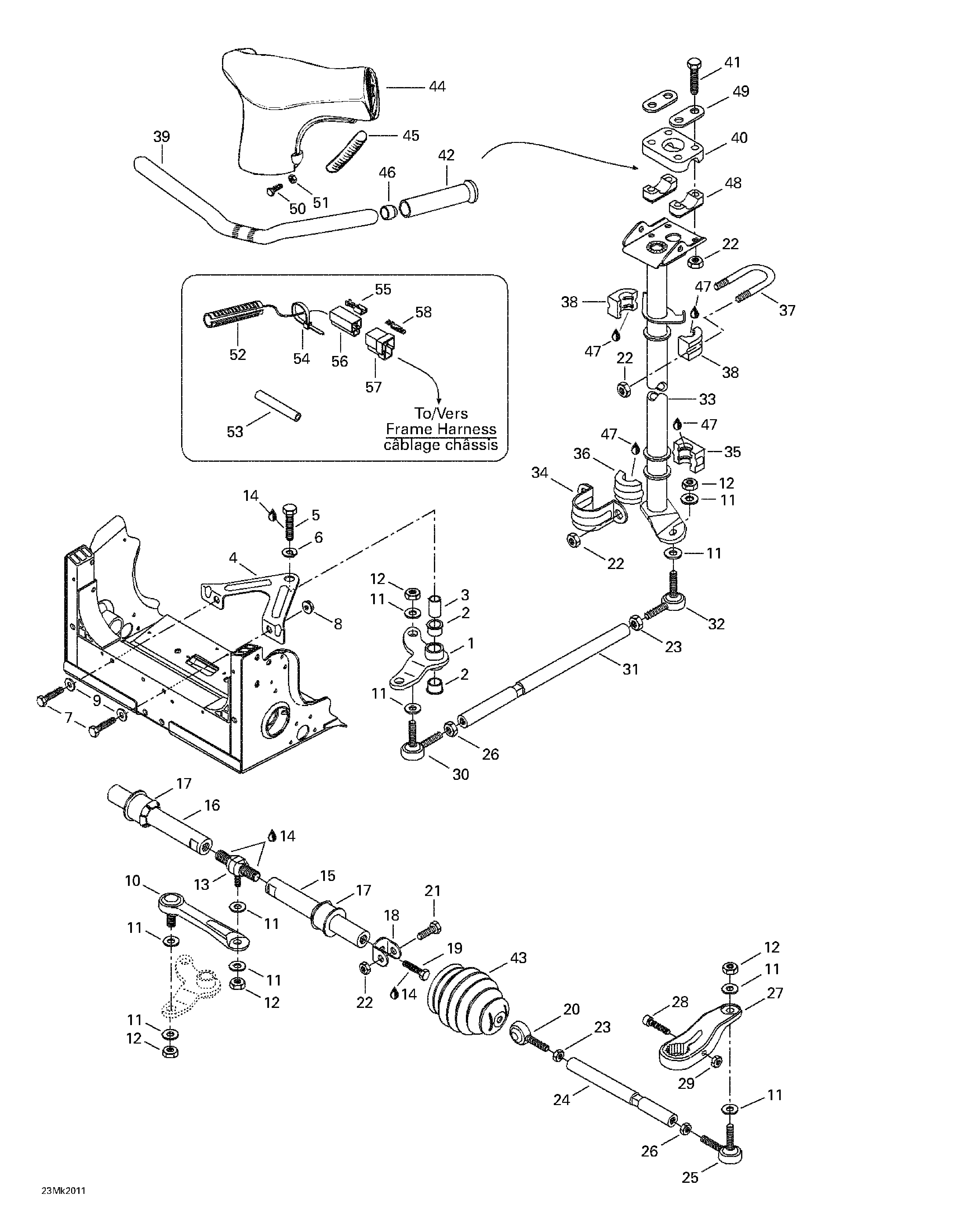

07- Steering System для BRP Ski-Doo Mach Z R Millennium Edition - 2000
-
№АртикулНазвание
-
1506129500 Pivot ArmPivot Arm
-
2415041100 CushionCushion
-
3506131500 PivotPivot
-
4506138400 Pivot SupportPivot Support
-
5207006044 Hex. Screw M10 x 60Hex. Screw M10 x 60
-
6234101411 Lock Washer 10 mmLock Washer 10 mm
-
7207066044 Hex. Screw M6 x 60Hex. Screw M6 x 60
-
8233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
9224061121 Flat WasherFlat Washer
-
10415059800 Ball Stud LeverBall Stud Lever
-
11503175800 WasherWasher
-
12232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
13415053300 Ball Joint (Double)Ball Joint (Double)
-
14293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
15506129400 Sliding Bar (Short)Sliding Bar (Short)
-
16506129402 Sliding Bar (Long)Sliding Bar (Long)
-
17572108500 CushionCushion
-
18506138300 BracketBracket
-
19207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
20415048600 L.H. Ball JointL.H. Ball Joint
-
21207084044 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
22232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
23732610011 Hex. Jam Nut M10Hex. Jam Nut M10
-
24506129600 Tie-RodTie-Rod
-
25415012400 Ball JointBall Joint
-
26732610010 Hex. Jam Nut M10Hex. Jam Nut M10
-
27506151320 R.H. Steering Arm. Mach Z. Mach Z R.R.H. Steering Arm. Mach Z. Mach Z R.
-
506151300 R.H. Steering Arm. Mach Z R Millennium Edition.R.H. Steering Arm. Mach Z R Millennium Edition.
-
506151321 L.H. Steering Arm. Mach Z. Mach Z R.L.H. Steering Arm. Mach Z. Mach Z R.
-
506151301 L.H. Steering Arm. Mach Z R Millennium Edition.L.H. Steering Arm. Mach Z R Millennium Edition.
-
28205083544 Socket Head Screw M8 x 35Socket Head Screw M8 x 35
-
29232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
30414768000 R.H. Ball JointR.H. Ball Joint
-
31506131200 Tie-RodTie-Rod
-
32414768100 L.H. Ball JointL.H. Ball Joint
-
33506151169 Main TubeMain Tube
-
34517126200 Retaining SupportRetaining Support
-
35572064400 Lower Half BushingLower Half Bushing
-
36572064500 Upper Half BushingUpper Half Bushing
-
37506060600 > Clamp> Clamp
-
38572067100 Half BushingHalf Bushing
-
39506142000 Handle BarHandle Bar
-
40277000142 Steering ClampSteering Clamp
-
41207085544 Hex. Screw M8 x 55Hex. Screw M8 x 55
-
42572100500 Handle GripHandle Grip
-
43570054100 Tie-Rod CapTie-Rod Cap
-
44506151182 Steering PaddingSteering Padding
-
45572106200 KeywayKeyway
-
46572081900 Handle Bar EndHandle Bar End
-
47219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
48414491600 Steering SupportSteering Support
-
49506151196 ReinforcementReinforcement
-
50208652044 Phillips Screw M5 x 20Phillips Screw M5 x 20
-
51233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
52515175387 Heating GripHeating Grip
-
53515175332 TubingTubing
-
54293750001 Tie Rap 94 mmTie Rap 94 mm
-
55515175252 Female TerminalFemale Terminal
-
56409204300 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
57409204200 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
58409206100 Male TerminalMale Terminal
