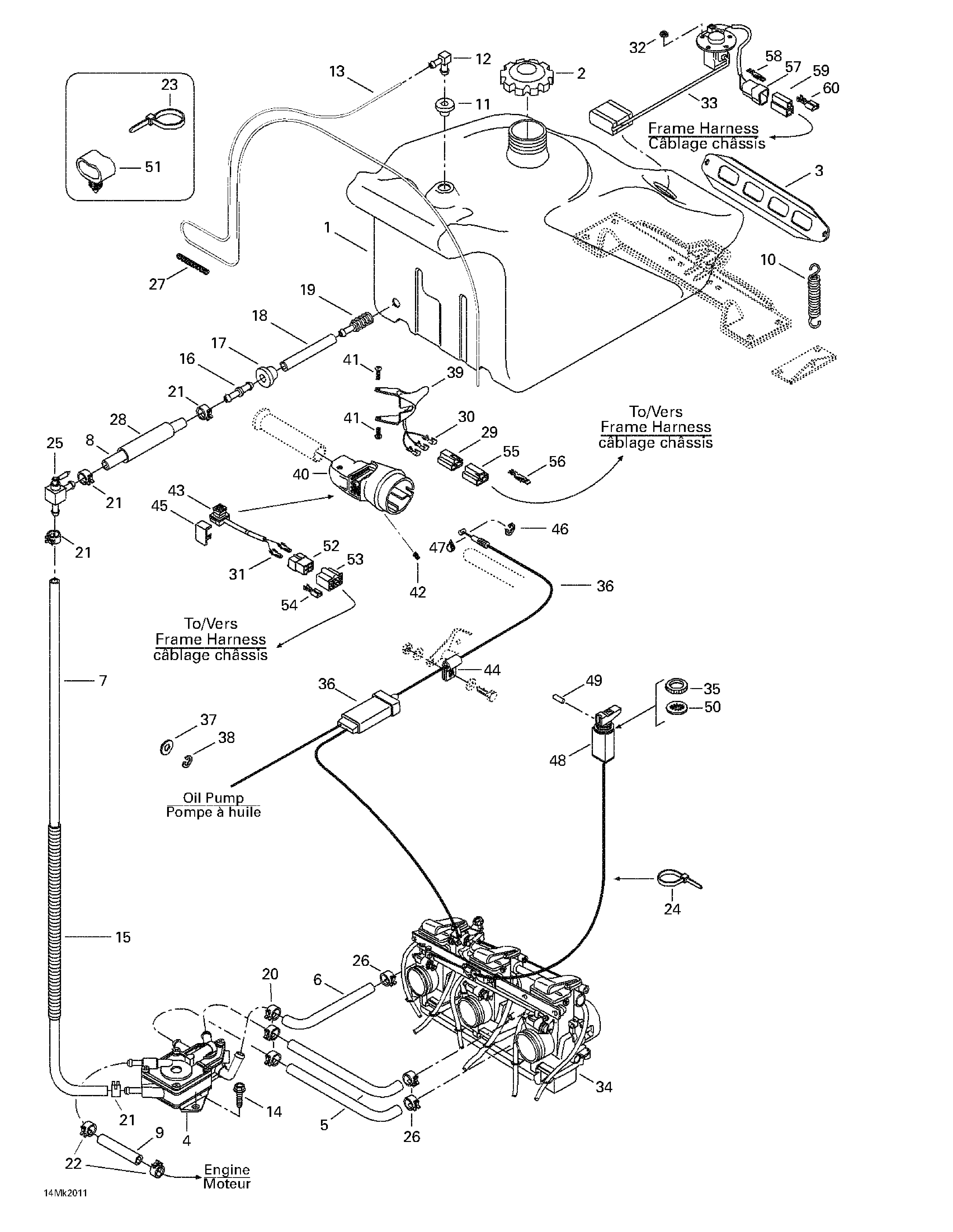

02- Fuel System для BRP Ski-Doo Mach Z R - 2000
-
№АртикулНазвание
-
1513032926 Fuel TankFuel Tank
-
2572073900 Fuel CapFuel Cap
-
3517249200 Fuel Tank BracketFuel Tank Bracket
-
4513032929 Fuel PumpFuel Pump
-
5415080200 LineLine
-
6415120800 Formed HoseFormed Hose
-
7513032949 Formed HoseFormed Hose
-
8513032965 HoseHose
-
9415079800 Rubber HoseRubber Hose
-
10414893700 SpringSpring
-
11513032908 GrommetGrommet
-
12414814100 Male ConnectorMale Connector
-
13415080100 Primer LinePrimer Line
-
14210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
15415080000 TubingTubing
-
16414872700 Male ConnectorMale Connector
-
17570273900 GrommetGrommet
-
18415097800 HoseHose
-
19414872100 Fuel FilterFuel Filter
-
20414420700 Spring ClampSpring Clamp
-
21414655700 Spring ClampSpring Clamp
-
22414415200 Spring ClampSpring Clamp
-
23414115200 Tie-RapTie-Rap
-
24414115200 Tie-RapTie-Rap
-
25415112200 Shut-off ValveShut-off Valve
-
26414554800 Spring ClampSpring Clamp
-
27513032961 SpringSpring
-
28513032941 Hose (Rubber)Hose (Rubber)
-
29409008500 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
30515175253 Female TerminalFemale Terminal
-
31409210000 Male TerminalMale Terminal
-
32232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
33415080800 Fuel Sensor Ass'yFuel Sensor Ass'y
-
34403138610 Carburetor Kit TM 38-C272Carburetor Kit TM 38-C272
-
35414977200 Plastic NutPlastic Nut
-
36512059059 Throttle CableThrottle Cable
-
37414753300 WasherWasher
-
38414753500 CirclipCirclip
-
39512059159 Heat Throttle Handle (26 mm)Heat Throttle Handle (26 mm)
-
40572098800 Throttle Handle HousingThrottle Handle Housing
-
41732601143 Shoulder ScrewShoulder Screw
-
42414440800 Set Screw M8 x 10Set Screw M8 x 10
-
43512059146 Kill SwitchKill Switch
-
44414176000 ClipClip
-
45572100901 Switch CoverSwitch Cover
-
46414274500 CirclipCirclip
-
47293550004 Grease Dielectric, 150 gGrease Dielectric, 150 g
-
48561205500 Choke Cable Ass'y. Includes 48 - 49.Choke Cable Ass'y. Includes 48 - 49.
-
49372118400 Spring PinSpring Pin
-
50394103300 Internal Tooth Lock WasherInternal Tooth Lock Washer
-
51513032923 Tube ClampTube Clamp
-
52409209300 Male Terminal Housing (4 circuits)Male Terminal Housing (4 circuits)
-
53409204900 Female Terminal Housing (4 circuits)Female Terminal Housing (4 circuits)
-
54561503200 Female TerminalFemale Terminal
-
55409008600 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
56409206100 Male TerminalMale Terminal
-
57409204500 Male Terminal Housing (2 circuits)Male Terminal Housing (2 circuits)
-
58561503400 Male TerminalMale Terminal
-
59409204600 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
60561503100 Female TerminalFemale Terminal
