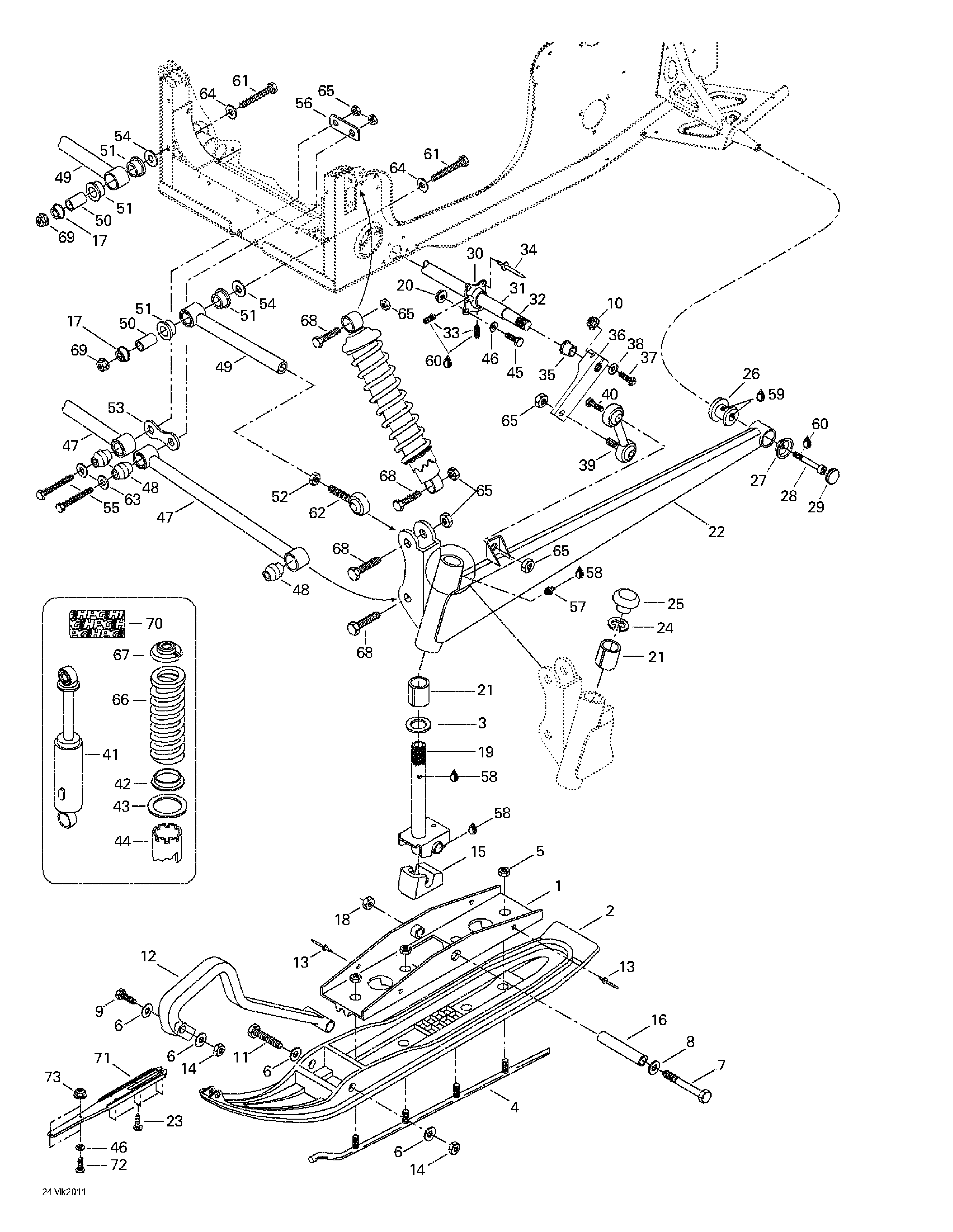

07- Front Suspension And Ski для BRP Ski-Doo Mach Z R - 2000
-
№АртикулНазвание
-
1505070055 Bridge Ass'y. Mach Z. Mach Z R.Bridge Ass'y. Mach Z. Mach Z R.
-
505070479 Bridge Ass'y (Chrome). Mach Z R Millennium Edition.Bridge Ass'y (Chrome). Mach Z R Millennium Edition.
-
2505070189 Flexible Ski Liner (Black)Flexible Ski Liner (Black)
-
3505070004 WasherWasher
-
4860501900 Carbide Runner Kit. Includes 4 - 5.Carbide Runner Kit. Includes 4 - 5.
-
5233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
6234081410 Flat Washer 8 mmFlat Washer 8 mm
-
7250000001 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
8732900049 WasherWasher
-
9207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
10233281414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
11230080044 Hex. Screw M8 x 100Hex. Screw M8 x 100
-
12572101000 Plastic HandlePlastic Handle
-
13390911100 Pop Rivet 1/4Pop Rivet 1/4
-
14232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
15506151233 Ski StopperSki Stopper
-
16506133300 SpacerSpacer
-
17506148400 SpacerSpacer
-
18233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
19506151234 Ski LegSki Leg
-
20233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
21505070003 CushionCushion
-
22505070382 R.H. Swing Arm. Mach Z. Mach Z R.R.H. Swing Arm. Mach Z. Mach Z R.
-
505070463 R.H. Swing Arm (Chrome). Mach Z R Millennium Edition.R.H. Swing Arm (Chrome). Mach Z R Millennium Edition.
-
505070383 L.H. Swing Arm. Mach Z. Mach Z R.L.H. Swing Arm. Mach Z. Mach Z R.
-
505070464 L.H. Swing Arm (Chrome). Mach Z R Millennium Edition.L.H. Swing Arm (Chrome). Mach Z R Millennium Edition.
-
23250000016 Phillips ScrewPhillips Screw
-
24371910400 CirclipCirclip
-
25572091300 CapCap
-
26570062700 DamperDamper
-
27506128500 CupCup
-
28205002544 Socket Head Screw M10 x 25Socket Head Screw M10 x 25
-
29572045900 CapCap
-
30505070276 R.H. HousingR.H. Housing
-
506138900 L.H. HousingL.H. Housing
-
31506136200 Main TubeMain Tube
-
32506134300 StabilizatorStabilizator
-
33414440800 Set Screw M8 x 10Set Screw M8 x 10
-
34390404900 Pop Rivet 1/4Pop Rivet 1/4
-
35415039500 CushionCushion
-
36506134402 Stabilizer Lever. Mach Z. Mach Z R.Stabilizer Lever. Mach Z. Mach Z R.
-
505070478 Stabilizer Lever. Mach Z R Millennium Edition.Stabilizer Lever. Mach Z R Millennium Edition.
-
37207084544 Hex. Screw M8 x 45Hex. Screw M8 x 45
-
38234081410 Flat Washer 8 mmFlat Washer 8 mm
-
39415101400 Double Ball JointDouble Ball Joint
-
40207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
41505070518 Front Shock. Includes 41 - 44.Front Shock. Includes 41 - 44.
-
42415052800 Spring GuideSpring Guide
-
43415052900 Thrust WasherThrust Washer
-
44415109900 CamCam
-
45207162544 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
46234061410 Flat Washer 6 mmFlat Washer 6 mm
-
47505070140 Lower Arm Ass'y. Includes 47 - 48.Lower Arm Ass'y. Includes 47 - 48.
-
48505070025 BushingBushing
-
49505070131 Adjustable Arm Ass'y. Includes 49 - 51.Adjustable Arm Ass'y. Includes 49 - 51.
-
50505070143 BushingBushing
-
51506149100 CushionCushion
-
52732610019 Hex. Jam Nut M12Hex. Jam Nut M12
-
53506147900 PlatePlate
-
54506148100 WasherWasher
-
55207008544 Hex. Screw M10 x 85Hex. Screw M10 x 85
-
56506148300 PlatePlate
-
57408200700 Grease FittingGrease Fitting
-
58219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
59293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
60293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
61230001044 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
62415068400 Ball JointBall Joint
-
63503175800 WasherWasher
-
64399910100 Flat WasherFlat Washer
-
65233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
66415075900 Spring (Yellow). Mach Z. Mach Z R.Spring (Yellow). Mach Z. Mach Z R.
-
505070473 Spring (Yellow). Mach Z R Millennium Edition.Spring (Yellow). Mach Z R Millennium Edition.
-
67503140600 Spring StopperSpring Stopper
-
68207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
69233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
70516000182 HPG DecalHPG Decal
-
71505070232 Proactive ControlProactive Control
-
72250000015 Socket Head Screw M5 x 25Socket Head Screw M5 x 25
-
73233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
