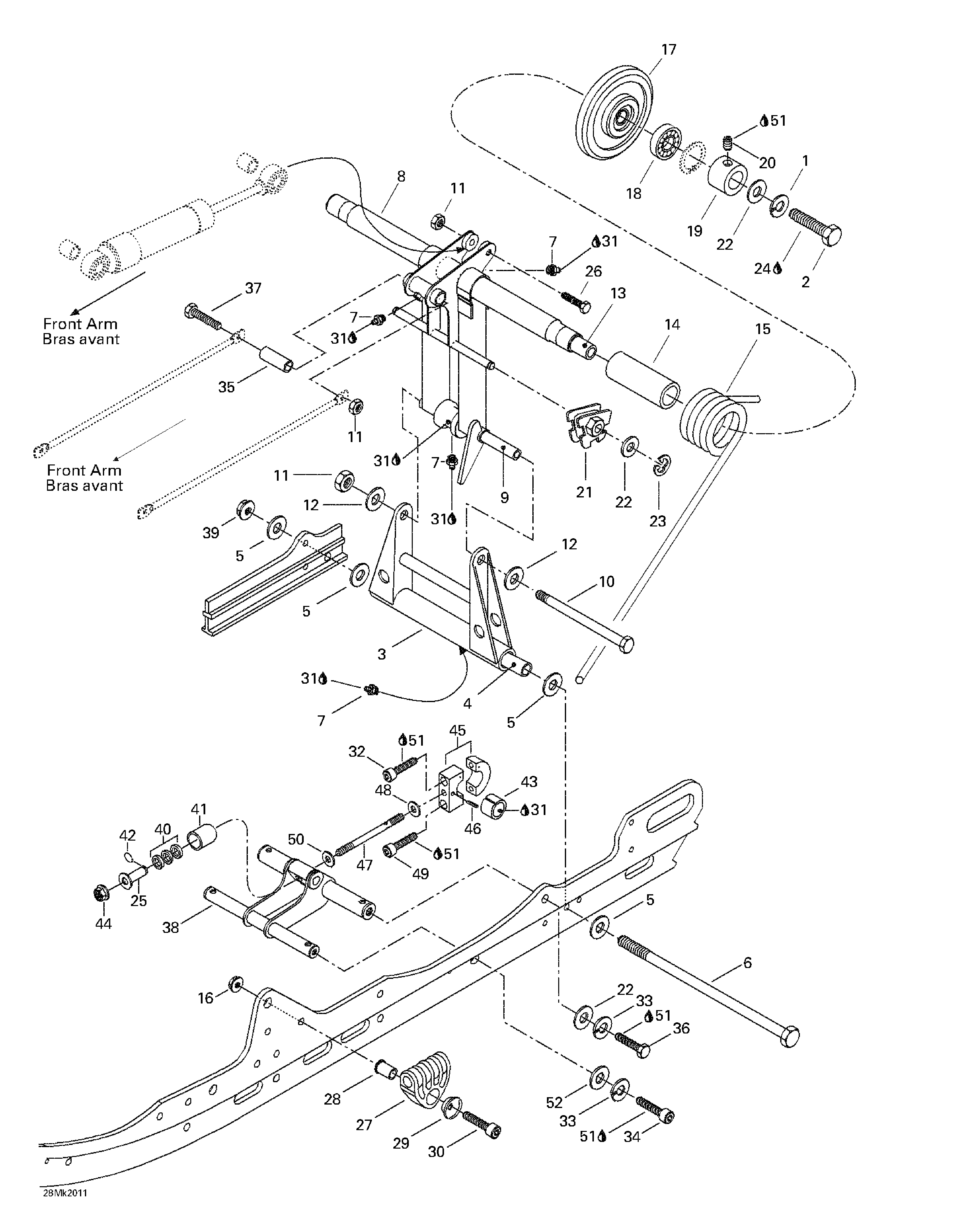

08- Rear Arm для BRP Ski-Doo Mach Z R - 2000
-
№АртикулНазвание
-
1234101601 Lock Washer 10 mmLock Washer 10 mm
-
2207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
3503169200 Pivot ArmPivot Arm
-
4503154703 Lower Pivot AxleLower Pivot Axle
-
5224081201 WasherWasher
-
6732601198 Bolt M8 (Long)Bolt M8 (Long)
-
7408200700 Grease Fitting M6Grease Fitting M6
-
8503186100 Rear ArmRear Arm
-
9503144300 Upper AxleUpper Axle
-
10732601197 Bolt M8 (Short)Bolt M8 (Short)
-
11232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
12234081410 Flat Washer 8 mmFlat Washer 8 mm
-
13503168700 Rear Cross ShaftRear Cross Shaft
-
14572080700 BushingBushing
-
15503188100 R.H. SpringR.H. Spring
-
503188200 L.H. SpringL.H. Spring
-
16233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
17572091400 Wheel 155. Includes 17 - 318.Wheel 155. Includes 17 - 318.
-
18405404500 Ball Bearing 6205Ball Bearing 6205
-
19503168800 Retaining RingRetaining Ring
-
20206260844 Socket Set Screw M6 x 8Socket Set Screw M6 x 8
-
21572030800 L.H. Cam AdjusterL.H. Cam Adjuster
-
572030900 R.H. Cam AdjusterR.H. Cam Adjuster
-
22234001410 Flat Washer 10 mmFlat Washer 10 mm
-
23371907100 Circlip ECirclip E
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25503172900 BushingBushing
-
26207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
27503188933 Spring SupportSpring Support
-
28503188934 Spring Axle GuideSpring Axle Guide
-
29503188929 Retainer CushionRetainer Cushion
-
30205084544 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
31219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
32205083044 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
33234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
34205003544 Socket Head Screw M10 x 35Socket Head Screw M10 x 35
-
35503158600 Tie Rod ShaftTie Rod Shaft
-
36207103044 Hex. Screw M10 x 30Hex. Screw M10 x 30
-
37207087544 Hex. Screw M8 x 75Hex. Screw M8 x 75
-
38503188969 BracketBracket
-
39233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
40570049600 Rubber StopperRubber Stopper
-
41503103600 CupCup
-
42371910700 CirclipCirclip
-
43415027800 CushionCushion
-
44233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
45503189044 Pivot Block Ass'y. Includes 45 - 49.Pivot Block Ass'y. Includes 45 - 49.
-
46732804011 Rolled Pin M3 x 18Rolled Pin M3 x 18
-
49205083044 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
50503183400 WasherWasher
-
51293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
52503176700 Hardened Washer 10 mmHardened Washer 10 mm
