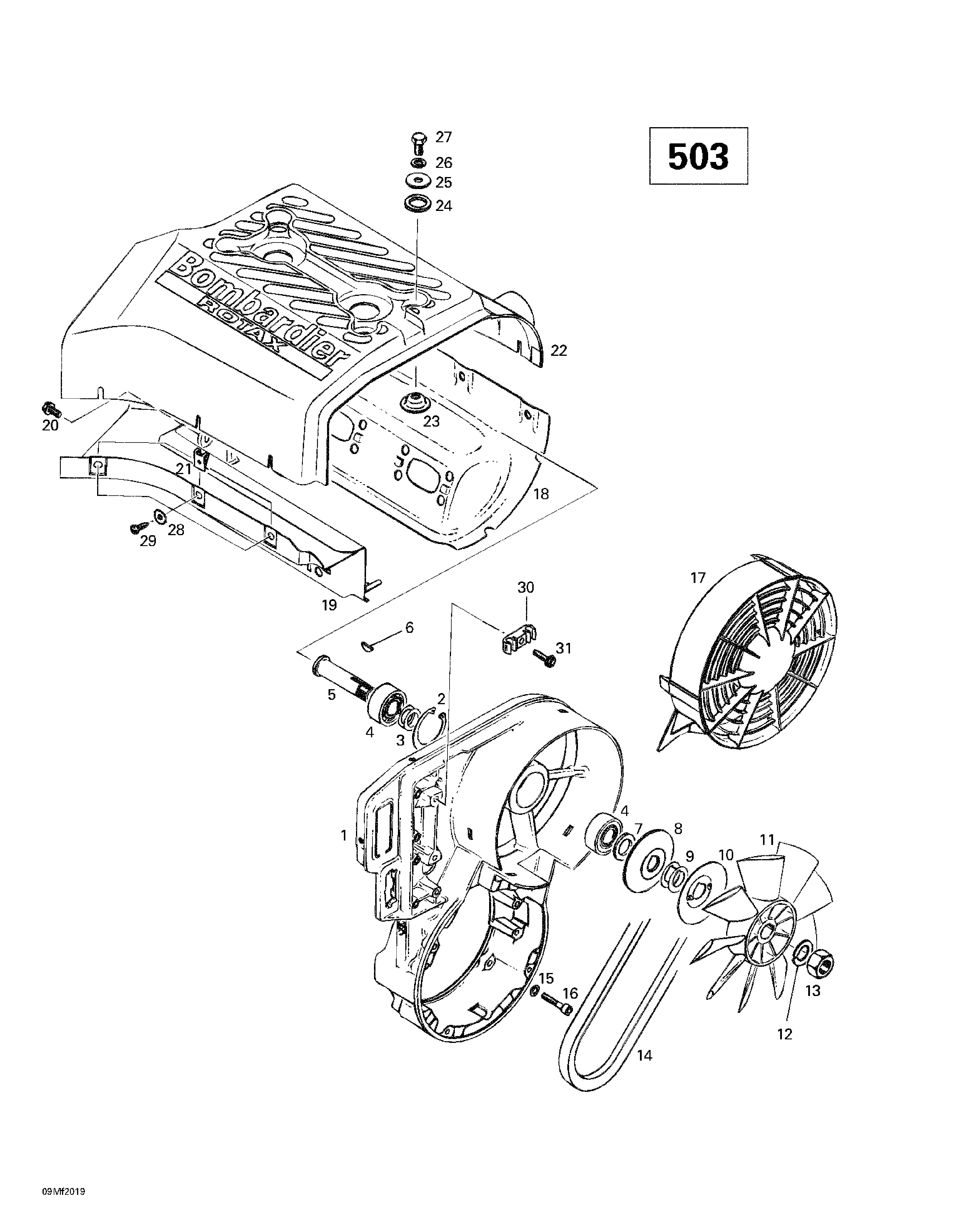

01- Cooling System Fan (503) для BRP Ski-Doo Skandic Super Wide Track - 2000

№

Артикул

Название
1

420912204 Fan Housing. Skandic WT. Skandic SWT.

Fan Housing. Skandic WT. Skandic SWT.

24 040 ₽
2

420945880 Retaining Ring. Skandic WT. Skandic SWT.

Retaining Ring. Skandic WT. Skandic SWT.

1 430 ₽
3

420244585 Shim. Skandic WT. Skandic SWT.

Shim. Skandic WT. Skandic SWT.

610 ₽
4

405406100 Ball Bearing 6203. Skandic WT. Skandic SWT.

Ball Bearing 6203. Skandic WT. Skandic SWT.

0 ₽
5

420937940 Fan Shaft. Skandic WT. Skandic SWT.

Fan Shaft. Skandic WT. Skandic SWT.

0 ₽
6

420246015 Woodruff Key. Skandic WT. Skandic SWT.

Woodruff Key. Skandic WT. Skandic SWT.

1 040 ₽
7

420827650 Distance Sleeve. Skandic WT. Skandic SWT.

Distance Sleeve. Skandic WT. Skandic SWT.

3 820 ₽
8

420980496 Half Pulley. Skandic WT. Skandic SWT.

Half Pulley. Skandic WT. Skandic SWT.

3 360 ₽
9

420827080 Shim 0.5 mm. Skandic WT. Skandic SWT.

Shim 0.5 mm. Skandic WT. Skandic SWT.

740 ₽
420827082 Shim 0.2 mm. Skandic WT. Skandic SWT.

Shim 0.2 mm. Skandic WT. Skandic SWT.

1 040 ₽
10

420980523 Washer-Protector. Skandic WT. Skandic SWT.

Washer-Protector. Skandic WT. Skandic SWT.

3 820 ₽
11

420866292 Fan. Skandic WT. Skandic SWT.

Fan. Skandic WT. Skandic SWT.

8 700 ₽
12

420945756 Lock Washer 16 mm. Skandic WT. Skandic SWT.

Lock Washer 16 mm. Skandic WT. Skandic SWT.

1 040 ₽
13

420942285 Nut M16. Skandic WT. Skandic SWT.

Nut M16. Skandic WT. Skandic SWT.

510 ₽
14

414630800 V-Belt. Skandic WT. Skandic SWT.

V-Belt. Skandic WT. Skandic SWT.

6 190 ₽
15

420945751 Lock Washer 6 mm. Skandic WT. Skandic SWT.

Lock Washer 6 mm. Skandic WT. Skandic SWT.

70 ₽
16

205063044 Socket Head Screw M6 x 30. Skandic WT. Skandic SWT.

Socket Head Screw M6 x 30. Skandic WT. Skandic SWT.

550 ₽
17

420975695 Fan Cover. Skandic WT. Skandic SWT.

Fan Cover. Skandic WT. Skandic SWT.

2 210 ₽
18

420810543 Cylinder Cowl (Exhaust Side). Skandic WT. Skandic SWT.

Cylinder Cowl (Exhaust Side). Skandic WT. Skandic SWT.

10 950 ₽
19

420810546 Cylinder Cowl (Carburetor Side). Skandic WT. Skandic SWT.

Cylinder Cowl (Carburetor Side). Skandic WT. Skandic SWT.

0 ₽
20

420240385 Self Tapping Screw M6 x 12. Skandic WT. Skandic SWT.

Self Tapping Screw M6 x 12. Skandic WT. Skandic SWT.

200 ₽
21

417300005 Nut-Spring V 4.8. Skandic WT. Skandic SWT.

Nut-Spring V 4.8. Skandic WT. Skandic SWT.

360 ₽
22

420811295 Cylinder Cowl. Skandic WT. Skandic SWT.

Cylinder Cowl. Skandic WT. Skandic SWT.

17 980 ₽
23

420827817 Cup Washer. Skandic WT. Skandic SWT.

Cup Washer. Skandic WT. Skandic SWT.

4 520 ₽
24

420960865 Rubber Washer. Skandic WT. Skandic SWT.

Rubber Washer. Skandic WT. Skandic SWT.

680 ₽
25

420227935 Washer 8 mm. Skandic WT. Skandic SWT.

Washer 8 mm. Skandic WT. Skandic SWT.

420 ₽
26

420945752 Lock Washer 8 mm. Skandic WT. Skandic SWT.

Lock Washer 8 mm. Skandic WT. Skandic SWT.

420 ₽
27

207181644 Hex. Screw M8 x 16. Skandic WT. Skandic SWT.

Hex. Screw M8 x 16. Skandic WT. Skandic SWT.

390 ₽
28

420926180 Washer. Skandic WT. Skandic SWT.

Washer. Skandic WT. Skandic SWT.

160 ₽
29

417300006 Self Tapping Screw M4.8 x 16. Skandic WT. Skandic SWT.

Self Tapping Screw M4.8 x 16. Skandic WT. Skandic SWT.

250 ₽
30

420860940 Clamp. Skandic WT. Skandic SWT.

Clamp. Skandic WT. Skandic SWT.

410 ₽
31

420941250 Self Tapping Screw M6 x 20. Skandic WT. Skandic SWT.

Self Tapping Screw M6 x 20. Skandic WT. Skandic SWT.

450 ₽
