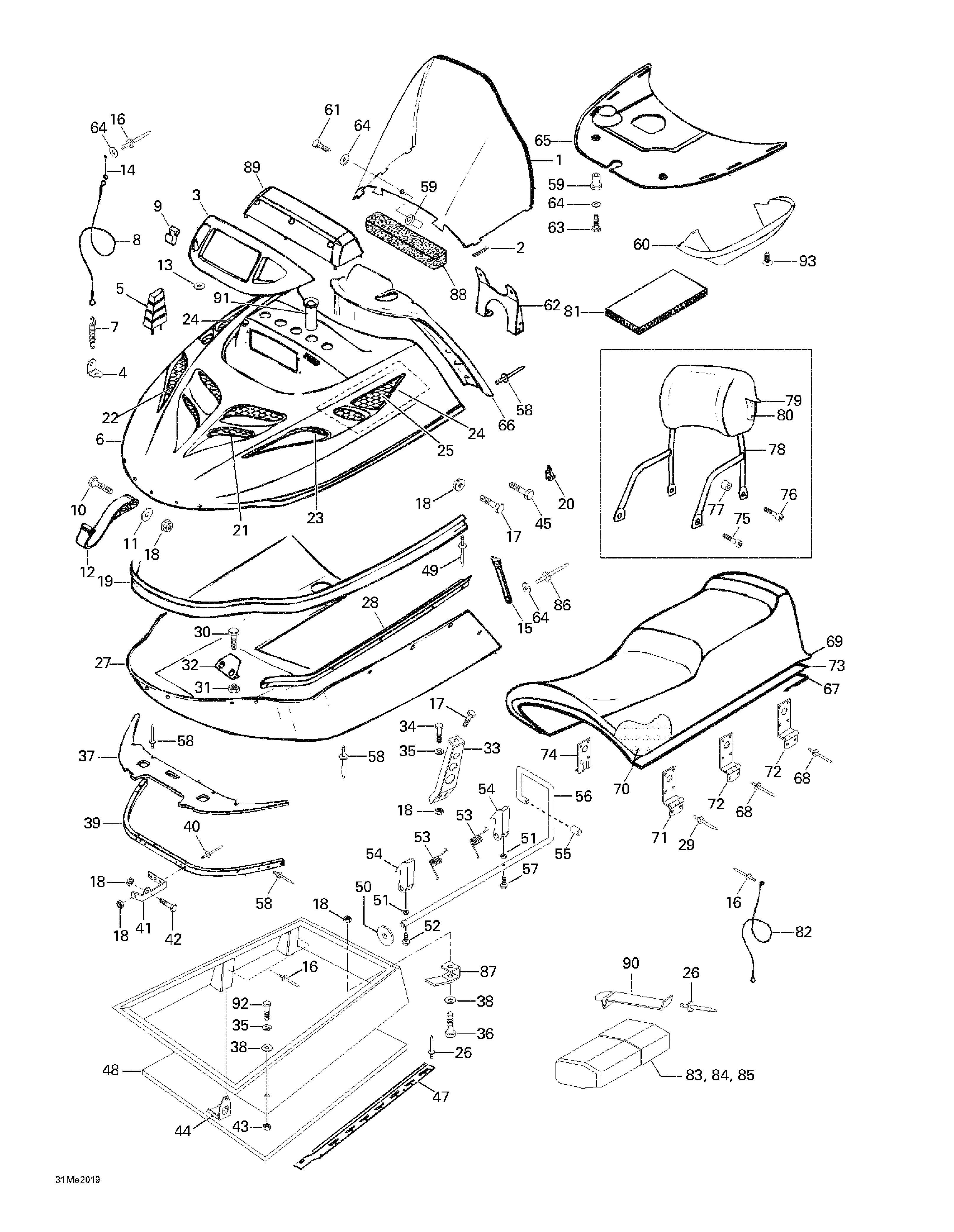

09- Cab, Console, Seat 2 для BRP Ski-Doo Skandic Super Wide Track - 2000
-
№АртикулНазвание
-
1M5343754 Windshield. Skandic SWT.Windshield. Skandic SWT.
-
2570023800 Windshield Latch. Skandic SWT.Windshield Latch. Skandic SWT.
-
3572079200 Lamp Moulding. Skandic SWT.Lamp Moulding. Skandic SWT.
-
4M5341435 Dash. Skandic SWT.Dash. Skandic SWT.
-
5M5443136 Windshield Support. Skandic SWT.Windshield Support. Skandic SWT.
-
6M5144992 Hood. Skandic SWT.Hood. Skandic SWT.
-
7M5442675 Spring. Skandic SWT.Spring. Skandic SWT.
-
8M5342674 Retainer Cable. Skandic SWT.Retainer Cable. Skandic SWT.
-
9414227300 Clip. Skandic SWT.Clip. Skandic SWT.
-
10M5443123 Spring Plate. Skandic SWT.Spring Plate. Skandic SWT.
-
11M20009 Washer. Skandic SWT.Washer. Skandic SWT.
-
12414644300 Dart. Skandic SWT.Dart. Skandic SWT.
-
13M5142622 Air Duct. Skandic SWT.Air Duct. Skandic SWT.
-
14M5442870 Cable Keeper. Skandic SWT.Cable Keeper. Skandic SWT.
-
15M20008 Washer. Skandic SWT.Washer. Skandic SWT.
-
16M36005 Rivet. Skandic SWT.Rivet. Skandic SWT.
-
17M40078 Screw M6 x 22. Skandic SWT.Screw M6 x 22. Skandic SWT.
-
18M33200 Nut. Skandic SWT.Nut. Skandic SWT.
-
19M5242798 Front Bumper. Skandic SWT.Front Bumper. Skandic SWT.
-
20M549096R Cap R.H. Skandic SWT.Cap R.H. Skandic SWT.
-
M549096L Cap L.H. Skandic SWT.Cap L.H. Skandic SWT.
-
21M40193 Screw M6 x 50. Skandic SWT.Screw M6 x 50. Skandic SWT.
-
22M5343075 Hinge. Skandic SWT.Hinge. Skandic SWT.
-
23M40808 Screw M5 x 30. Skandic SWT.Screw M5 x 30. Skandic SWT.
-
24M5142669 Front Grill. Skandic SWT.Front Grill. Skandic SWT.
-
25M5242672 Lower Grill R.H.. Skandic SWT.Lower Grill R.H.. Skandic SWT.
-
M5342673 Lower Grill L.H.. Skandic SWT.Lower Grill L.H.. Skandic SWT.
-
26M5443578 Reflective Sheet. Skandic SWT.Reflective Sheet. Skandic SWT.
-
27m36084 Washer. Skandic SWT.Washer. Skandic SWT.
-
28M5242803 Guide-Hood L.H.. Skandic SWT.Guide-Hood L.H.. Skandic SWT.
-
M5242804 Guide-Hood R.H.. Skandic SWT.Guide-Hood R.H.. Skandic SWT.
-
29M5242671 Upper Grill R.H.. Skandic SWT.Upper Grill R.H.. Skandic SWT.
-
M5242670 Upper Grill L.H.. Skandic SWT.Upper Grill L.H.. Skandic SWT.
-
30M40247 Screw M5 x 16. Skandic SWT.Screw M5 x 16. Skandic SWT.
-
31M33062 Nut M5. Skandic SWT.Nut M5. Skandic SWT.
-
32M5443217 Guide-Hood. Skandic SWT.Guide-Hood. Skandic SWT.
-
33M5342509 Bumper support. Skandic SWT.Bumper support. Skandic SWT.
-
34M40332 Screw. Skandic SWT.Screw. Skandic SWT.
-
35234161471 Lock Washer 6 mm. Skandic SWT.Lock Washer 6 mm. Skandic SWT.
-
36M5343227 Sheet Reflective. Skandic SWT.Sheet Reflective. Skandic SWT.
-
37M5142623 Hinge Protector. Skandic SWT.Hinge Protector. Skandic SWT.
-
38M5143758 Bottom Pan. Skandic SWT.Bottom Pan. Skandic SWT.
-
39M5142799 Front Support. Skandic SWT.Front Support. Skandic SWT.
-
40M36489 Rivet. Skandic SWT.Rivet. Skandic SWT.
-
41M5342234 Hinge. Skandic SWT.Hinge. Skandic SWT.
-
M5342345 Hinge. Skandic SWT.Hinge. Skandic SWT.
-
42M40084 Screw M6 x 45. Skandic SWT.Screw M6 x 45. Skandic SWT.
-
43M5343120 Support. Skandic SWT.Support. Skandic SWT.
-
46M39057 Gasket Tape. Skandic SWT.Gasket Tape. Skandic SWT.
-
47M40358 Allen Screw M5 x 30. Skandic SWT.Allen Screw M5 x 30. Skandic SWT.
-
48M21138 Lock. Skandic SWT.Lock. Skandic SWT.
-
49M5442236 Counter Spring. Skandic SWT.Counter Spring. Skandic SWT.
-
50M36002 Rivet. Skandic SWT.Rivet. Skandic SWT.
-
51M40191 Screw. Skandic SWT.Screw. Skandic SWT.
-
52M36036 Rivet. Skandic SWT.Rivet. Skandic SWT.
-
53M5243102 Seat Base. Skandic SWT.Seat Base. Skandic SWT.
-
54M5340529 Cushion. Skandic SWT.Cushion. Skandic SWT.
-
55M546777 Retainer cable. Skandic SWT.Retainer cable. Skandic SWT.
-
56M36036 Rivet. Skandic SWT.Rivet. Skandic SWT.
-
57M5340913 Hinge. Skandic SWT.Hinge. Skandic SWT.
-
58207162544 Hex. Screw M6 x 25. Skandic SWT.Hex. Screw M6 x 25. Skandic SWT.
-
59M28050 Weld Nut. Skandic SWT.Weld Nut. Skandic SWT.
-
60572036310 Tool Kit Box. Skandic SWT.Tool Kit Box. Skandic SWT.
-
61414631900 Acoustic Foam. Skandic SWT.Acoustic Foam. Skandic SWT.
-
62M5142624 Intake Cover. Skandic SWT.Intake Cover. Skandic SWT.
-
63M36003 Rivet. Skandic SWT.Rivet. Skandic SWT.
-
64M5444445 Pipe. Skandic SWT.Pipe. Skandic SWT.
-
65M5144412 Air Duct. Skandic SWT.Air Duct. Skandic SWT.
-
66M5343135 Filter. Skandic SWT.Filter. Skandic SWT.
-
67570027100 Hood Latch. Skandic SWT.Hood Latch. Skandic SWT.
-
68M36037 Rivet. Skandic SWT.Rivet. Skandic SWT.
-
69M538856 Seat Belt. Skandic SWT.Seat Belt. Skandic SWT.
-
70M5345070 Seat Cover. Skandic SWT.Seat Cover. Skandic SWT.
-
71M5345071 Seat Foam. Skandic SWT.Seat Foam. Skandic SWT.
-
72M539455 Spring Holder. Skandic SWT.Spring Holder. Skandic SWT.
-
73M5445400 Tool Kit. Skandic SWT.Tool Kit. Skandic SWT.
-
74M548824 Belt Lug. Skandic SWT.Belt Lug. Skandic SWT.
-
75M548834 Hair Pin. Skandic SWT.Hair Pin. Skandic SWT.
-
76M36083 Rivet. Skandic SWT.Rivet. Skandic SWT.
