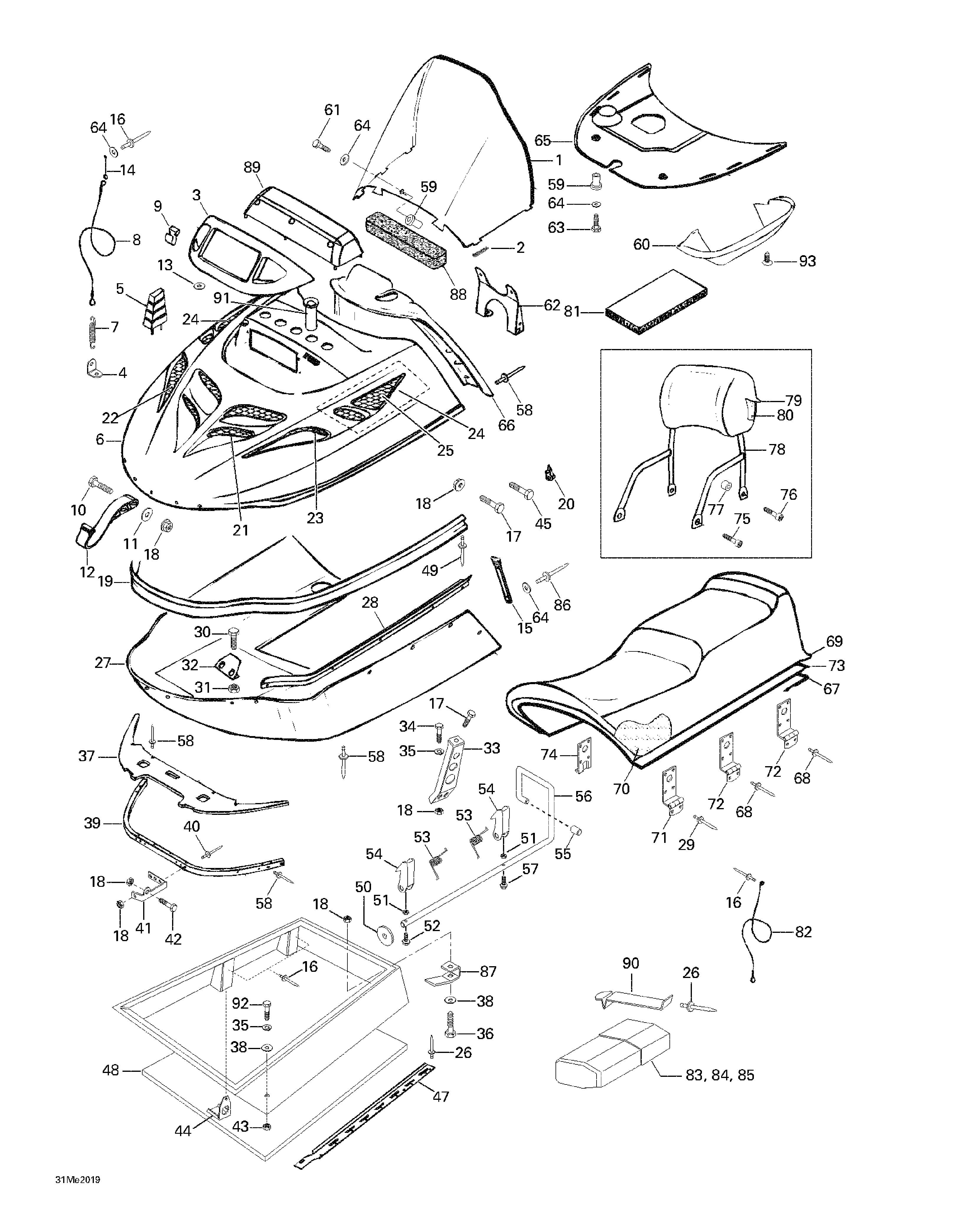

09- Cab, Console, Seat для BRP Ski-Doo Skandic Super Wide Track - 2000
-
№АртикулНазвание
-
1M5241686 Windshield. Skandic WT. Skandic WT LC.Windshield. Skandic WT. Skandic WT LC.
-
2570023800 Windshield Latch. Skandic WT. Skandic WT LC.Windshield Latch. Skandic WT. Skandic WT LC.
-
3572079200 Lamp Moulding. Skandic WT. Skandic WT LC.Lamp Moulding. Skandic WT. Skandic WT LC.
-
4M5443123 Spring Plate. Skandic WT. Skandic WT LC.Spring Plate. Skandic WT. Skandic WT LC.
-
5M5443136 Windshield Support. Skandic WT. Skandic WT LC.Windshield Support. Skandic WT. Skandic WT LC.
-
6M5144992 Hood. Skandic WT.Hood. Skandic WT.
-
M5144995 Hood. Skandic WT LC.Hood. Skandic WT LC.
-
7M5442675 Spring. Skandic WT. Skandic WT LC.Spring. Skandic WT. Skandic WT LC.
-
8M5342674 Retainer Cable. Skandic WT. Skandic WT LC.Retainer Cable. Skandic WT. Skandic WT LC.
-
9414227300 Clip. Skandic WT. Skandic WT LC.Clip. Skandic WT. Skandic WT LC.
-
10M40193 Screw M6 x 50. Skandic WT. Skandic WT LC.Screw M6 x 50. Skandic WT. Skandic WT LC.
-
11M20009 Washer. Skandic WT. Skandic WT LC.Washer. Skandic WT. Skandic WT LC.
-
12M5343075 Hinge. Skandic WT. Skandic WT LC.Hinge. Skandic WT. Skandic WT LC.
-
13m36084 Washer. Skandic WT. Skandic WT LC.Washer. Skandic WT. Skandic WT LC.
-
14M5442870 Cable Keeper. Skandic WT. Skandic WT LC.Cable Keeper. Skandic WT. Skandic WT LC.
-
15M5342952 Hood Latch. Skandic WT. Skandic WT LC.Hood Latch. Skandic WT. Skandic WT LC.
-
16M36005 Rivet. Skandic WT. Skandic WT LC.Rivet. Skandic WT. Skandic WT LC.
-
17M40078 Screw M6 x 22. Skandic WT. Skandic WT LC.Screw M6 x 22. Skandic WT. Skandic WT LC.
-
18M33200 Nut. Skandic WT. Skandic WT LC.Nut. Skandic WT. Skandic WT LC.
-
19M5242798 Front Bumper. Skandic WT. Skandic WT LC.Front Bumper. Skandic WT. Skandic WT LC.
-
20M549096R Cap R.H. Skandic WT. Skandic WT LC.Cap R.H. Skandic WT. Skandic WT LC.
-
M549096L Cap L.H. Skandic WT. Skandic WT LC.Cap L.H. Skandic WT. Skandic WT LC.
-
21M5142669 Front Grill. Skandic WT. Skandic WT LC.Front Grill. Skandic WT. Skandic WT LC.
-
22M5343409 Cover Fan. Skandic WT LC.Cover Fan. Skandic WT LC.
-
23M5242672 Lower Grill R.H. Skandic WT. Skandic WT LC.Lower Grill R.H. Skandic WT. Skandic WT LC.
-
M5342673 Lower Grill L.H. Skandic WT. Skandic WT LC.Lower Grill L.H. Skandic WT. Skandic WT LC.
-
24M5342990 Cover Plate. Skandic WT LC.Cover Plate. Skandic WT LC.
-
24M5343408 Cover Plate L.H. Skandic WT LC.Cover Plate L.H. Skandic WT LC.
-
25M5242671 Upper Grill R.H. Skandic WT. Skandic WT LC.Upper Grill R.H. Skandic WT. Skandic WT LC.
-
M5242670 Upper Grill L.H. Skandic WT.Upper Grill L.H. Skandic WT.
-
M5242899 Upper Grill L.H. Skandic WT LC.Upper Grill L.H. Skandic WT LC.
-
26M36083 Rivet. Skandic WT. Skandic WT LC.Rivet. Skandic WT. Skandic WT LC.
-
27M5144049 Bottom Pan (Black). Skandic WT.Bottom Pan (Black). Skandic WT.
-
M5142499 Bottom Pan (Black). Skandic WT LC.Bottom Pan (Black). Skandic WT LC.
-
28M5242803 Guide-Hood. Skandic WT. Skandic WT LC.Guide-Hood. Skandic WT. Skandic WT LC.
-
M5242804 Guide-Hood. Skandic WT. Skandic WT LC.Guide-Hood. Skandic WT. Skandic WT LC.
-
29M36489 Rivet. Skandic WT. Skandic WT LC.Rivet. Skandic WT. Skandic WT LC.
-
30M40247 Screw M5 x 16. Skandic WT. Skandic WT LC.Screw M5 x 16. Skandic WT. Skandic WT LC.
-
31M33062 Nut M5. Skandic WT. Skandic WT LC.Nut M5. Skandic WT. Skandic WT LC.
-
32M5443217 Guide-Hood. Skandic WT. Skandic WT LC.Guide-Hood. Skandic WT. Skandic WT LC.
-
33M5342509 Bumper support. Skandic WT. Skandic WT LC.Bumper support. Skandic WT. Skandic WT LC.
-
34M40332 Screw. Skandic WT. Skandic WT LC.Screw. Skandic WT. Skandic WT LC.
-
35234161471 Lock Washer. Skandic WT. Skandic WT LC.Lock Washer. Skandic WT. Skandic WT LC.
-
36M40149 Socket Head Screw M6 x 30. Skandic WT. Skandic WT LC.Socket Head Screw M6 x 30. Skandic WT. Skandic WT LC.
-
37M5142623 Hinge Protector. Skandic WT. Skandic WT LC.Hinge Protector. Skandic WT. Skandic WT LC.
-
38M20009 Washer. Skandic WT. Skandic WT LC.Washer. Skandic WT. Skandic WT LC.
-
39M5142799 Front Support. Skandic WT. Skandic WT LC.Front Support. Skandic WT. Skandic WT LC.
-
40M36489 Rivet. Skandic WT. Skandic WT LC.Rivet. Skandic WT. Skandic WT LC.
-
41M5342234 Hinge. Skandic WT. Skandic WT LC.Hinge. Skandic WT. Skandic WT LC.
-
M5342345 Hinge. Skandic WT. Skandic WT LC.Hinge. Skandic WT. Skandic WT LC.
-
42M40084 Screw M6 x 45. Skandic WT. Skandic WT LC.Screw M6 x 45. Skandic WT. Skandic WT LC.
-
43M33066 Nut M6. Skandic WT. Skandic WT LC.Nut M6. Skandic WT. Skandic WT LC.
-
44M5443661 Support. Skandic WT. Skandic WT LC.Support. Skandic WT. Skandic WT LC.
-
45207162544 Screw M6 x 25. Skandic WT. Skandic WT LC.Screw M6 x 25. Skandic WT. Skandic WT LC.
-
46M5142066 Seat Base. Skandic WT. Skandic WT LC.Seat Base. Skandic WT. Skandic WT LC.
-
47M5144029 R.H. Support. Skandic WT. Skandic WT LC.R.H. Support. Skandic WT. Skandic WT LC.
-
M5144028 L.H. Support. Skandic WT. Skandic WT LC.L.H. Support. Skandic WT. Skandic WT LC.
-
48M5344621 Cushion. Skandic WT.Cushion. Skandic WT.
-
M5343937 Cushion. Skandic WT LC.Cushion. Skandic WT LC.
-
49M36003 Rivet. Skandic WT. Skandic WT LC.Rivet. Skandic WT. Skandic WT LC.
-
50M20004 Washer. Skandic WT. Skandic WT LC.Washer. Skandic WT. Skandic WT LC.
-
51232541414 Elastic Stop Nut M4. Skandic WT. Skandic WT LC.Elastic Stop Nut M4. Skandic WT. Skandic WT LC.
-
52M40144 Screw. Skandic WT. Skandic WT LC.Screw. Skandic WT. Skandic WT LC.
-
53M5444439 Spring. Skandic WT. Skandic WT LC.Spring. Skandic WT. Skandic WT LC.
-
54M5443664 Lock Tongue. Skandic WT. Skandic WT LC.Lock Tongue. Skandic WT. Skandic WT LC.
-
55M28019 Cap. Skandic WT. Skandic WT LC.Cap. Skandic WT. Skandic WT LC.
-
56M5344987 Pivot Pin. Skandic WT. Skandic WT LC.Pivot Pin. Skandic WT. Skandic WT LC.
-
57M40146 Allen Screw M4 x 20. Skandic WT. Skandic WT LC.Allen Screw M4 x 20. Skandic WT. Skandic WT LC.
-
58M36036 Rivet. Skandic WT. Skandic WT LC.Rivet. Skandic WT. Skandic WT LC.
-
59M28050 Weld Nut. Skandic WT. Skandic WT LC.Weld Nut. Skandic WT. Skandic WT LC.
-
60M5144412 Air Duct. Skandic WT.Air Duct. Skandic WT.
-
61M40358 Screw M5 x 30. Skandic WT. Skandic WT LC.Screw M5 x 30. Skandic WT. Skandic WT LC.
-
62M5343120 Support. Skandic WT. Skandic WT LC.Support. Skandic WT. Skandic WT LC.
-
63M40808 Screw M5 x 30. Skandic WT. Skandic WT LC.Screw M5 x 30. Skandic WT. Skandic WT LC.
-
64M20008 Washer. Skandic WT. Skandic WT LC.Washer. Skandic WT. Skandic WT LC.
-
65M5142622 Air Duct. Skandic WT.Air Duct. Skandic WT.
-
M5144639 Air Duct. Skandic WT LC.Air Duct. Skandic WT LC.
-
66M5341435 Dash. Skandic WT.Dash. Skandic WT.
-
M5344648 Dash. Skandic WT LC.Dash. Skandic WT LC.
-
67M5440059 Cushion. Skandic WT. Skandic WT LC.Cushion. Skandic WT. Skandic WT LC.
-
68M36043 Rivet. Skandic WT. Skandic WT LC.Rivet. Skandic WT. Skandic WT LC.
-
69M5345128 Seat Cover. Skandic WT. Skandic WT LC.Seat Cover. Skandic WT. Skandic WT LC.
-
70M5141222 Seat Foam. Skandic WT. Skandic WT LC.Seat Foam. Skandic WT. Skandic WT LC.
-
71M5440581 Hinge. Skandic WT. Skandic WT LC.Hinge. Skandic WT. Skandic WT LC.
-
72M549874 Hinge. Skandic WT. Skandic WT LC.Hinge. Skandic WT. Skandic WT LC.
-
73M519394 Sub-Seat. Skandic WT. Skandic WT LC.Sub-Seat. Skandic WT. Skandic WT LC.
-
74M549732 Ressort. Skandic WT. Skandic WT LC.Ressort. Skandic WT. Skandic WT LC.
-
75205082044 Socket Head Screw M8 x 20. Skandic WT. Skandic WT LC.Socket Head Screw M8 x 20. Skandic WT. Skandic WT LC.
-
76M40135 Socket Head Screw M8 X 30. Skandic WT. Skandic WT LC.Socket Head Screw M8 X 30. Skandic WT. Skandic WT LC.
-
77M5440665 Spacer. Skandic WT. Skandic WT LC.Spacer. Skandic WT. Skandic WT LC.
-
78M539877 Backrest. Skandic WT. Skandic WT LC.Backrest. Skandic WT. Skandic WT LC.
-
79M539399 Backrest Foam. Skandic WT. Skandic WT LC.Backrest Foam. Skandic WT. Skandic WT LC.
-
80M5340917 Backrest Cover. Skandic WT. Skandic WT LC.Backrest Cover. Skandic WT. Skandic WT LC.
-
81414631900 Acoustic Foam. Skandic WT. Skandic WT LC.Acoustic Foam. Skandic WT. Skandic WT LC.
-
82M546777 Retainer Cable. Skandic WT. Skandic WT LC.Retainer Cable. Skandic WT. Skandic WT LC.
-
83572036310 Tool Box Ass'y. Skandic WT. Skandic WT LC.Tool Box Ass'y. Skandic WT. Skandic WT LC.
-
84572036400 Tool Box. Skandic WT. Skandic WT LC.Tool Box. Skandic WT. Skandic WT LC.
-
85M5445400 Tool Kit. Skandic WT. Skandic WT LC.Tool Kit. Skandic WT. Skandic WT LC.
-
86M36009 Rivet. Skandic WT. Skandic WT LC.Rivet. Skandic WT. Skandic WT LC.
-
88M5343135 Filter. Skandic WT. Skandic WT LC.Filter. Skandic WT. Skandic WT LC.
-
89M5142624 Intake Cover. Skandic WT. Skandic WT LC.Intake Cover. Skandic WT. Skandic WT LC.
-
90M5344443 Spring. Skandic WT. Skandic WT LC.Spring. Skandic WT. Skandic WT LC.
-
91M544445 Pipe. Skandic WT. Skandic WT LC.Pipe. Skandic WT. Skandic WT LC.
-
92M40052 Socket Head Screw M6 x 20. Skandic WT. Skandic WT LC.Socket Head Screw M6 x 20. Skandic WT. Skandic WT LC.
-
93414644300 Dart. Skandic WT.Dart. Skandic WT.
