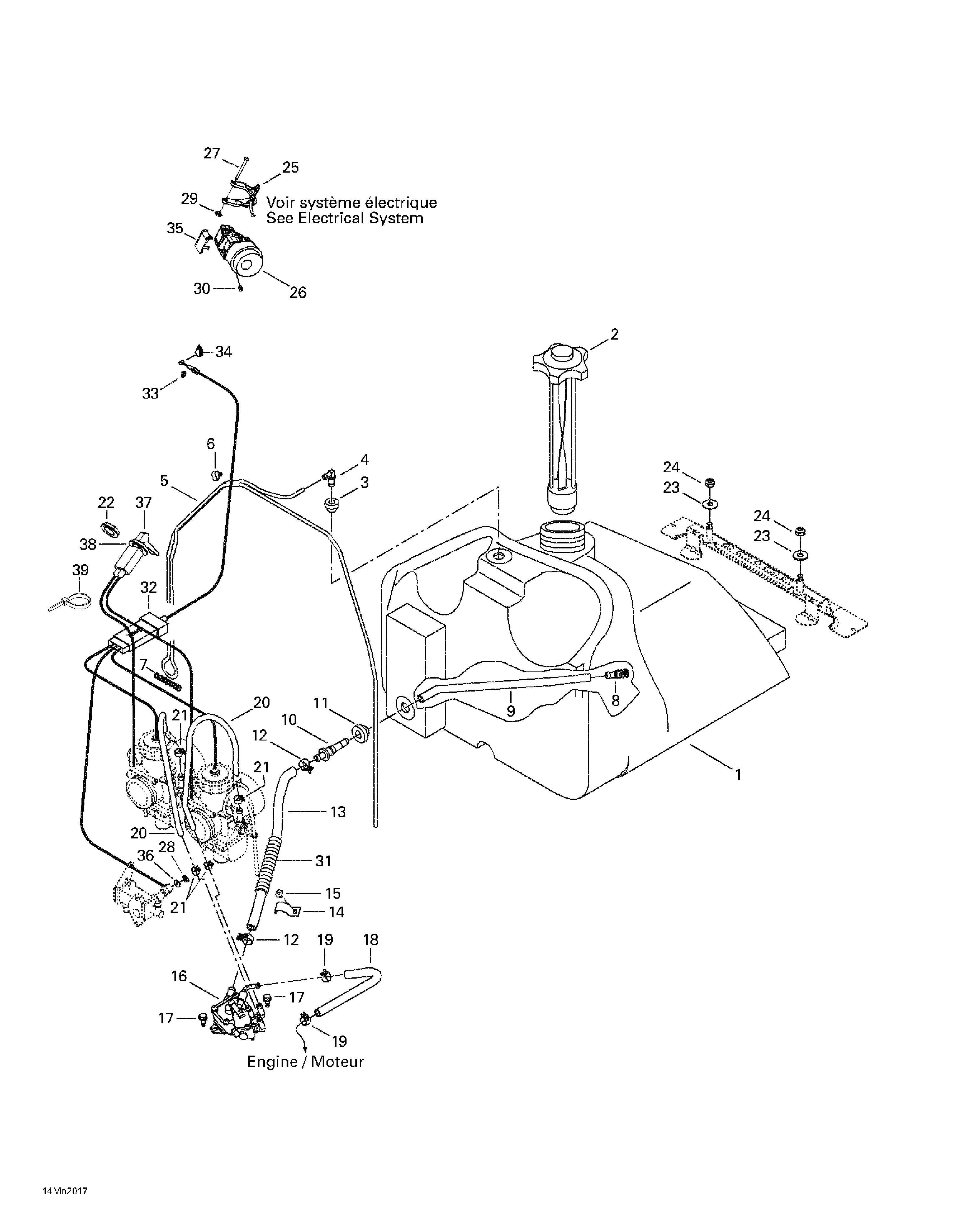

02- Fuel System для BRP Ski-Doo Summit 700 - 2000
-
№АртикулНазвание
-
1513032987 Fuel TankFuel Tank
-
2513032901 Fuel Tank CapFuel Tank Cap
-
3513032908 GrommetGrommet
-
4414814100 Male ConnectorMale Connector
-
5415080100 Primer LinePrimer Line
-
6513032923 Tube ClampTube Clamp
-
7414818200 SpringSpring
-
8414872100 Fuel FilterFuel Filter
-
9415005700 HoseHose
-
10414872700 Male ConnectorMale Connector
-
11570273900 GrommetGrommet
-
12513032979 Spring ClampSpring Clamp
-
13513032903 Formed HoseFormed Hose
-
14415018200 ClipClip
-
15390406500 Pop RivetPop Rivet
-
16403901800 Fuel PumpFuel Pump
-
17210361280 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
18415079800 Rubber HoseRubber Hose
-
19414415200 Spring ClampSpring Clamp
-
20415117800 Formed TubeFormed Tube
-
21414420700 Spring ClampSpring Clamp
-
22512059094 Plastic NutPlastic Nut
-
23234082410 Flat Washer 8 mmFlat Washer 8 mm
-
24232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
25512059172 Handle Ass'y 40 mmHandle Ass'y 40 mm
-
26572100900 Throttle Handle HousingThrottle Handle Housing
-
27414438700 Lever PinLever Pin
-
28414753500 CirclipCirclip
-
29414439000 CirclipCirclip
-
30414440800 Set Screw M8 x 10Set Screw M8 x 10
-
31415080000 TubingTubing
-
32512059188 Throttle CableThrottle Cable
-
33414274500 CirclipCirclip
-
34293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
35572100901 Switch CoverSwitch Cover
-
36414753300 WasherWasher
-
37512059203 Choke Cable. Includes 37 - 38.Choke Cable. Includes 37 - 38.
-
38394103300 Lock WasherLock Washer
-
39293750001 Tie Rap (94 mm)Tie Rap (94 mm)
