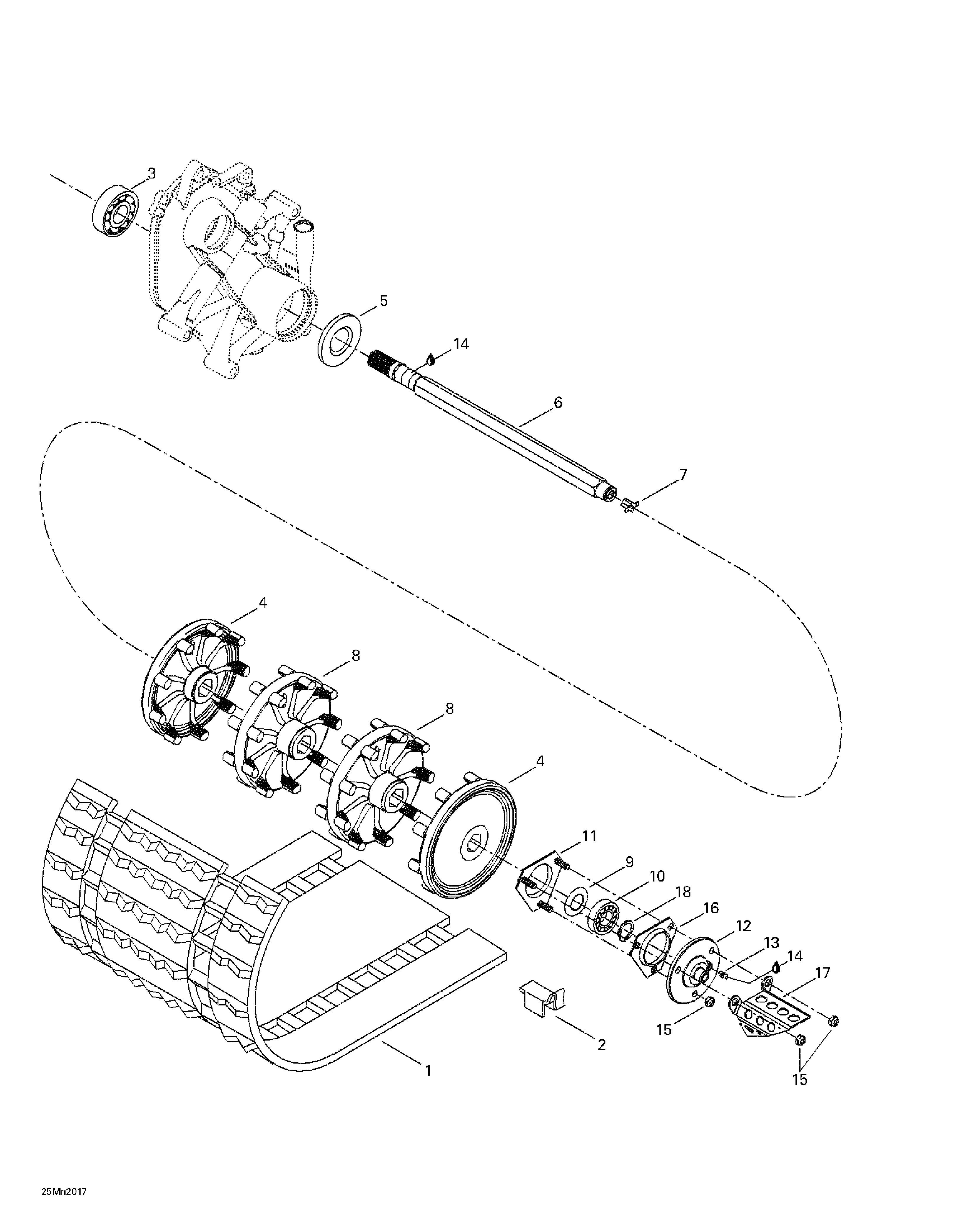

05- Drive Axle And Track для BRP Ski-Doo Summit 700 - 2000
-
№АртикулНазвание
-
1570210900 Track Ass'y. Includes 1 - 2. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.Track Ass'y. Includes 1 - 2. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
-
504151943 Track Ass'y. Summit 700 HM.Track Ass'y. Summit 700 HM.
-
2500003400 Guide CleatGuide Cleat
-
3405408500 Ball BearingBall Bearing
-
4504151782 Half Sprocket 9-TeethHalf Sprocket 9-Teeth
-
5504151918 Oil SealOil Seal
-
6501027400 Drive AxleDrive Axle
-
7572010100 Speedometer InsertSpeedometer Insert
-
8504151781 Sprocket 9-TeethSprocket 9-Teeth
-
9501017400 Ball Bearing ProtectorBall Bearing Protector
-
10405408600 Ball BearingBall Bearing
-
11504151860 Bearing HousingBearing Housing
-
12504151836 Flange (Speed Drive Insert)Flange (Speed Drive Insert)
-
13408200700 Grease FittingGrease Fitting
-
14219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
15232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
16501025000 FlangeFlange
-
17517290100 Cable ProtectorCable Protector
-
18371910200 CirclipCirclip
