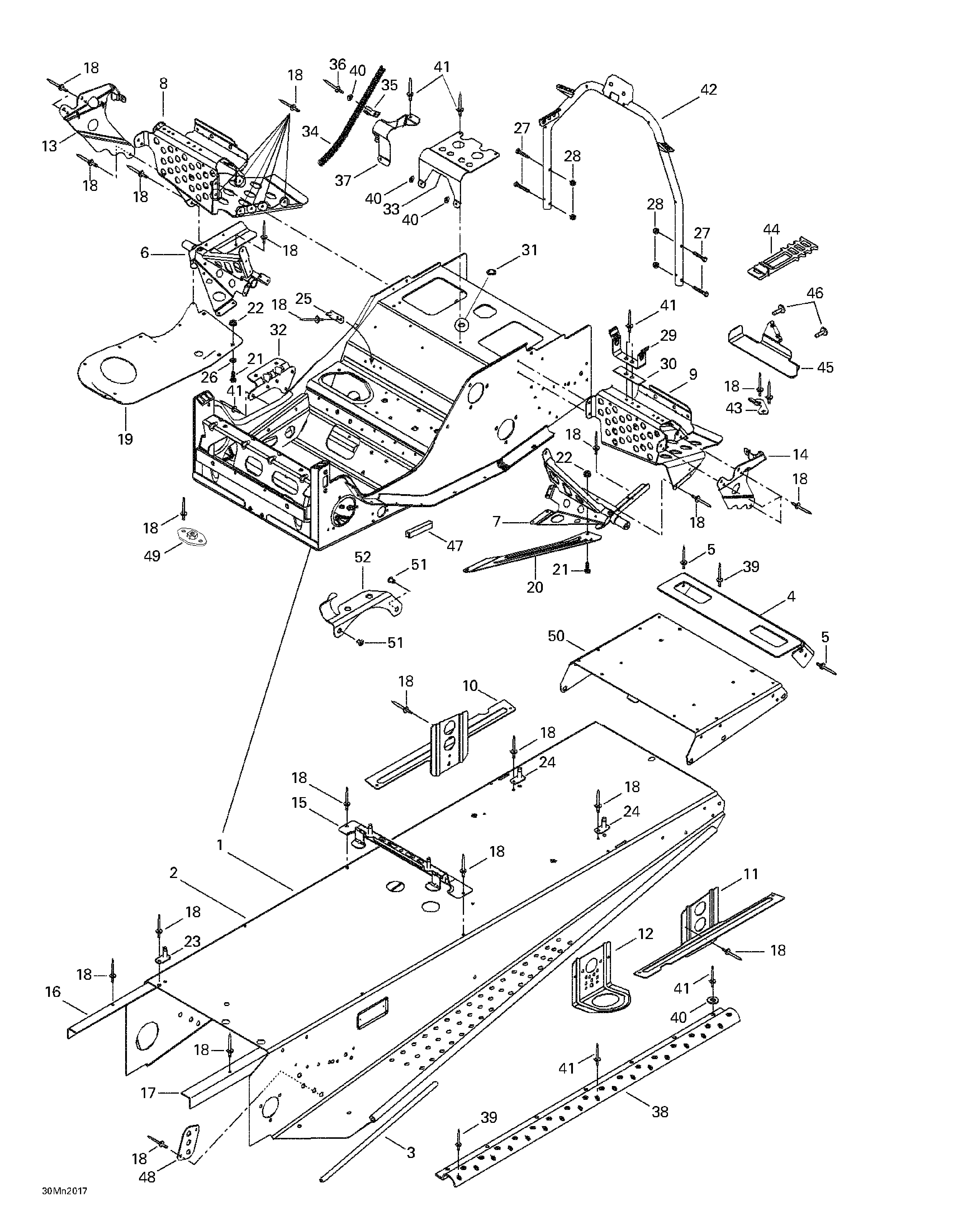

09- Frame And Accessories для BRP Ski-Doo Summit 700 - 2000
-
№АртикулНазвание
-
1518322097 Frame. Includes 1 - 26. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.Frame. Includes 1 - 26. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
-
518322100 Frame. Summit 700 HM.Frame. Summit 700 HM.
-
2518322117 Forming Frame (Tunnel). Includes 2 - 5. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.Forming Frame (Tunnel). Includes 2 - 5. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
-
518322118 Forming Frame (Tunnel). Summit 700 HM.Forming Frame (Tunnel). Summit 700 HM.
-
3518304746 Footrest ReinforcementFootrest Reinforcement
-
4518321304 Rear Cap. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.Rear Cap. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
-
518321964 Rear Cap. Summit 700 HM.Rear Cap. Summit 700 HM.
-
5390402200 Pop RivetPop Rivet
-
6518320506 R.H. Footrest SupportR.H. Footrest Support
-
7518320507 L.H. Footrest SupportL.H. Footrest Support
-
8518319722 R.H. FootrestR.H. Footrest
-
9518319723 L.H. FootrestL.H. Footrest
-
10518321502 R.H. Slide Bracket. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.R.H. Slide Bracket. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
-
518321965 R.H. Slide Bracket. Summit 700 HM.R.H. Slide Bracket. Summit 700 HM.
-
11518321506 L.H. Slide Bracket. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.L.H. Slide Bracket. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
-
518321966 L.H. Slide Bracket. Summit 700 HM.L.H. Slide Bracket. Summit 700 HM.
-
12518321495 Front BracketFront Bracket
-
13518321305 R.H. Footrest ReinforcementR.H. Footrest Reinforcement
-
14518321307 L.H. Footrest ReinforcementL.H. Footrest Reinforcement
-
15518321510 Fuel Tank Bracket. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.Fuel Tank Bracket. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
-
518322022 Fuel Tank Bracket. Summit 700 HM.Fuel Tank Bracket. Summit 700 HM.
-
16518321919 R.H. Frame ReinforcementR.H. Frame Reinforcement
-
17518321920 L.H. Frame ReinforcementL.H. Frame Reinforcement
-
18390402200 Pop RivetPop Rivet
-
19518319760 R.H. Bottom Pan PlateR.H. Bottom Pan Plate
-
20518322119 L.H. Reinforcement PlateL.H. Reinforcement Plate
-
21207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
22233251414 Elastic Flange Nut M5Elastic Flange Nut M5
-
23518321604 GuideGuide
-
24518319730 Seat BracketSeat Bracket
-
25518319728 Double BracketDouble Bracket
-
26391301700 Flat WasherFlat Washer
-
27207663544 Hex. Flange Screw M6 x 35Hex. Flange Screw M6 x 35
-
28233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
29518202100 Pulley Guard BracketPulley Guard Bracket
-
30518207500 ReinforcementReinforcement
-
31414859400 CapCap
-
32518206300 Muffler SupportMuffler Support
-
33518310400 Air Intake SupportAir Intake Support
-
34518321569 Rope GuideRope Guide
-
35518321570 ClipClip
-
36390406500 Pop RivetPop Rivet
-
37518319762 Hose SupportHose Support
-
38518319405 Strip. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.Strip. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
-
518319405 Strip. Summit 700 HM.Strip. Summit 700 HM.
-
39390402300 Pop RivetPop Rivet
-
40517225900 WasherWasher
-
41390402200 Pop RivetPop Rivet
-
42518321957 Handle SupportHandle Support
-
43518322031 Tool Kit BracketTool Kit Bracket
-
44570069700 LatchLatch
-
45518321999 Tool Kit SupportTool Kit Support
-
46390406500 Pop RivetPop Rivet
-
47271000110 TrimTrim
-
48518201321 Reinforcement PlateReinforcement Plate
-
49518201307 BracketBracket
-
50518321858 Frame Extension. Summit 700 HM.Frame Extension. Summit 700 HM.
-
51390402300 Pop RivetPop Rivet
-
52515175254 Cable SupportCable Support
