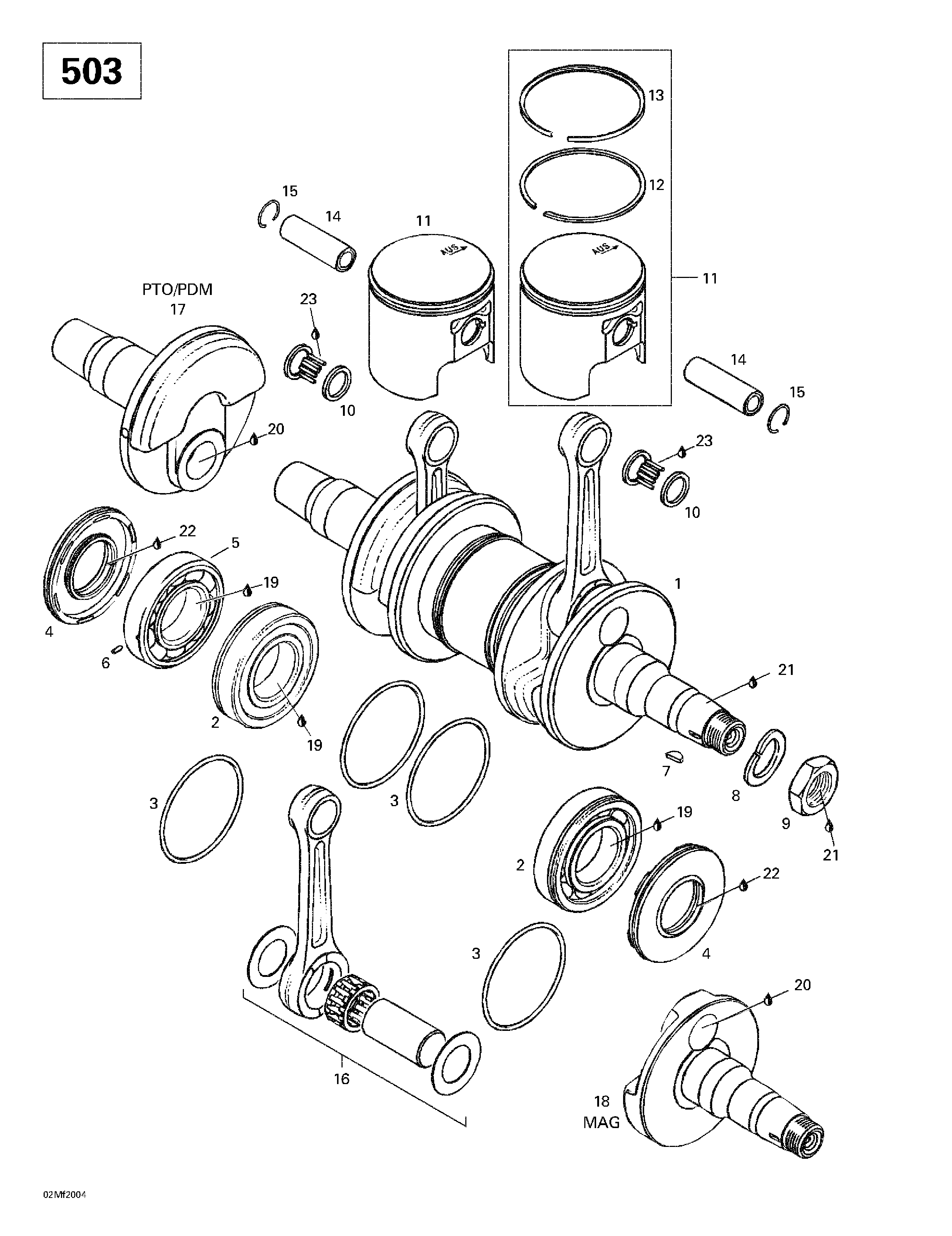

01- Crankshaft (503) для BRP Ski-Doo Touring E - 2000
-
№АртикулНазвание
-
1420888390 Crankshaft Ass'y. Includes 1 - 7. Touring SLE.Crankshaft Ass'y. Includes 1 - 7. Touring SLE.
-
2420832570 Ball Bearing 6207. Touring SLE.Ball Bearing 6207. Touring SLE.
-
3420250165 O-Ring 64 mm. Touring SLE.O-Ring 64 mm. Touring SLE.
-
4420831950 Oil Seal. Touring SLE.Oil Seal. Touring SLE.
-
5420832574 Ball Bearing 6207 Ass'y. Includes 5 - 6. Touring SLE.Ball Bearing 6207 Ass'y. Includes 5 - 6. Touring SLE.
-
6420929972 Pin Dowel. Touring SLE.Pin Dowel. Touring SLE.
-
7420246055 Woodruff Key. Touring SLE.Woodruff Key. Touring SLE.
-
8420945759 Lock Washer 22 mm. Touring SLE.Lock Washer 22 mm. Touring SLE.
-
9420842230 Hex. Nut M22. Touring SLE.Hex. Nut M22. Touring SLE.
-
10420832320 Needle Bearing. Touring SLE.Needle Bearing. Touring SLE.
-
11420888175 Piston Ass'y 71.92 mm. Includes 11 - 13. Touring SLE.Piston Ass'y 71.92 mm. Includes 11 - 13. Touring SLE.
-
420888176 Oversize Piston Ass'y. 72.17 mm. Touring SLE.Oversize Piston Ass'y. 72.17 mm. Touring SLE.
-
420888177 Oversize Piston Ass'y. 72.42 mm. Touring SLE.Oversize Piston Ass'y. 72.42 mm. Touring SLE.
-
12420915850 Rectangular Ring 72.0 mm. Touring SLE.Rectangular Ring 72.0 mm. Touring SLE.
-
420915851 Rectangular Ring 72.25 mm. Touring SLE.Rectangular Ring 72.25 mm. Touring SLE.
-
420915852 Rectangular Ring 72.5 mm. Touring SLE.Rectangular Ring 72.5 mm. Touring SLE.
-
13420815200 Semi-Trapez Ring 72.0 mm. Touring SLE.Semi-Trapez Ring 72.0 mm. Touring SLE.
-
420815201 Semi-Trapez Ring 72.25 mm. Touring SLE.Semi-Trapez Ring 72.25 mm. Touring SLE.
-
420815202 Semi-Trapez Ring 72.5 mm. Touring SLE.Semi-Trapez Ring 72.5 mm. Touring SLE.
-
14420916186 Gudgeon Pin. Touring SLE.Gudgeon Pin. Touring SLE.
-
15420945735 Piston Circlip. Touring SLE.Piston Circlip. Touring SLE.
-
16420994564 Rod Repair Kit. Touring SLE.Rod Repair Kit. Touring SLE.
-
17420818242 Half Crankshaft PTO. Touring SLE.Half Crankshaft PTO. Touring SLE.
-
18420818269 Half Crankshaft MAG. Touring SLE.Half Crankshaft MAG. Touring SLE.
-
19293800023 Loctite 767, Antiseize Lubricant, 454 g. Touring SLE.Loctite 767, Antiseize Lubricant, 454 g. Touring SLE.
-
20413711400 Loctite 642, 50 ml. Touring SLE.Loctite 642, 50 ml. Touring SLE.
-
21293800060 Loctite 243, 10 ml. Touring SLE.Loctite 243, 10 ml. Touring SLE.
-
22413707000 Molykote 111. Touring SLE.Molykote 111. Touring SLE.
-
23413802900 Injection Oil (12 x 1 Liter). Touring SLE.Injection Oil (12 x 1 Liter). Touring SLE.
