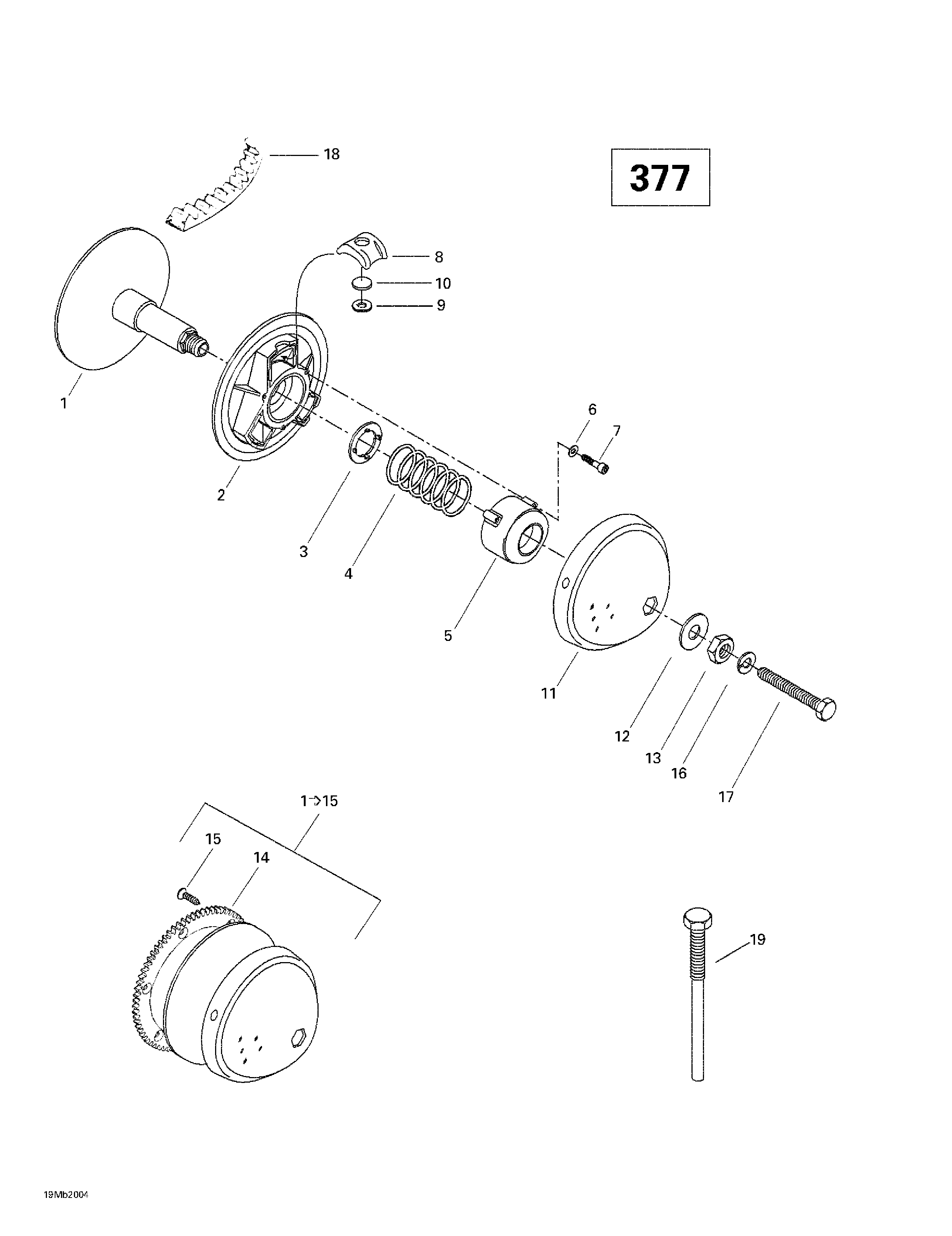

05- Drive Pulley (377) для BRP Ski-Doo Touring E - 2000
-
№АртикулНазвание
-
1417220900 Drive Pulley Ass'y. Includes 1 - 15. Touring E.Drive Pulley Ass'y. Includes 1 - 15. Touring E.
-
1417121200 Inner Flange. Touring E.Inner Flange. Touring E.
-
2417121300 Outer Flange. Touring E.Outer Flange. Touring E.
-
3417116200 Guide Washer. Touring E.Guide Washer. Touring E.
-
4417125300 Spring (Green/Green). Touring E.Spring (Green/Green). Touring E.
-
5417121400 Spring Cover. Touring E.Spring Cover. Touring E.
-
6420245370 Washer. Touring E.Washer. Touring E.
-
7205064086 Socket Head Screw M6 x 40. Touring E.Socket Head Screw M6 x 40. Touring E.
-
8417118100 Centrifugal Block. Touring E.Centrifugal Block. Touring E.
-
9417114500 Capsule. Touring E.Capsule. Touring E.
-
10417120400 Weighing. Touring E.Weighing. Touring E.
-
11417125100 Cap. Touring E.Cap. Touring E.
-
12417122400 Washer. Touring E.Washer. Touring E.
-
13417118300 Nut. Touring E.Nut. Touring E.
-
14414807500 Ring Gear (86 Thoot). Touring E.Ring Gear (86 Thoot). Touring E.
-
15210361686 Hex. Forming Screw M6 x 16. Touring E.Hex. Forming Screw M6 x 16. Touring E.
-
16392002800 Lock Spring Washer. Touring E.Lock Spring Washer. Touring E.
-
17417113800 Bolt. Touring E.Bolt. Touring E.
-
18415060600 Drive Belt. Touring E.Drive Belt. Touring E.
-
19529031400 Puller Inner Half. Touring E.Puller Inner Half. Touring E.
