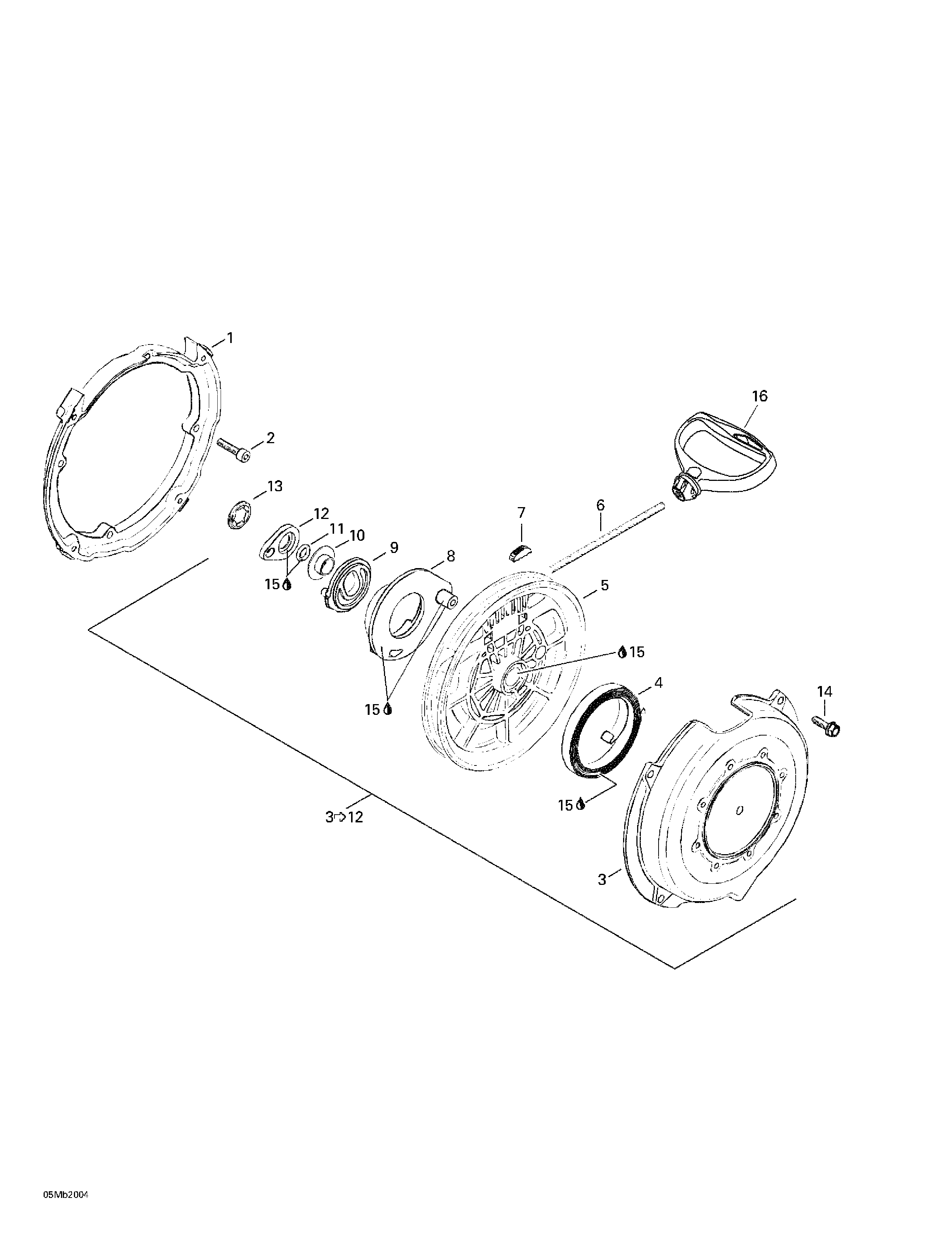

04- Rewind Starter для BRP Ski-Doo Touring E - 2000
-
№АртикулНазвание
-
1420810952 Flange ConnectorFlange Connector
-
2420840401 Socket Head Screw M6 x 22Socket Head Screw M6 x 22
-
3420888212 Rewind Starter Assy. Includes 3 - 12.Rewind Starter Assy. Includes 3 - 12.
-
3420811340 Starter HousingStarter Housing
-
4420939115 Spring Ass'ySpring Ass'y
-
5420852480 Rope SheaveRope Sheave
-
6412500100 Starter Rope 2200 mmStarter Rope 2200 mm
-
7420852070 Key ClampKey Clamp
-
8420852296 PawlPawl
-
9420852301 Pawl LockPawl Lock
-
10420847925 Stage SleeveStage Sleeve
-
11420250400 O-RingO-Ring
-
12420852520 Lock RingLock Ring
-
13420845560 Locking ElementLocking Element
-
14420941250 Self Tapping Screw M6 x 20Self Tapping Screw M6 x 20
-
15420897061 Silicone Compound GreaseSilicone Compound Grease
-
16572084400 Starter GripStarter Grip
