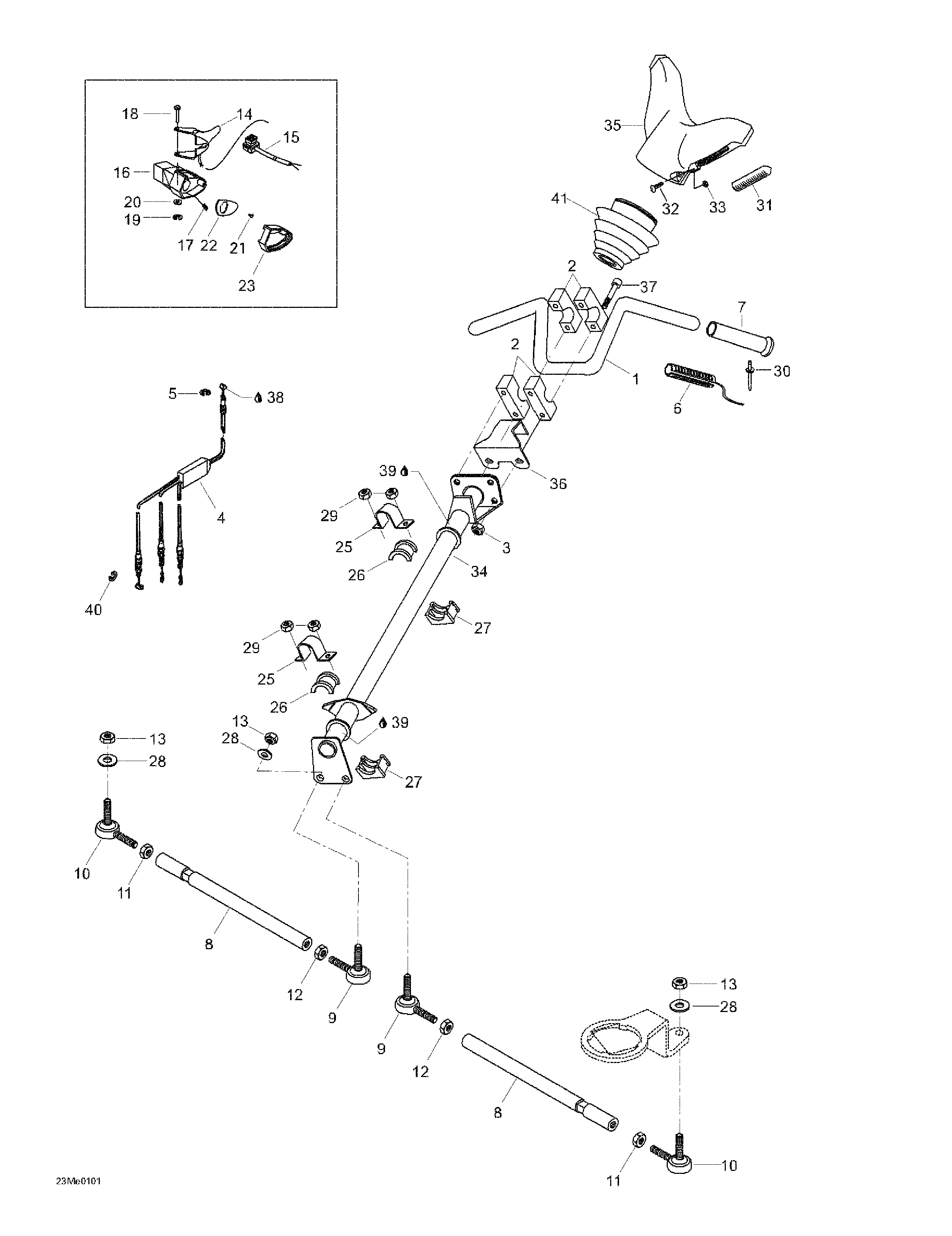

07- Steering System для BRP Ski-Doo Skandic 440F - 2001
-
№АртикулНазвание
-
1M529751 Handle BarHandle Bar
-
2M548448 Steering ClampSteering Clamp
-
3232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
4M5145673 Throttle CableThrottle Cable
-
5M31038 CirclipCirclip
-
6M5446341 Heating Grip KitHeating Grip Kit
-
7M5340464 GripGrip
-
8M548983 Tie Rod R.HTie Rod R.H
-
9414768100 L.H. Ball JointL.H. Ball Joint
-
10414768000 R.H. Ball JointR.H. Ball Joint
-
11M33019 Nut R.HNut R.H
-
12M33017 Nut L.HNut L.H
-
13M33023 NutNut
-
14M5442276 Heat Throttle HandleHeat Throttle Handle
-
15414612700 Kill SwitchKill Switch
-
16572086700 Throttle Handle HousingThrottle Handle Housing
-
17414440800 Set Screw M8 x 10Set Screw M8 x 10
-
18414438700 PinPin
-
19414439000 CirclipCirclip
-
20414438900 WasherWasher
-
21414473200 ScrewScrew
-
22572099400 PlatePlate
-
23572069300 Throttle CoverThrottle Cover
-
24M5343947 Bushing Ass'yBushing Ass'y
-
25M5343381 Retaining SupportRetaining Support
-
26572064500 BushingBushing
-
27572064400 BushingBushing
-
28M20047 Lock WasherLock Washer
-
29M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
30M36005 RivetRivet
-
31572023900 Key WayKey Way
-
32M40156 ScrewScrew
-
33M33062 Nut M5Nut M5
-
34M5245963 Main TubeMain Tube
-
35572044500 Steering PaddingSteering Padding
-
36M5444196 SupportSupport
-
37M40286 Socket Head Screw M8x45Socket Head Screw M8x45
-
38293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
39219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
40M31035 CirclipCirclip
-
41M539033 BellowBellow
