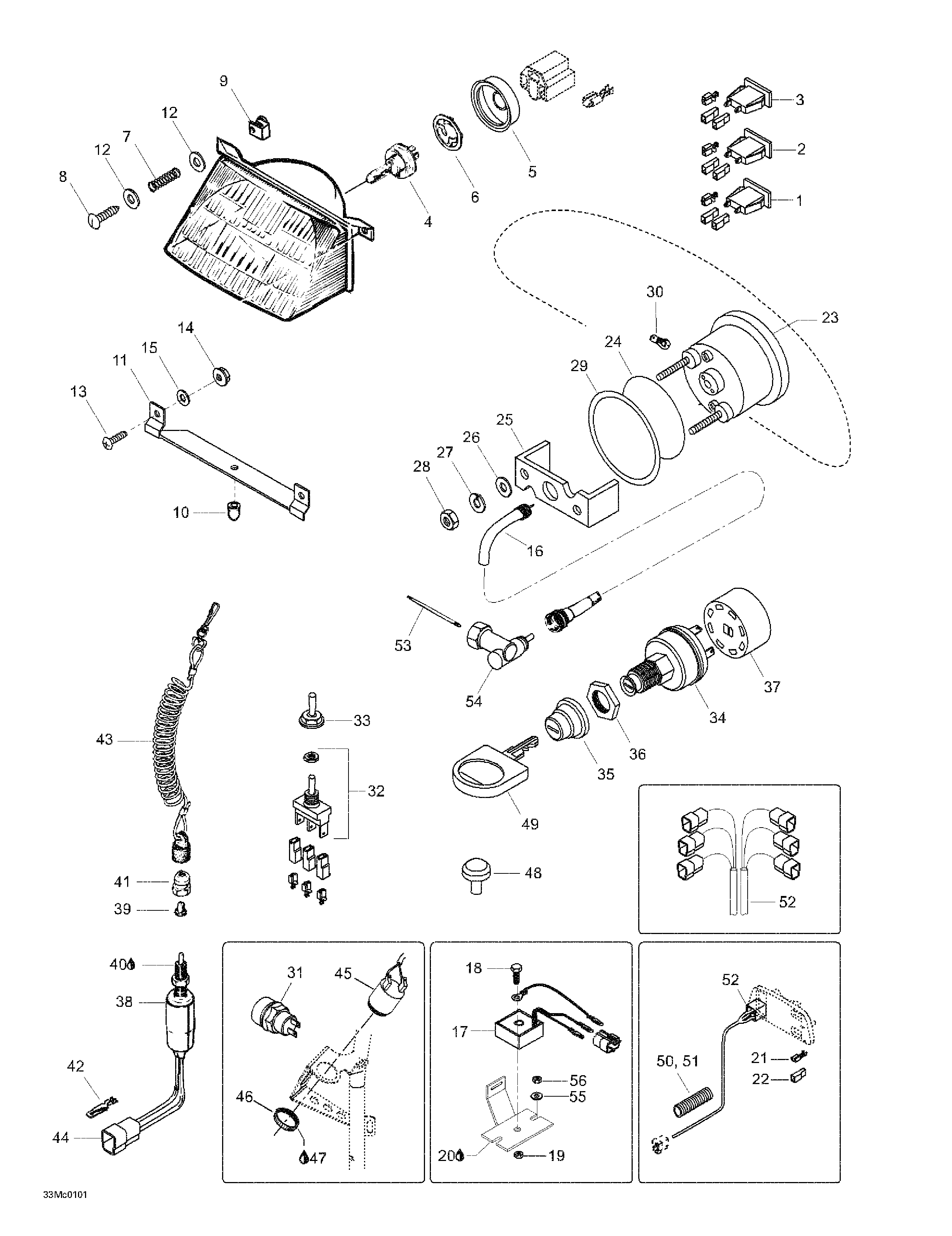

10- Electrical System для BRP Ski-Doo Skandic 440F - 2001
-
№АртикулНазвание
-
1410113400 Lamp-Pilot (Reverse)Lamp-Pilot (Reverse)
-
2410109600 Lamp-Pilot (Blue)Lamp-Pilot (Blue)
-
3410109500 Lamp-Pilot (Red)Lamp-Pilot (Red)
-
4410503700 Bulb-Hal.H4 XxBulb-Hal.H4 Xx
-
5410607100 CoverCover
-
6410608300 Holder-BulbHolder-Bulb
-
7517168600 SpringSpring
-
8243244040 Screw-Plastite M4x40Screw-Plastite M4x40
-
9572078600 Nut-LampNut-Lamp
-
10410608200 Bumper-RubberBumper-Rubber
-
11M539864 HolderHolder
-
12M20001 WasherWasher
-
13M40247 Screw M5x16Screw M5x16
-
14232551414 Nut-Stop Elastic M5Nut-Stop Elastic M5
-
15M20008 WasherWasher
-
16M45006 Cable-SpeedoCable-Speedo
-
17M5446342 Regu-Volt.AssyRegu-Volt.Assy
-
18M40003 Screw-Hex.CapScrew-Hex.Cap
-
19M33200 NutNut
-
20413707500 Grease-TubeGrease-Tube
-
21M42178 Terminal-FemalTerminal-Femal
-
22M42179 Housing-FemaleHousing-Female
-
23515175335 Speedometer. Includes 23 - 28.Speedometer. Includes 23 - 28.
-
24414807100 PackingPacking
-
25414806500 Holder-CaseHolder-Case
-
26414806800 Washer-FlatWasher-Flat
-
27414806700 Washer-LockWasher-Lock
-
28414806900 NutNut
-
29517258500 WasherWasher
-
30410504200 Bulb-MeterBulb-Meter
-
31415101200 Knob-ReverseKnob-Reverse
-
32410110700 Switch-Grip HeSwitch-Grip He
-
33515175281 Cover-SwitchCover-Switch
-
34410111300 Switch-IgnitSwitch-Ignit
-
35570013700 Boot-SwitchBoot-Switch
-
36410112100 Nut-FaceNut-Face
-
37572150700 Block-Ign.SwiBlock-Ign.Swi
-
38410106700 Switch-BrakeSwitch-Brake
-
39570151100 Cap-PlungerCap-Plunger
-
40293550004 Silicone-DieleSilicone-Diele
-
41515145900 Nut-SwitchNut-Switch
-
42M42603 Terminal-MaleTerminal-Male
-
43515151500 Cap-AssyCap-Assy
-
44M42268 Housing-MaleHousing-Male
-
45415060900 HornHorn
-
46414805101 Nut-PlasticNut-Plastic
-
47296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
48572051500 CapCap
-
49414991700 Key-BlankKey-Blank
-
50M28025 HousingHousing
-
51M28012 HousingHousing
-
52M5145613 HarnessHarness
-
53M45075 Branch-KeyBranch-Key
-
54M35021 Drive-AngleDrive-Angle
-
55M20009 Washer 6.4Washer 6.4
-
56232561414 Nut-Stop Elastic M6Nut-Stop Elastic M6
