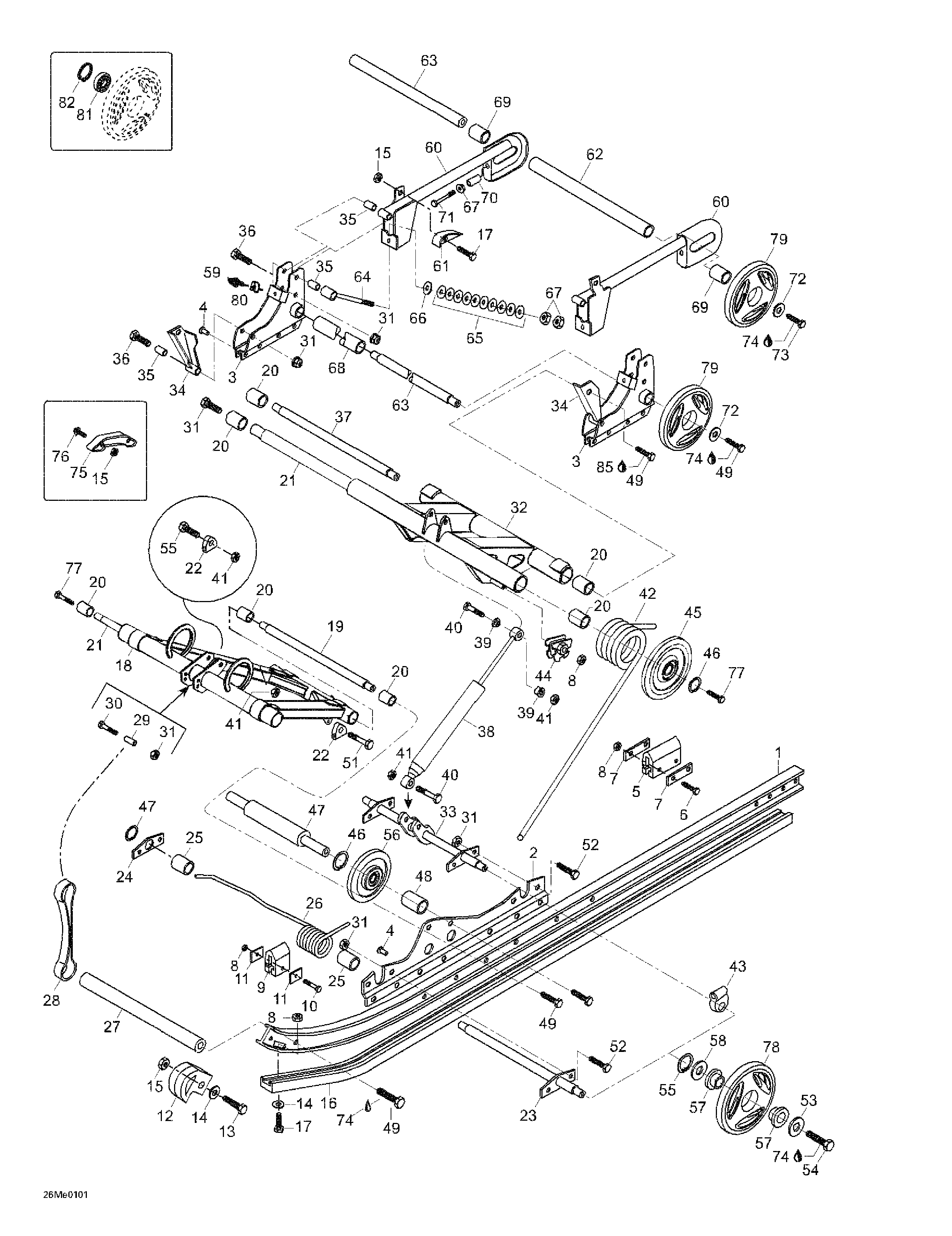

08- Rear Suspension для BRP Ski-Doo Skandic 440F - 2001
-
№АртикулНазвание
-
1M5142865 Runner-LH. Includes 1 - 5.Runner-LH. Includes 1 - 5.
-
M5142866 Runner-RHRunner-RH
-
1M5142864 RunnerRunner
-
2M5344810 Support-LHSupport-LH
-
M5344811 Support-RHSupport-RH
-
3M539672 Support LHSupport LH
-
M539673 Support RHSupport RH
-
4M544212 RivetRivet
-
5570023100 Stopper-RubberStopper-Rubber
-
6207064044 Screw-Hex.Cap M6x40Screw-Hex.Cap M6x40
-
7M548387 WasherWasher
-
8232561414 Nut-Stop Elastic M6Nut-Stop Elastic M6
-
9M5442328 Stopper-RubberStopper-Rubber
-
10207063044 Screw-Hex.Cap M6x30Screw-Hex.Cap M6x30
-
11M548470 PlatePlate
-
12M534578 Prot-RunnerProt-Runner
-
13207162544 Screw-Hex.Cap M6x25Screw-Hex.Cap M6x25
-
14234061410 Washer-Flat 6mmWasher-Flat 6mm
-
15M33200 NutNut
-
16M549582 Shoe-RunnerShoe-Runner
-
17207162044 Screw-Hex.Cap M6x20Screw-Hex.Cap M6x20
-
18M538796 Arm-Front WeldArm-Front Weld
-
19M548944 AxleAxle
-
20M31046 Bearing-SlideBearing-Slide
-
21M538945 Shaft-Cross RRShaft-Cross RR
-
22M548799 Support-SpringSupport-Spring
-
23M538802 AxleAxle
-
24M548469 Plate-SupportPlate-Support
-
25M548841 SleeveSleeve
-
26M5241177 Spring-LHSpring-LH
-
M5241178 Spring-RHSpring-RH
-
27M546599 Shaft-CrossShaft-Cross
-
28M5445988 Strap-StopperStrap-Stopper
-
29M546065 SleeveSleeve
-
30M40122 Screw-Hex.CapScrew-Hex.Cap
-
31232581414 Nut-Stop Elastic M8Nut-Stop Elastic M8
-
32M538801 Arm-Rear WeldArm-Rear Weld
-
33M538803 ShaftShaft
-
34M5440349 Lever-LHLever-LH
-
M5440350 Lever-RHLever-RH
-
35M545758 SleeveSleeve
-
36207084544 Screw-Hex.Cap M8x45Screw-Hex.Cap M8x45
-
37M548946 AxleAxle
-
38M23016 ShockShock
-
39M544417 CushionCushion
-
40207005044 Screw-Hex.Cap M10Screw-Hex.Cap M10
-
41233601416 Nut-Locking Elastic M10Nut-Locking Elastic M10
-
42M538805 Spring-LHSpring-LH
-
M538806 Spring-RHSpring-RH
-
43M548804 Support-SpringSupport-Spring
-
44572030800 Cam-Adjust.LHCam-Adjust.LH
-
572030900 Cam-Adjust.RHCam-Adjust.RH
-
45503189568 Wheel-165Wheel-165
-
46M31001 CirclipCirclip
-
47M5445985 Shaft-SupportShaft-Support
-
48M5444098 Sleeve L=29Sleeve L=29
-
49M40335 ScrewScrew
-
50207005544 Screw-Hex.Cap M10x55Screw-Hex.Cap M10x55
-
51M40042 ScrewScrew
-
52207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
53503183100 WasherWasher
-
54M40337 Screw-Hex.CapScrew-Hex.Cap
-
55M31007 CirclipCirclip
-
56503188997 Wheel-135Wheel-135
-
57503189534 CushionCushion
-
58M31091 ShimShim
-
59M535455 Stopper-RubberStopper-Rubber
-
60M5243222 Extension-RHExtension-RH
-
60M5243223 Extension-LHExtension-LH
-
61M548262 ProtectorProtector
-
62M5346739 SleeveSleeve
-
63M5445986 ShaftShaft
-
64M5440377 Bolt-Eye AdjusterBolt-Eye Adjuster
-
65M25004 Plate-SpringPlate-Spring
-
66M20011 WasherWasher
-
67232006414 Nut-Hexagonal M10Nut-Hexagonal M10
-
68M542105 Sleeve L=176Sleeve L=176
-
69M5444098 Sleeve L=29Sleeve L=29
-
70M546668 SleeveSleeve
-
71M40239 ScrewScrew
-
72503183300 WasherWasher
-
73250000019 Screw-Hex (Nylon Patch)Screw-Hex (Nylon Patch)
-
74293800060 Loctite-243Loctite-243
-
75M5343191 ProtectorProtector
-
76M40064 Screw-Hex.CapScrew-Hex.Cap
-
77M40314 ScrewScrew
-
78572097612 Wheel-135Wheel-135
-
79503189479 Wheel 165 (Yellow)Wheel 165 (Yellow)
-
80M5440645 Plate-AdjPlate-Adj
-
81405404500 Bearing-BallBearing-Ball
-
82371901700 CirclipCirclip
