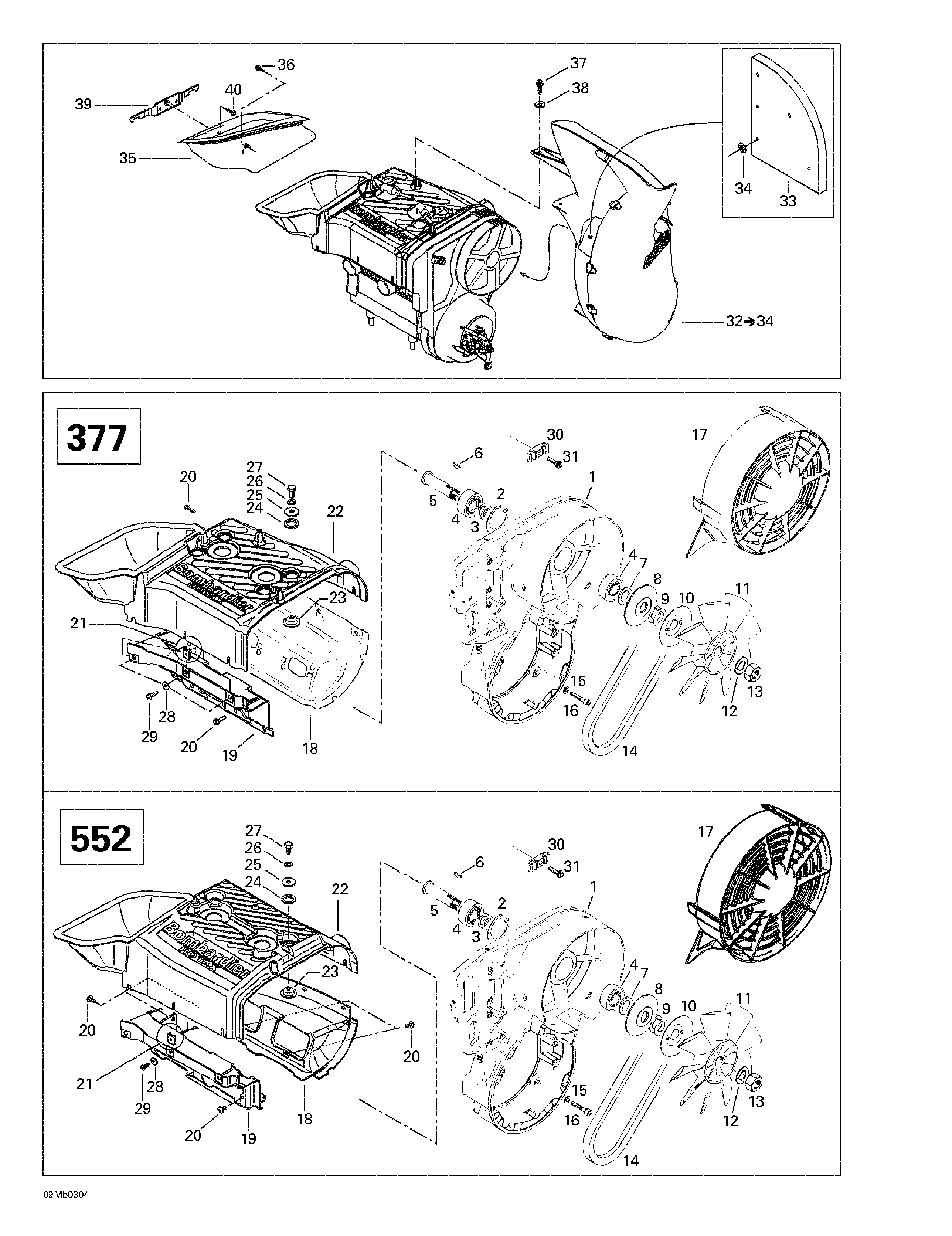

01- Cooling System And Fan для BRP Ski-Doo MX Z 380 F/550 F - 2003

№

Артикул

Название
1

420912203 Fan Housing

Fan Housing

0 ₽
2

420945880 Lock Ring

Lock Ring

1 430 ₽
3

420244585 Shim

Shim

610 ₽
4

420832160 Ball Bearing 6203

Ball Bearing 6203

0 ₽
5

420937940 Fan Axle

Fan Axle

0 ₽
6

420246015 Woodruff Key

Woodruff Key

1 040 ₽
7

420827650 Spacer Bushing

Spacer Bushing

3 820 ₽
8

420980496 Flange

Flange

3 360 ₽
9

420827080 Shim 0.5 mm

Shim 0.5 mm

740 ₽
420827082 Shim 0.2 mm

Shim 0.2 mm

1 040 ₽
10

420980523 Protection Washer

Protection Washer

3 820 ₽
11

420866292 Fan

Fan

8 700 ₽
12

420945756 Lock Washer 16 mm

Lock Washer 16 mm

1 040 ₽
13

420942285 Hex. Nut M16 x 1.5

Hex. Nut M16 x 1.5

510 ₽
14

414630800 V-Belt

V-Belt

6 190 ₽
15

420945751 Lock Washer 6 mm

Lock Washer 6 mm

70 ₽
16

205063044 Socket Head Screw M6 x 30

Socket Head Screw M6 x 30

550 ₽
17

420975695 Fan Cover

Fan Cover

2 210 ₽
18

420810764 Cylinder Cowl (Exhaust Side). MX Z 380 F. Legend 380 F.

Cylinder Cowl (Exhaust Side). MX Z 380 F. Legend 380 F.

10 760 ₽
420811392 Cylinder Cowl (Exhaust Side). MX Z 550 F. Legend 550 F.

Cylinder Cowl (Exhaust Side). MX Z 550 F. Legend 550 F.

45 110 ₽
19

420811805 Cylinder Cowl (Intake Side). MX Z 380 F. Legend 380 F.

Cylinder Cowl (Intake Side). MX Z 380 F. Legend 380 F.

0 ₽
420811830 Cylinder Cowl (Intake Side). MX Z 550 F. Legend 550 F.

Cylinder Cowl (Intake Side). MX Z 550 F. Legend 550 F.

0 ₽
20

420240580 Taptite Screw M6 x 16. MX Z 380 F. Legend 380 F.

Taptite Screw M6 x 16. MX Z 380 F. Legend 380 F.

180 ₽
420640321 Torx Screw M6 x 16. MX Z 550 F. Legend 550 F.

Torx Screw M6 x 16. MX Z 550 F. Legend 550 F.

0 ₽
21

417300005 Spring Nut 4.8

Spring Nut 4.8

360 ₽
22

420811800 Cylinder Cowl. MX Z 380 F. Legend 380 F.

Cylinder Cowl. MX Z 380 F. Legend 380 F.

17 980 ₽
420811820 Cylinder Cowl. MX Z 550 F. Legend 550 F.

Cylinder Cowl. MX Z 550 F. Legend 550 F.

17 980 ₽
23

420827817 Cup Washer

Cup Washer

4 520 ₽
24

420960865 Rubber Washer

Rubber Washer

680 ₽
25

420227935 Washer

Washer

420 ₽
26

420945752 Lock Washer 8 mm

Lock Washer 8 mm

420 ₽
27

207181644 Hex. Screw M8 x 16

Hex. Screw M8 x 16

390 ₽
28

420926180 Flat Washer

Flat Washer

160 ₽
29

417300006 Tapping Screw M4.8 x 16

Tapping Screw M4.8 x 16

250 ₽
30

420860945 Clamp

Clamp

200 ₽
31

420841555 Screw M5 x 20

Screw M5 x 20

560 ₽
32

509000218 Inlet Duct. Includes 32 - 34.

Inlet Duct. Includes 32 - 34.

2 620 ₽
33

509000152 Foam

Foam

10 ₽
34

389804300 Push Nut

Push Nut

50 ₽
35

509000118 Outlet Duct

Outlet Duct

0 ₽
36

250000068 Hex. Tapping Screw #8 x 5/8''

Hex. Tapping Screw #8 x 5/8''

160 ₽
37

241151640 Hex. Flanged Screw K50 x 16

Hex. Flanged Screw K50 x 16

540 ₽
38

391301600 Washer

Washer

50 ₽
39

509000164 Support

Support

0 ₽
40

732601210 Hex. Tapping Screw

Hex. Tapping Screw

100 ₽
