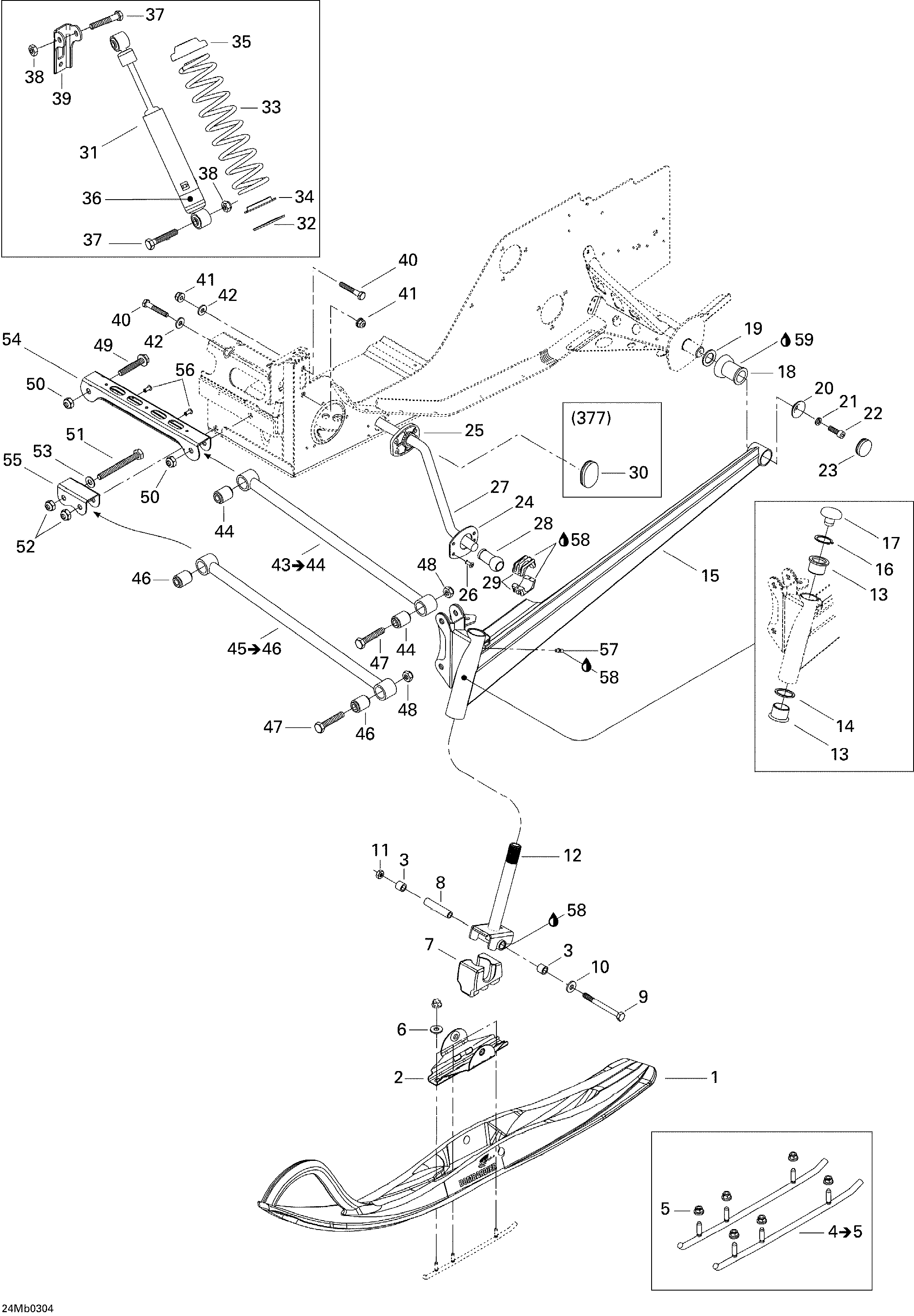

07- Front Suspension And Ski для BRP Ski-Doo MX Z 380 F/550 F - 2003

№

Артикул

Название
1

505070975 Ski Liner

Ski Liner

0 ₽
2

505070980 Bridge Ass'y

Bridge Ass'y

1 800 ₽
4

860507900 Carbide Runner Kit. Includes 4 - 5.

Carbide Runner Kit. Includes 4 - 5.

0 ₽
5

233281414 Elastic Flanged Nut M8

Elastic Flanged Nut M8

490 ₽
6

234082410 Flat Washer 8 mm

Flat Washer 8 mm

490 ₽
7

505070978 Ski Stopper

Ski Stopper

2 100 ₽
8

506133300 Spacer

Spacer

5 430 ₽
9

230003044 Hex. Screw M10 x 130

Hex. Screw M10 x 130

350 ₽
10

234001410 Flat Washer 10 mm

Flat Washer 10 mm

420 ₽
11

233201414 Elastic Flanged Nut M10

Elastic Flanged Nut M10

810 ₽
12

506151234 Ski Leg

Ski Leg

0 ₽
13

505070003 Cushion

Cushion

2 520 ₽
14

505070004 Washer

Washer

2 490 ₽
15

505070645 R.H. Swing Arm

R.H. Swing Arm

31 740 ₽
505070646 L.H. Swing Arm

L.H. Swing Arm

27 720 ₽
16

371910400 Circlip

Circlip

440 ₽
17

572091300 Cap

Cap

2 970 ₽
18

570062200 Damper

Damper

4 170 ₽
19

503146700 Washer

Washer

1 720 ₽
20

506079600 Cup. MX Z 380 F. MX Z 550 F.

Cup. MX Z 380 F. MX Z 550 F.

590 ₽
506115800 Cup. Legend 380 F. Legend 550 F.

Cup. Legend 380 F. Legend 550 F.

0 ₽
21

234181401 Lock Washer 8 mm

Lock Washer 8 mm

340 ₽
22

205582544 Socket Head Screw M8 x 25 (Scotch Grip)

Socket Head Screw M8 x 25 (Scotch Grip)

180 ₽
23

572045900 Cap. Legend 380 F. Legend 550 F.

Cap. Legend 380 F. Legend 550 F.

340 ₽
24

505070542 Plate. MX Z 550 F. Legend 550 F.

Plate. MX Z 550 F. Legend 550 F.

670 ₽
25

505070191 Bushing. MX Z 550 F. Legend 550 F.

Bushing. MX Z 550 F. Legend 550 F.

680 ₽
26

390402300 Pop Rivet 3/16''. MX Z 550 F. Legend 550 F.

Pop Rivet 3/16''. MX Z 550 F. Legend 550 F.

280 ₽
27

505070809 Stabilisator. MX Z 550 F. Legend 550 F.

Stabilisator. MX Z 550 F. Legend 550 F.

7 710 ₽
28

505070816 Ball Joint. MX Z 550 F. Legend 550 F.

Ball Joint. MX Z 550 F. Legend 550 F.

1 290 ₽
29

505070817 Sliding Bloc. MX Z 550 F. Legend 550 F.

Sliding Bloc. MX Z 550 F. Legend 550 F.

760 ₽
30

414916600 Plug (Nylon). MX Z 380 F. Legend 380 F.

Plug (Nylon). MX Z 380 F. Legend 380 F.

1 590 ₽
31

505070695 Front Shock

Front Shock

6 850 ₽
32

505070401 Washer

Washer

260 ₽
33

505070393 Spring. MX Z 380 F. MX Z 550 F.

Spring. MX Z 380 F. MX Z 550 F.

2 680 ₽
505070686 Spring. Legend 380 F. Legend 550 F.

Spring. Legend 380 F. Legend 550 F.

0 ₽
34

503187500 Spring Guide

Spring Guide

3 130 ₽
35

503140600 Spring Stopper

Spring Stopper

0 ₽
37

207005544 Hex. Screw M10 x 55

Hex. Screw M10 x 55

800 ₽
38

233601416 Elastic Locking Nut M10

Elastic Locking Nut M10

610 ₽
39

518317518 R.H. Shock Bracket

R.H. Shock Bracket

920 ₽
518317519 L.H. Shock Bracket

L.H. Shock Bracket

750 ₽
40

207085044 Hex. Screw M8 x 50

Hex. Screw M8 x 50

140 ₽
41

233281414 Elastic Flanged Nut M8

Elastic Flanged Nut M8

490 ₽
42

506151245 Washer

Washer

90 ₽
43

505070580 Upper Arm Ass'y. Includes 43 - 44.

Upper Arm Ass'y. Includes 43 - 44.

6 410 ₽
44

505070025 Bushing

Bushing

700 ₽
45

505070402 Lower Arm Ass'y. Includes 45 - 46.

Lower Arm Ass'y. Includes 45 - 46.

5 210 ₽
46

505070025 Bushing

Bushing

700 ₽
47

207005544 Hex. Screw M10 x 55

Hex. Screw M10 x 55

800 ₽
48

233601416 Elastic Locking Nut M10

Elastic Locking Nut M10

610 ₽
49

207605544 Hex. Flanged Screw M10 x 55

Hex. Flanged Screw M10 x 55

1 200 ₽
50

233601416 Elastic Locking Nut M10

Elastic Locking Nut M10

610 ₽
51

207009544 Hex. Screw M10 x 95

Hex. Screw M10 x 95

280 ₽
52

233601416 Elastic Locking Nut M10

Elastic Locking Nut M10

610 ₽
53

234001410 Flat Washer 10 mm

Flat Washer 10 mm

420 ₽
54

505070010 Upper Arm Bracket

Upper Arm Bracket

570 ₽
55

505070011 Lower Arm Bracket

Lower Arm Bracket

210 ₽
56

390402200 Pop Rivet 3/16''

Pop Rivet 3/16''

120 ₽
57

408200700 Grease Fitting

Grease Fitting

1 330 ₽
58

219700417 Synthetic Grease, 400g

Synthetic Grease, 400g

0 ₽
59

293550014 Grease, Super Lube

Grease, Super Lube

0 ₽
