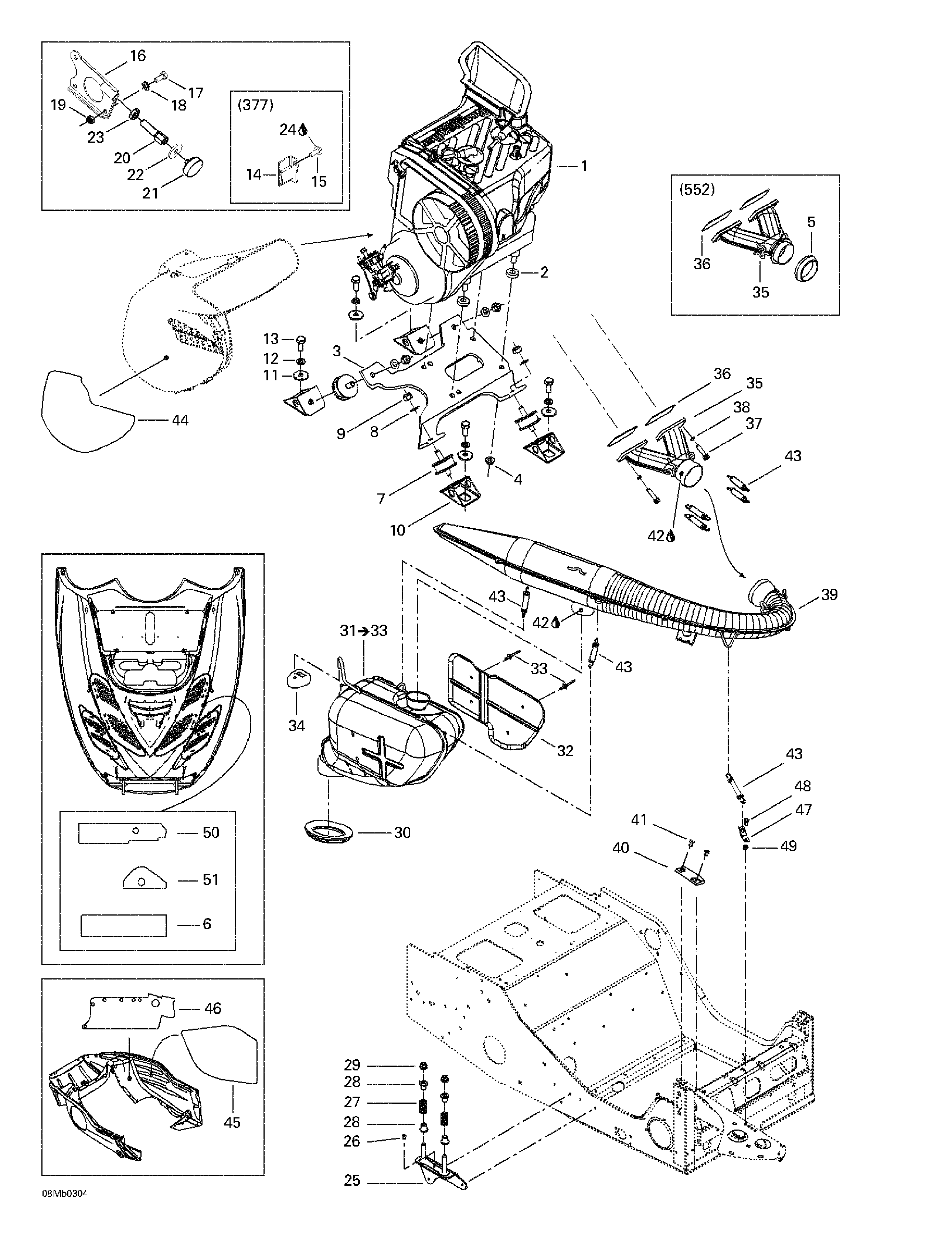

01- Engine Support And Muffler для BRP Ski-Doo MX Z 380 F/550 F - 2003

№

Артикул

Название
1

400308911 > Engine. MX Z 380 F. Legend 380 F.

> Engine. MX Z 380 F. Legend 380 F.

0 ₽
400509734 > Engine. MX Z 550 F. Legend 550 F.

> Engine. MX Z 550 F. Legend 550 F.

0 ₽
2

512051800 Spacer. MX Z 380 F. Legend 380 F.

Spacer. MX Z 380 F. Legend 380 F.

250 ₽
3

512059397 Engine Support

Engine Support

9 710 ₽
4

233201414 Elastic Flanged Nut M10

Elastic Flanged Nut M10

810 ₽
5

514053644 Exhaust Gasket. MX Z 550 F. Legend 550 F.

Exhaust Gasket. MX Z 550 F. Legend 550 F.

8 330 ₽
6

514053392 Reflective Sheet

Reflective Sheet

220 ₽
7

570128700 Rubber Mount

Rubber Mount

18 870 ₽
8

234001410 Flat Washer 10 mm

Flat Washer 10 mm

420 ₽
9

233601416 Elastic Locking Nut M10

Elastic Locking Nut M10

610 ₽
10

512050900 Engine Support

Engine Support

860 ₽
11

512056700 Lock Washer

Lock Washer

3 780 ₽
12

234100602 Lock Spring Washer 10 mm

Lock Spring Washer 10 mm

130 ₽
13

207102544 Hex. Screw M10 x 25

Hex. Screw M10 x 25

120 ₽
14

512059399 Stopper Plate. MX Z 380 F. Legend 380 F.

Stopper Plate. MX Z 380 F. Legend 380 F.

0 ₽
15

236282084 Screw M8 x 20. MX Z 380 F. Legend 380 F.

Screw M8 x 20. MX Z 380 F. Legend 380 F.

540 ₽
16

512059446 Support Plate

Support Plate

0 ₽
17

207182044 Hex. Screw M8 x 20

Hex. Screw M8 x 20

70 ₽
18

234081410 Flat Washer 8 mm

Flat Washer 8 mm

310 ₽
19

232581414 Elastic Stop Nut M8

Elastic Stop Nut M8

210 ₽
20

512058800 Screw

Screw

1 120 ₽
21

512059056 Stopper

Stopper

1 630 ₽
22

512059057 Washer

Washer

130 ₽
23

732610019 Hex. Jam Nut M12

Hex. Jam Nut M12

280 ₽
24

293800005 Loctite 271, 10 ml. MX Z 380 F. Legend 380 F.

Loctite 271, 10 ml. MX Z 380 F. Legend 380 F.

2 300 ₽
25

514053263 Bracket

Bracket

570 ₽
26

390402200 Pop Rivet 3/16''

Pop Rivet 3/16''

120 ₽
27

414913700 Spring

Spring

310 ₽
28

514053343 Guide

Guide

2 010 ₽
29

233481413 Lock Spring Nut M8

Lock Spring Nut M8

400 ₽
30

570039000 Exhaust Grommet

Exhaust Grommet

6 580 ₽
31

514053387 Muffler Ass'y. Includes 31 - 33. MX Z 380 F. Legend 380 F.

Muffler Ass'y. Includes 31 - 33. MX Z 380 F. Legend 380 F.

0 ₽
514053648 Muffler Ass'y. MX Z 550 F. Legend 550 F.

Muffler Ass'y. MX Z 550 F. Legend 550 F.

50 720 ₽
32

514053389 Heat Shield

Heat Shield

800 ₽
33

390910000 Pop Rivet 3/16''

Pop Rivet 3/16''

210 ₽
34

514052704 Rubber Bumper

Rubber Bumper

1 330 ₽
35

420673065 Exhaust Manifold. MX Z 550 F. Legend 550 F.

Exhaust Manifold. MX Z 550 F. Legend 550 F.

105 700 ₽
420878938 Exhaust Manifold. MX Z 380 F. Legend 380 F.

Exhaust Manifold. MX Z 380 F. Legend 380 F.

10 ₽
36

420831849 Gasket 1 mm. MX Z 550 F. Legend 550 F.

Gasket 1 mm. MX Z 550 F. Legend 550 F.

3 340 ₽
420850114 Gasket. MX Z 380 F. Legend 380 F.

Gasket. MX Z 380 F. Legend 380 F.

990 ₽
37

205083044 Socket Head Screw M8 x 30

Socket Head Screw M8 x 30

390 ₽
38

234181401 Lock Washer 8 mm

Lock Washer 8 mm

340 ₽
39

514053243 Calibration Tube. MX Z 380 F. Legend 380 F.

Calibration Tube. MX Z 380 F. Legend 380 F.

40 020 ₽
514053645 Calibration Tube. MX Z 550 F. Legend 550 F.

Calibration Tube. MX Z 550 F. Legend 550 F.

42 090 ₽
40

570044100 Rubber Pad

Rubber Pad

590 ₽
41

293150103 Pop Rivet 3/16''

Pop Rivet 3/16''

210 ₽
42

293800090 Sealant, Loctite, 80 ml

Sealant, Loctite, 80 ml

2 670 ₽
43

415107100 Spring

Spring

1 990 ₽
44

514053363 Reflective Sheet

Reflective Sheet

0 ₽
45

514052718 Reflective Sheet

Reflective Sheet

1 190 ₽
46

514053390 Reflective Sheet

Reflective Sheet

1 470 ₽
47

514034000 Spring Bracket

Spring Bracket

0 ₽
48

207151244 Hex. Screw M5 x 12

Hex. Screw M5 x 12

90 ₽
49

233251414 Elastic Flanged Nut M5

Elastic Flanged Nut M5

100 ₽
50

514053435 Reflective Sheet

Reflective Sheet

210 ₽
51

514053446 Reflective Sheet

Reflective Sheet

210 ₽
