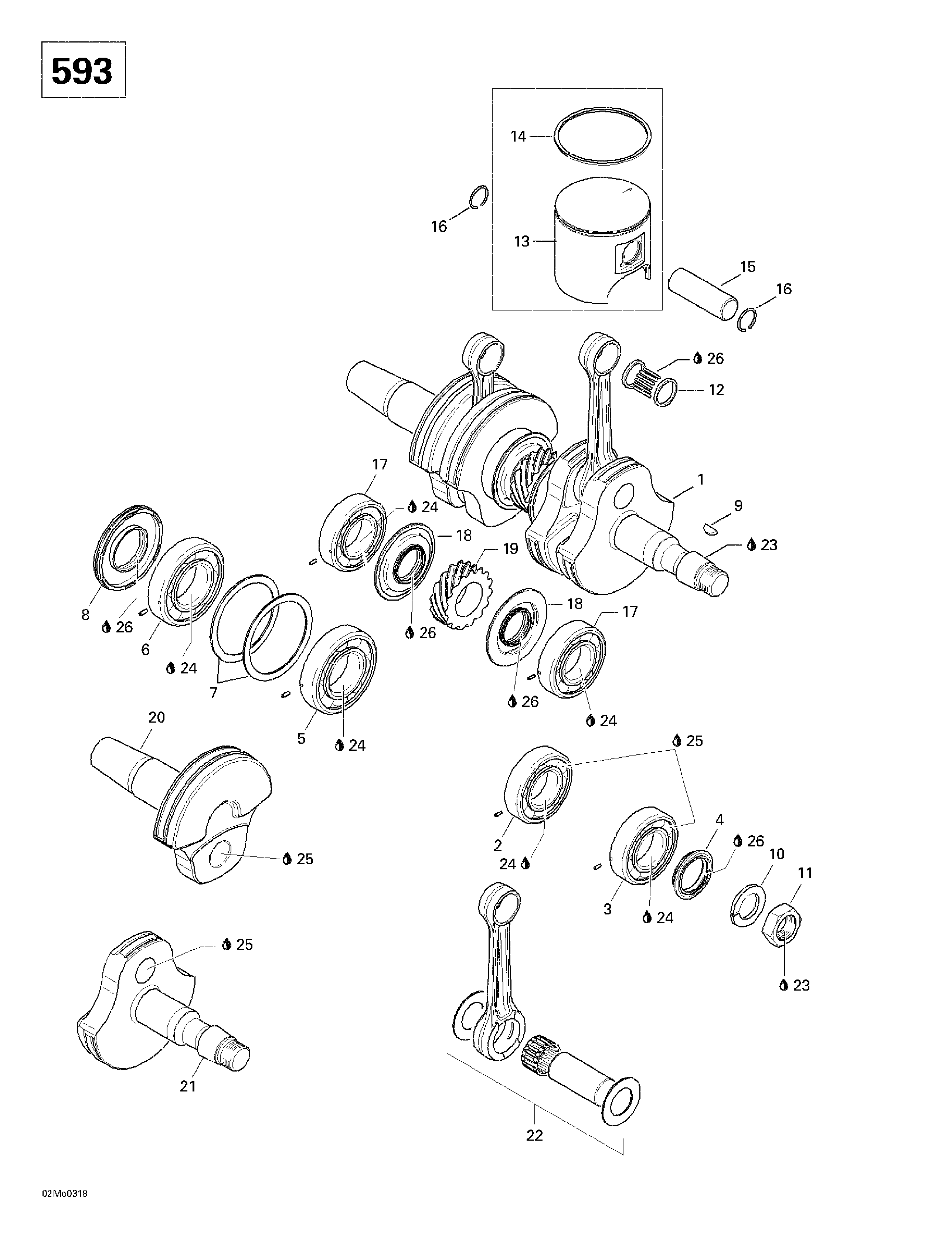

01- Crankshaft And Pistons (593) для BRP Ski-Doo Skandic 600 - 2003
-
№АртикулНазвание
-
1420888757 Crankshaft Ass'y (600). Includes 1 - 9. Skandic 600.Crankshaft Ass'y (600). Includes 1 - 9. Skandic 600.
-
2420832595 Ball Bearing 6206. Skandic 600.Ball Bearing 6206. Skandic 600.
-
3420832590 Ball Bearing 6206. Skandic 600.Ball Bearing 6206. Skandic 600.
-
4420931792 Oil Seal. Skandic 600.Oil Seal. Skandic 600.
-
5420832635 Ball Bearing 6207. Skandic 600.Ball Bearing 6207. Skandic 600.
-
6420832575 Ball Bearing 6207. Skandic 600.Ball Bearing 6207. Skandic 600.
-
7420927710 Retaining Disk. Skandic 600.Retaining Disk. Skandic 600.
-
8290831950 Oil Seal. Skandic 600.Oil Seal. Skandic 600.
-
9420246015 Woodfuff Key. Skandic 600.Woodfuff Key. Skandic 600.
-
10420945759 Lock Washer 22 mm. Skandic 600.Lock Washer 22 mm. Skandic 600.
-
11420842234 Hex. Nut M22. Skandic 600.Hex. Nut M22. Skandic 600.
-
12420832425 Needle Bearing (600). Skandic 600.Needle Bearing (600). Skandic 600.
-
13420889170 Piston Ass'y (1 Ring 75.88 mm) (600). Includes 13 - 14. Skandic 600.Piston Ass'y (1 Ring 75.88 mm) (600). Includes 13 - 14. Skandic 600.
-
420889171 Oversize Piston Ass'y (600). Skandic 600.Oversize Piston Ass'y (600). Skandic 600.
-
14420815155 Semi-Trapez Ring (600). Skandic 600.Semi-Trapez Ring (600). Skandic 600.
-
420815156 Oversize Semi-Trapez Ring 76,25 mm (600). Skandic 600.Oversize Semi-Trapez Ring 76,25 mm (600). Skandic 600.
-
15420916410 Gudgeon Pin (600). Skandic 600.Gudgeon Pin (600). Skandic 600.
-
16420845106 Piston Circlip (600). Skandic 600.Piston Circlip (600). Skandic 600.
-
17420832590 Ball Bearing 6206. Skandic 600.Ball Bearing 6206. Skandic 600.
-
18420931940 Oil Seal. Skandic 600.Oil Seal. Skandic 600.
-
19420834350 Central Gear 15 Teeth. Skandic 600.Central Gear 15 Teeth. Skandic 600.
-
20420818666 Crankshaft (PTO side). Skandic 600.Crankshaft (PTO side). Skandic 600.
-
21420818693 Crankshaft (MAG side). Skandic 600.Crankshaft (MAG side). Skandic 600.
-
22420888753 Rod Repair Kit (MAG side) (600). Skandic 600.Rod Repair Kit (MAG side) (600). Skandic 600.
-
420888754 Rod Repair Kit (PTO side) (600). Skandic 600.Rod Repair Kit (PTO side) (600). Skandic 600.
-
23293800060 Loctite 243, 10 ml. Skandic 600.Loctite 243, 10 ml. Skandic 600.
-
24293800023 Loctite 767, Antiseize Lubricant, 454 g. Skandic 600.Loctite 767, Antiseize Lubricant, 454 g. Skandic 600.
-
25413711400 Loctite 648, 10 ml. Skandic 600.Loctite 648, 10 ml. Skandic 600.
-
26413802900 Injection Oil (12 x 1 Liter). Skandic 600.Injection Oil (12 x 1 Liter). Skandic 600.
