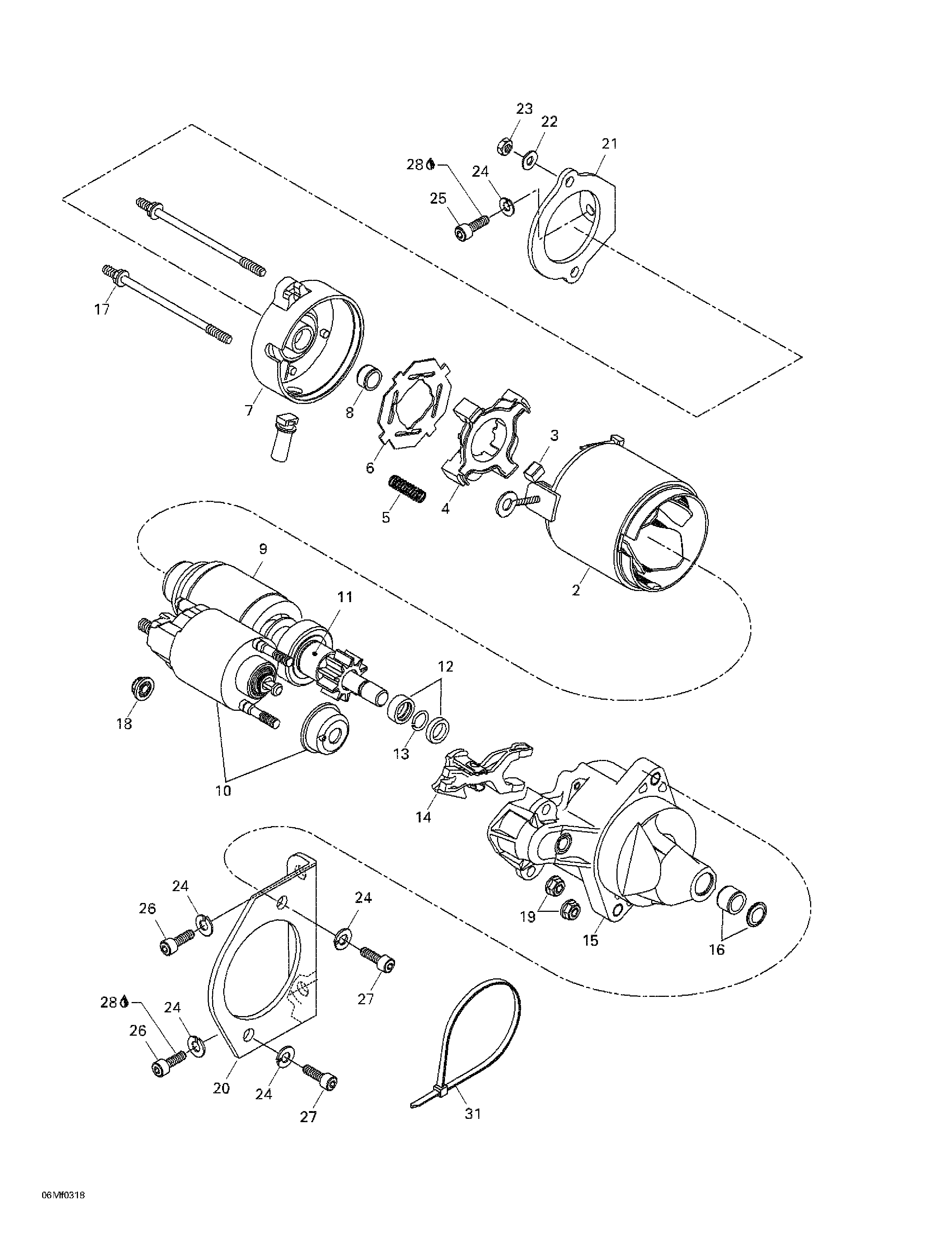

04- Electric Starter для BRP Ski-Doo Skandic 600 - 2003
-
№АртикулНазвание
-
1410212400 Electric Starter Ass'y. Includes 1 - 19. Skandic 500F. Skandic 500F (SWT).Electric Starter Ass'y. Includes 1 - 19. Skandic 500F. Skandic 500F (SWT).
-
2410209500 Housing Starter. Skandic 500F. Skandic 500F (SWT).Housing Starter. Skandic 500F. Skandic 500F (SWT).
-
3410209600 Brush. Skandic 500F. Skandic 500F (SWT).Brush. Skandic 500F. Skandic 500F (SWT).
-
4410209700 Brush Holder. Skandic 500F. Skandic 500F (SWT).Brush Holder. Skandic 500F. Skandic 500F (SWT).
-
5410209800 Spring. Skandic 500F. Skandic 500F (SWT).Spring. Skandic 500F. Skandic 500F (SWT).
-
6410209900 Insulator. Skandic 500F. Skandic 500F (SWT).Insulator. Skandic 500F. Skandic 500F (SWT).
-
8410210100 Bushing Brass. Skandic 500F. Skandic 500F (SWT).Bushing Brass. Skandic 500F. Skandic 500F (SWT).
-
9410210200 Armature Ass'y. Skandic 500F. Skandic 500F (SWT).Armature Ass'y. Skandic 500F. Skandic 500F (SWT).
-
10410210300 Switch Ass'y. Skandic 500F. Skandic 500F (SWT).Switch Ass'y. Skandic 500F. Skandic 500F (SWT).
-
11410210400 Clutch. Skandic 500F. Skandic 500F (SWT).Clutch. Skandic 500F. Skandic 500F (SWT).
-
12410212500 Toothed Nut. Skandic 500F. Skandic 500F (SWT).Toothed Nut. Skandic 500F. Skandic 500F (SWT).
-
13410212600 Circlip. Skandic 500F. Skandic 500F (SWT).Circlip. Skandic 500F. Skandic 500F (SWT).
-
14410210700 Lever. Skandic 500F. Skandic 500F (SWT).Lever. Skandic 500F. Skandic 500F (SWT).
-
15410210800 Housing. Skandic 500F. Skandic 500F (SWT).Housing. Skandic 500F. Skandic 500F (SWT).
-
16410210900 Bushing Brass. Skandic 500F. Skandic 500F (SWT).Bushing Brass. Skandic 500F. Skandic 500F (SWT).
-
17410212000 Bolt. Skandic 500F. Skandic 500F (SWT).Bolt. Skandic 500F. Skandic 500F (SWT).
-
18410211100 Nut. Skandic 500F. Skandic 500F (SWT).Nut. Skandic 500F. Skandic 500F (SWT).
-
19410211200 Nut. Skandic 500F. Skandic 500F (SWT).Nut. Skandic 500F. Skandic 500F (SWT).
-
20420951415 Starter Bracket (PTO). Skandic 500F. Skandic 500F (SWT).Starter Bracket (PTO). Skandic 500F. Skandic 500F (SWT).
-
21420951426 Starter Bracket (MAG). Skandic 500F. Skandic 500F (SWT).Starter Bracket (MAG). Skandic 500F. Skandic 500F (SWT).
-
22M20008 Flat Washer 5 mm. Skandic 500F. Skandic 500F (SWT).Flat Washer 5 mm. Skandic 500F. Skandic 500F (SWT).
-
23232551414 Elastic Stop Nut M5. Skandic 500F. Skandic 500F (SWT).Elastic Stop Nut M5. Skandic 500F. Skandic 500F (SWT).
-
24234181401 Lock Washer 8 mm. Skandic 500F. Skandic 500F (SWT).Lock Washer 8 mm. Skandic 500F. Skandic 500F (SWT).
-
25M40066 Hex. Screw M8 x 16. Skandic 500F. Skandic 500F (SWT).Hex. Screw M8 x 16. Skandic 500F. Skandic 500F (SWT).
-
26205082044 Allen Screw M8 x 20. Skandic 500F. Skandic 500F (SWT).Allen Screw M8 x 20. Skandic 500F. Skandic 500F (SWT).
-
27207182044 Hex. Screw M8 x 20. Skandic 500F. Skandic 500F (SWT).Hex. Screw M8 x 20. Skandic 500F. Skandic 500F (SWT).
-
28293800060 Loctite 243, 10 mL. Skandic 500F. Skandic 500F (SWT).Loctite 243, 10 mL. Skandic 500F. Skandic 500F (SWT).
