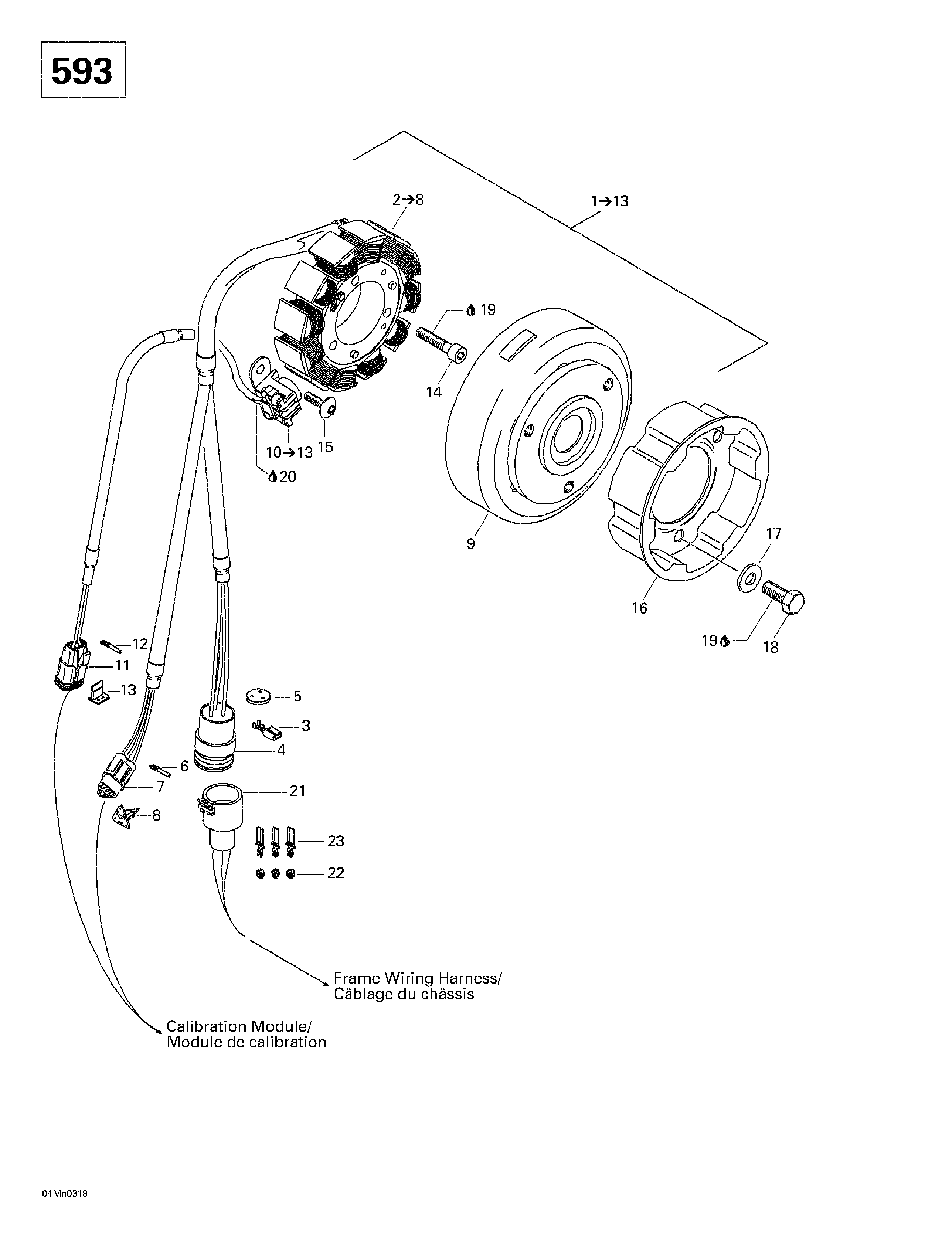

03- Magneto (12V, 290W) (593) для BRP Ski-Doo Skandic 600 - 2003
-
№АртикулНазвание
-
2410922949 Stator Plate Ass'y. Includes 2 - 8. Skandic 600.Stator Plate Ass'y. Includes 2 - 8. Skandic 600.
-
3409011900 Female Terminal. Skandic 600.Female Terminal. Skandic 600.
-
4409208200 Female Terminal Housing (3 circuits). Skandic 600.Female Terminal Housing (3 circuits). Skandic 600.
-
6278000632 Female Terminal. Skandic 600.Female Terminal. Skandic 600.
-
7409207400 Female Terminal Housing (3 circuits). Skandic 600.Female Terminal Housing (3 circuits). Skandic 600.
-
8409207200 (Female) Secondary Lock (3 Circuits) (Deutsch). Skandic 600.(Female) Secondary Lock (3 Circuits) (Deutsch). Skandic 600.
-
9410922950 Flywheel. Skandic 600.Flywheel. Skandic 600.
-
10410922951 Pick-up Ass'y. Includes 10 - 13. Skandic 600.Pick-up Ass'y. Includes 10 - 13. Skandic 600.
-
11409207300 Female Terminal Housing (2 circuits). Skandic 600.Female Terminal Housing (2 circuits). Skandic 600.
-
12278000632 Female Terminal. Skandic 600.Female Terminal. Skandic 600.
-
13409207100 Female Lock (2 circuits). Skandic 600.Female Lock (2 circuits). Skandic 600.
-
14205063044 Socket Head Screw M6 x 30. Skandic 600.Socket Head Screw M6 x 30. Skandic 600.
-
15420640321 Screw M5 x 16. Skandic 600.Screw M5 x 16. Skandic 600.
-
16420852590 Pulley Starting. Skandic 600.Pulley Starting. Skandic 600.
-
17420827405 Lock Washer 8 mm. Skandic 600.Lock Washer 8 mm. Skandic 600.
-
18420841520 Socket Head Screw M8 x 12. Skandic 600.Socket Head Screw M8 x 12. Skandic 600.
-
19293800060 Loctite 243, 10 ml. Skandic 600.Loctite 243, 10 ml. Skandic 600.
-
21409207900 Male Terminal Housing (3 circuits). Skandic 600.Male Terminal Housing (3 circuits). Skandic 600.
-
22409208500 Seal. Skandic 600.Seal. Skandic 600.
-
23409011100 Male Terminal. Skandic 600.Male Terminal. Skandic 600.
