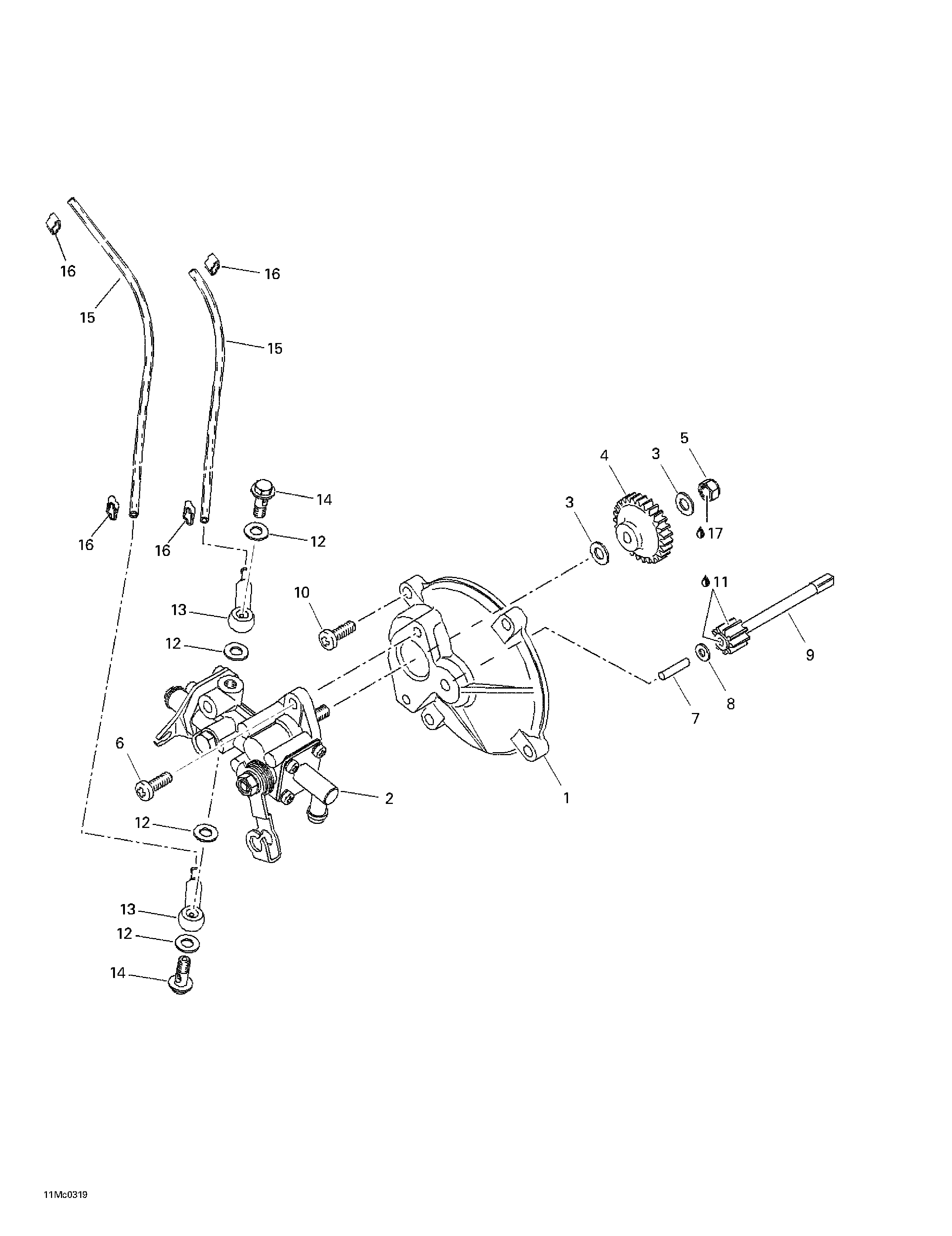

02- Oil Injection System для BRP Ski-Doo Skandic LT 440F - 2003
-
№АртикулНазвание
-
1420910160 Pump mounting flangePump mounting flange
-
2420887996 Oil pump ass'yOil pump ass'y
-
3420927945 WasherWasher
-
4420935930 Oil pump gear (27 teeth)Oil pump gear (27 teeth)
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6420841970 Plastite screw M5.5 x 16Plastite screw M5.5 x 16
-
7420832260 Needle pinNeedle pin
-
8420244073 Washer 4.3Washer 4.3
-
9420935970 Gear (9 teeth)Gear (9 teeth)
-
10420841970 Taptite screw M5.5 x 16Taptite screw M5.5 x 16
-
11413707000 Molykote 111Molykote 111
-
12404146600 Gasket ringGasket ring
-
13420956010 Check valve ass'yCheck valve ass'y
-
14404146800 Banjo bolt M6 x 16Banjo bolt M6 x 16
-
15414413800 Oil lineOil line
-
16420853840 ClampClamp
-
17293800060 Loctite 243, 10 mlLoctite 243, 10 ml
