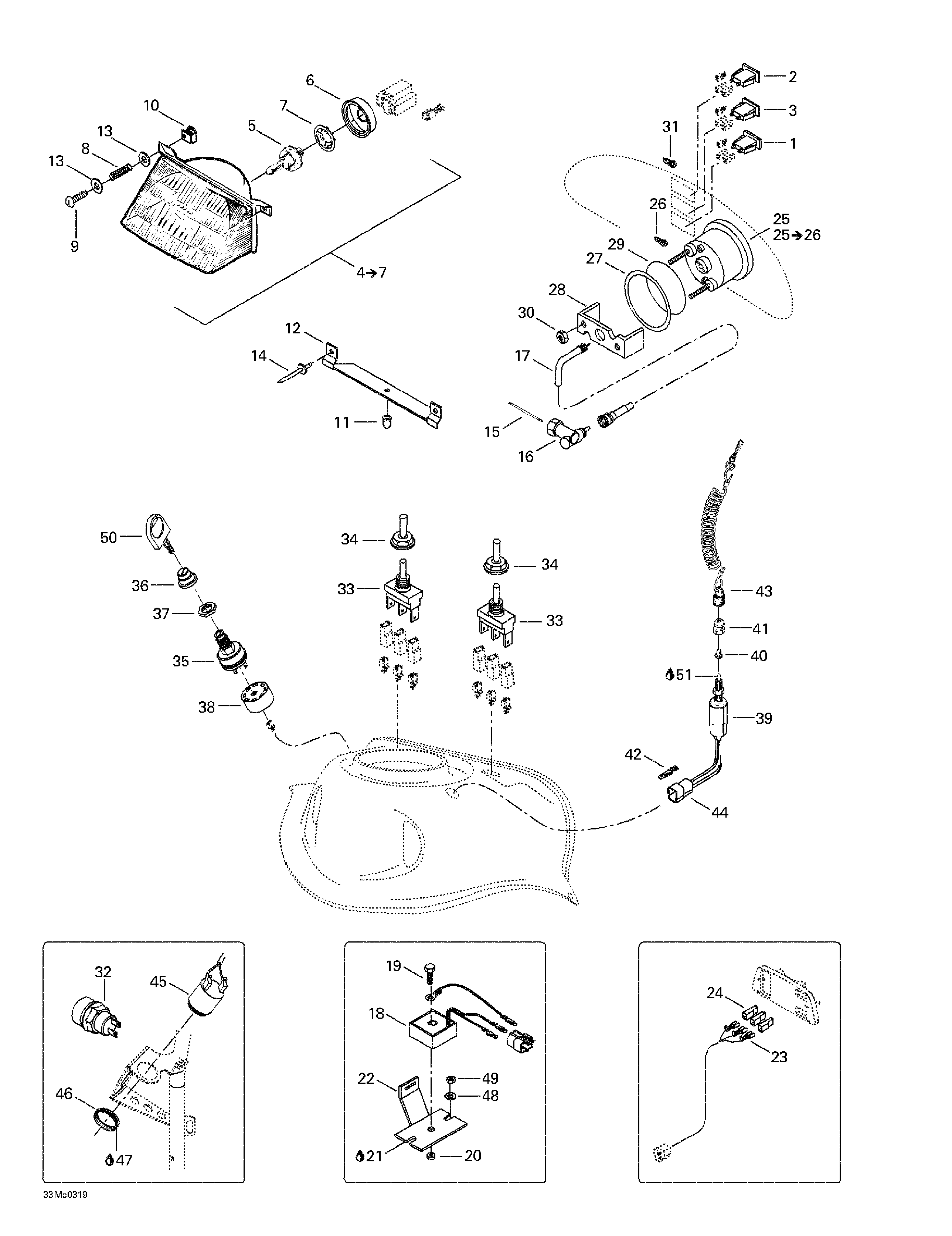

10- Electrical System для BRP Ski-Doo Skandic LT 440F - 2003
-
№АртикулНазвание
-
1410113400 Pilot lamp (Reverse)Pilot lamp (Reverse)
-
2515175726 Pilot lamp (Blue)Pilot lamp (Blue)
-
3515175728 Pilot lamp (Red)Pilot lamp (Red)
-
4410609300 Head lamp Ass'y. Includes 4 - 7.Head lamp Ass'y. Includes 4 - 7.
-
5410503700 Halogen bulbHalogen bulb
-
6410607100 CoverCover
-
7410608300 Bulb holderBulb holder
-
8517168600 SpringSpring
-
9243244040 Plastite screw M4 x 40Plastite screw M4 x 40
-
10572078600 Lamp nutLamp nut
-
11410608200 Rubber bumperRubber bumper
-
12M539864 HolderHolder
-
13234051410 Washer 5 mmWasher 5 mm
-
14M36489 RivetRivet
-
15M45075 Key branchKey branch
-
16M35021 Angle driveAngle drive
-
17M45006 Speedometer cableSpeedometer cable
-
18M5446342 Voltage regulator ass'yVoltage regulator ass'y
-
19M40003 Hex. cap screwHex. cap screw
-
20M33200 NutNut
-
21413707500 Tube greaseTube grease
-
22M5346798 Cooling plateCooling plate
-
23M42178 Female terminalFemale terminal
-
24M42179 Female housingFemale housing
-
25515175335 Speedometer (CDN). Includes 25 - 26.Speedometer (CDN). Includes 25 - 26.
-
25515175336 Speedometer (US)Speedometer (US)
-
26515175929 Meter bulb (CDN)Meter bulb (CDN)
-
27517258500 WasherWasher
-
28414806500 Case holderCase holder
-
29414807100 PackingPacking
-
30M33062 Nut M5Nut M5
-
31410504200 Instrumentation bulbInstrumentation bulb
-
32415101200 Reverse knobReverse knob
-
33410107300 Switch (Heating Grip)Switch (Heating Grip)
-
34515175281 Switch coverSwitch cover
-
35410113602 Ignition switchIgnition switch
-
36570013700 Switch bootSwitch boot
-
37410112100 Face nutFace nut
-
38572150700 Ignition block switchIgnition block switch
-
39515175571 Brake switchBrake switch
-
40570151100 Plunger capPlunger cap
-
41515145900 Switch nutSwitch nut
-
42M42603 Male terminalMale terminal
-
43515151500 Cap ass'yCap ass'y
-
44M42268 Male housingMale housing
-
45415060900 HornHorn
-
46414805101 Plastic nutPlastic nut
-
47296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
48M20009 Washer 6.4Washer 6.4
-
49232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
50414991700 Blank keyBlank key
-
51293550004 Dielectric silicone, 154 gDielectric silicone, 154 g
