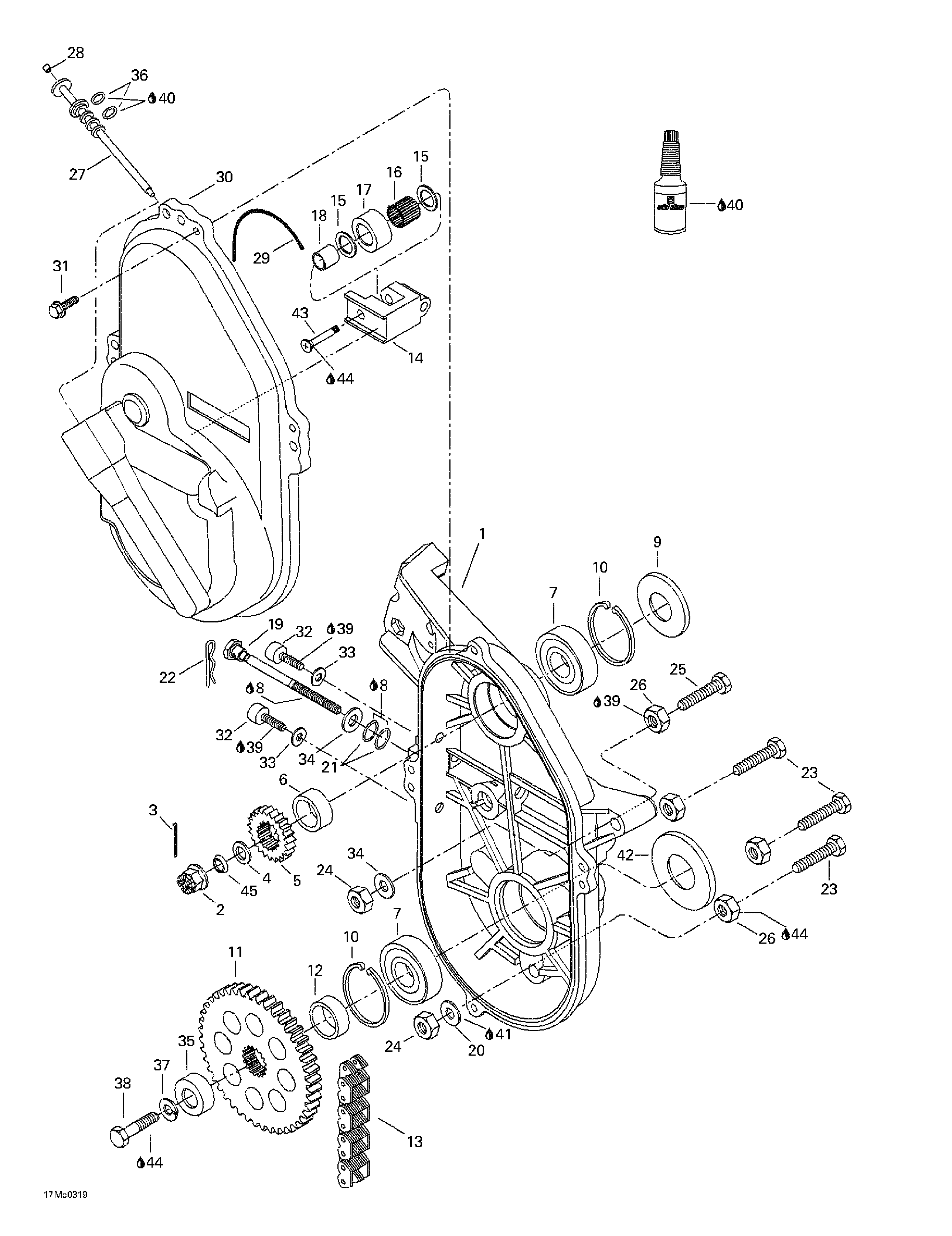

05- Chaincase для BRP Ski-Doo Skandic LT 440F - 2003
-
№АртикулНазвание
-
1504144600 ChaincaseChaincase
-
2232210414 Castellated nut M16Castellated nut M16
-
3371801300 Cotter pinCotter pin
-
4504152049 SpacerSpacer
-
5504071800 17 teeth sprocket17 teeth sprocket
-
6504093400 ShimShim
-
7504152006 Ball bearingBall bearing
-
8219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
9414882800 Oil sealOil seal
-
10371901700 Retaining ringRetaining ring
-
11504070900 44 teeth sprocket44 teeth sprocket
-
12504146400 SpacerSpacer
-
13504151882 Drive chain (70 Links)Drive chain (70 Links)
-
14504081000 Chain tensionerChain tensioner
-
15504080300 WasherWasher
-
16M31050 Needle bearingNeedle bearing
-
17414531300 RollerRoller
-
18504080200 SpacerSpacer
-
19732601311 Adjusting screwAdjusting screw
-
20M20073 WasherWasher
-
21414484400 O-RingO-Ring
-
22414575600 HairpinHairpin
-
23M40201 Hex. screwHex. screw
-
24233601416 Elastic locking nut M10Elastic locking nut M10
-
25M40043 Hex. screw M10 x 70Hex. screw M10 x 70
-
26504083800 SpacerSpacer
-
27572092700 Filler cap ass'y. Includes 27 - 28.Filler cap ass'y. Includes 27 - 28.
-
28206540490 Set Screw M4Set Screw M4
-
29414362300 O-ringO-ring
-
30080037100 Chaincase coverChaincase cover
-
31M40340 Hex. screw M6 x 30Hex. screw M6 x 30
-
32M40859 Allen screw M8 x 10Allen screw M8 x 10
-
33M20022 WasherWasher
-
34234001410 Washer 10 mmWasher 10 mm
-
35501026200 CapCap
-
36M28402 O-ringO-ring
-
37M20068 Lock washerLock washer
-
38207102544 Hex. screw M10 x 25Hex. screw M10 x 25
-
39293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
40413803300 Synthetic chaincase oil. (12 x 355 ml)Synthetic chaincase oil. (12 x 355 ml)
-
41413702700 Loctite 515, 50 mlLoctite 515, 50 ml
-
42504152076 Oil seal ass'yOil seal ass'y
-
43732601144 ScrewScrew
-
44293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
45417000900 Spring washerSpring washer
