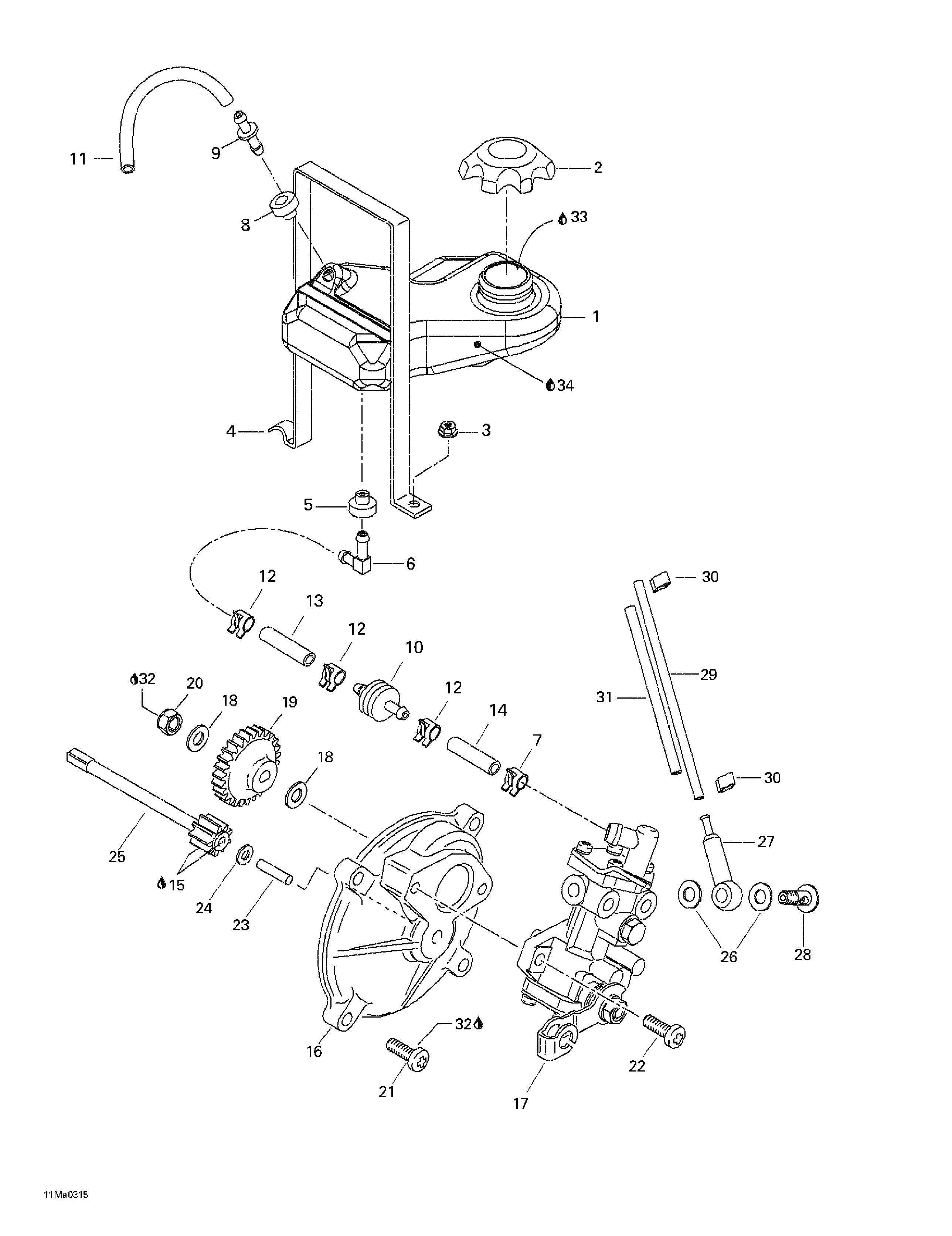

02- Oil Injection System для BRP Ski-Doo Tundra R - 2003
-
№АртикулНазвание
-
1519000046 Injection Oil TankInjection Oil Tank
-
2572039600 Oil Tank CapOil Tank Cap
-
3233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
4517263400 Strip RetainerStrip Retainer
-
5570135100 GrommetGrommet
-
6519000055 Male Connector 90 DegMale Connector 90 Deg
-
7513033029 Spring ClipSpring Clip
-
8570027700 GrommetGrommet
-
9275500398 Check ValveCheck Valve
-
10414536500 FilterFilter
-
11415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
12414655700 Spring ClipSpring Clip
-
13513033022 Oil LineOil Line
-
14513033022 Oil LineOil Line
-
15413707000 Molykote 111Molykote 111
-
16420910160 Oil Mounting FlangeOil Mounting Flange
-
17404046100 Oil Pump Ass'yOil Pump Ass'y
-
18420927945 Washer 6.2 mmWasher 6.2 mm
-
19420935930 Oil Pump Gear 27 TeethOil Pump Gear 27 Teeth
-
20232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
21420841976 Plastite Screw M5.5 x 20Plastite Screw M5.5 x 20
-
22420841971 Plastite Screw M5.5 x 16Plastite Screw M5.5 x 16
-
23420832260 Needle PinNeedle Pin
-
24420244073 Washer 4.3 mmWasher 4.3 mm
-
25420935975 9 Teeth Gear9 Teeth Gear
-
26404146600 Oil GasketOil Gasket
-
27420956010 Valve ass'yValve ass'y
-
28404146800 Banjo-Screw M6 x 16Banjo-Screw M6 x 16
-
30420853840 ClampClamp
-
32293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
33413803100 Blizzard Oil (12 x 500 ml)Blizzard Oil (12 x 500 ml)
-
413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
413803000 Injection Oil (3 x 4 Liter)Injection Oil (3 x 4 Liter)
-
413803200 Injection Oil (205 Liter)Injection Oil (205 Liter)
-
413711000 Synthetic Injection Oil (3 x 4 Liter)Synthetic Injection Oil (3 x 4 Liter)
-
413710700 Synthetic Injection Oil (205 Liter)Synthetic Injection Oil (205 Liter)
-
413710500 Synthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-SSynthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-S
-
34296000309 Sealant Silicone, ClearSealant Silicone, Clear
