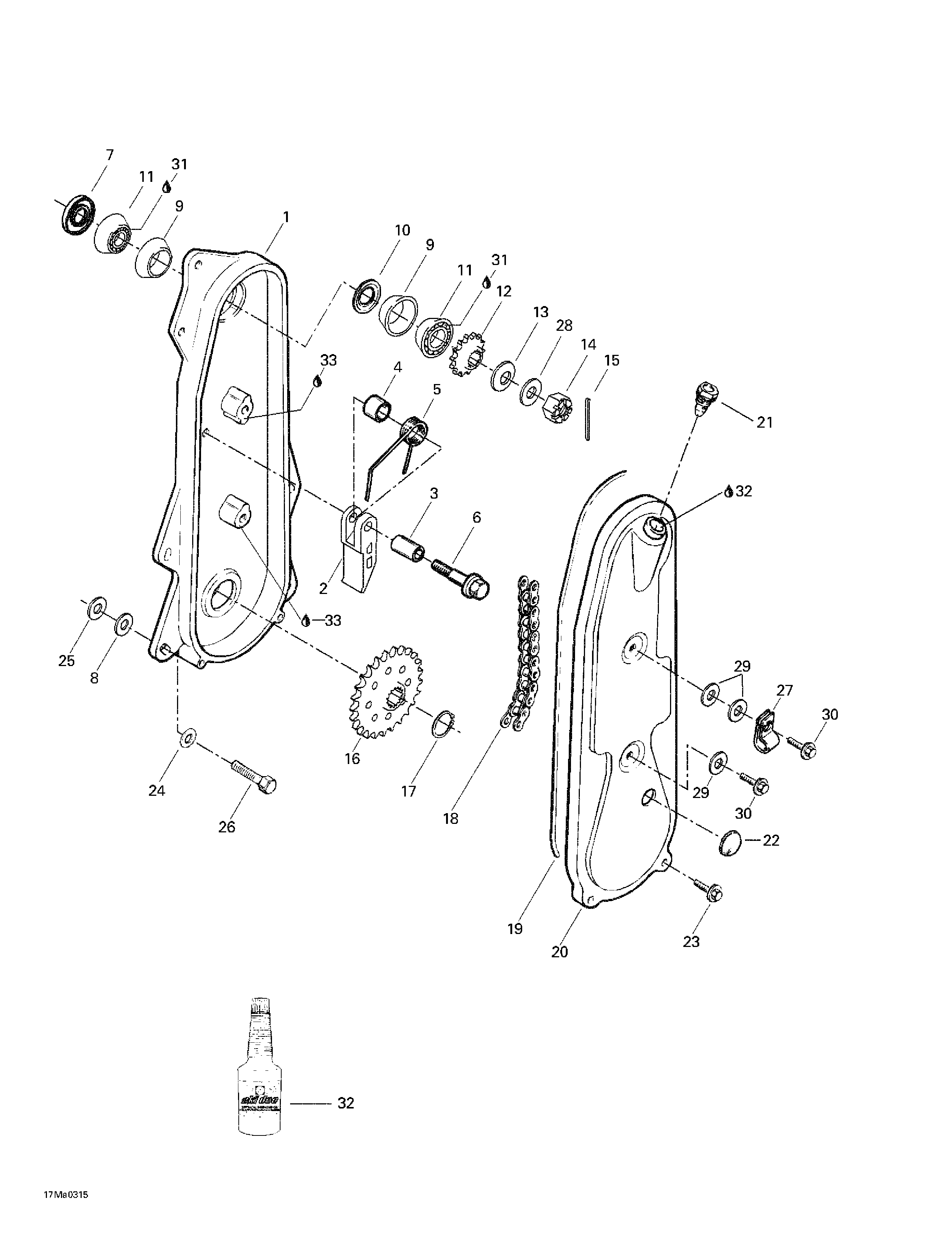

05- Chaincase для BRP Ski-Doo Tundra R - 2003
-
№АртикулНазвание
-
1504088000 ChaincaseChaincase
-
2572041600 Chain TensionerChain Tensioner
-
3504051600 SpacerSpacer
-
4504018200 SpacerSpacer
-
5414130600 SpringSpring
-
6210264080 Forming Hex. Screw M6 x 40Forming Hex. Screw M6 x 40
-
7406300600 Oil SealOil Seal
-
8504073700 WasherWasher
-
9405000300 Bearing CupBearing Cup
-
10504005800 Oil DelectorOil Delector
-
11405000400 Conical Ball BearingConical Ball Bearing
-
12504088500 14 Teeth Single Sprocket14 Teeth Single Sprocket
-
13414823700 WasherWasher
-
14232220413 Castle Nut M12Castle Nut M12
-
15371800800 Cotter PinCotter Pin
-
16504088600 25 Teeth Single Sprocket25 Teeth Single Sprocket
-
17371904900 Circlip (Exterior)Circlip (Exterior)
-
18412106300 Driving Chain, Single Pitch, 62 LinksDriving Chain, Single Pitch, 62 Links
-
19570045900 SealSeal
-
20504088100 Chaincase CoverChaincase Cover
-
21572040600 BreatherBreather
-
22570040600 Chaincase PlugChaincase Plug
-
23210261680 Forming Hex. Screw M6 x 16Forming Hex. Screw M6 x 16
-
24506151245 WasherWasher
-
25250200001 Flat Washer 7/16Flat Washer 7/16
-
26207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
27414351600 ClipClip
-
28504049500 Special WasherSpecial Washer
-
29234062410 Flat Washer 6 mmFlat Washer 6 mm
-
30210262080 Forming Hex. Screw M6 x 20Forming Hex. Screw M6 x 20
-
31219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
32413803300 Synthetic Chaicase Oil. (12 x 355 ml)Synthetic Chaicase Oil. (12 x 355 ml)
-
33293800066 Sealant 5900, Loctite 20166,. 300mlSealant 5900, Loctite 20166,. 300ml
